3 System overview
An extinguishing system consists of the following components:
–
Fire detector for automatic activation of extinguishing.
–
Manual Release button for manual activation of extinguishing.
–
Emergency hold button to temporary stop the extinguishing or abort button to
cancel the initiated extinguishing release as long as activated time is running.
–
Control unit for evaluating, displaying and operating all functions of an
extinguishing area.
–
Alarm horn and illuminated warning panel for on-site alarm notification.
–
Remote transmission facility for transmitting alarms and faults.
–
Control device for closing doors and fire protection flaps and shutting down of
ventilation.
–
Releasing elements for triggering the valves for activation of extinguishing.
–
Devices to report the flooding and the loss of extinguishing agent.

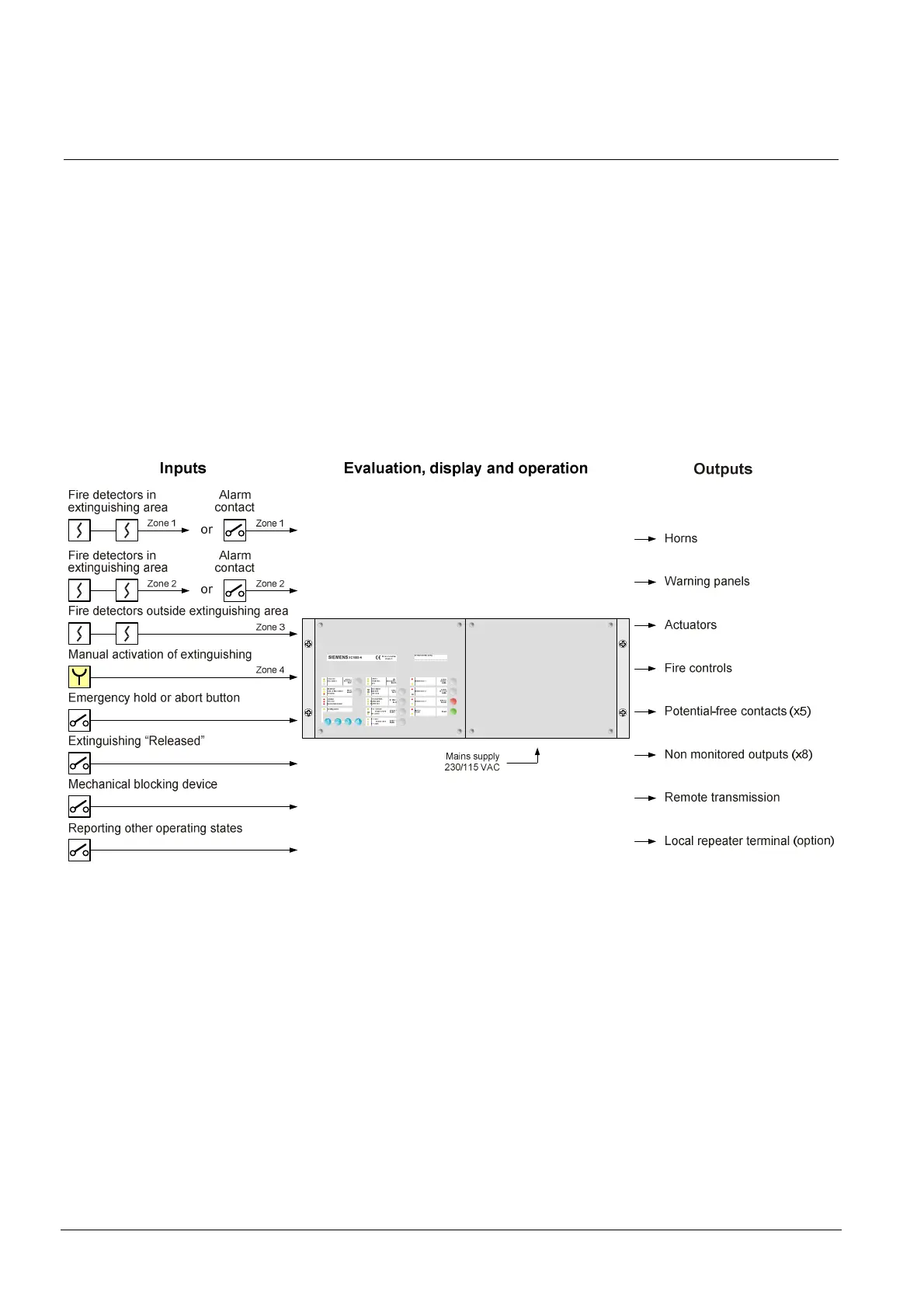

Fig. 1 Structure of the extinguishing system
Extinguishing control unit
The XC1003-A extinguishing control unit is used for displaying, operating and
monitoring the functions of an extinguishing area and its immediate environs.
All detectors, alarm horn, illuminated warning panel, monitoring devices and
controllers are connected to the extinguishing control unit. If a detector triggers an
alarm, it is transmitted to the extinguishing control unit. At the extinguishing control
unit the decision is made how the alarm is to be processed. The same applies to
faults. The processing of alarms and faults is different depending on the
configuration of the system.
