SIGLENT

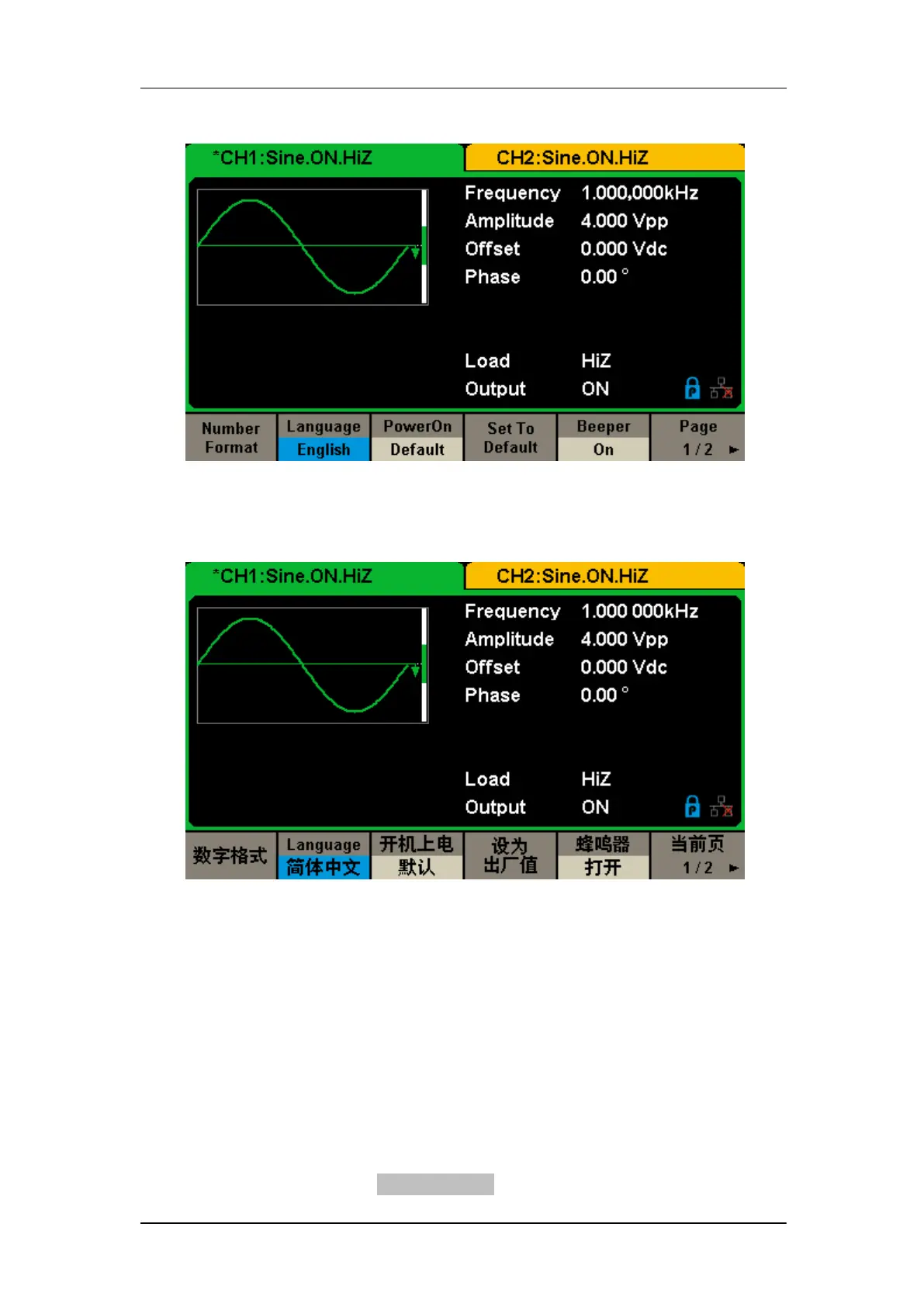

90 SDG1000X User Manual

English Interface

Figure 2-48 English Interface

Chinese Interface

Figure 2-49 Chinese Interface

3. Power On

Choose the SDG1000X‘s setting when the generator is powered on. Two

choices are available: the default setting and the last settings set when the unit

was last powered down. Once selected, the setting will be applied when the

instrument is powered on. This setting is stored in non-volatile memory and

will not be influenced by the Set To Default operation.
