116 SDG1000X User Manual
2.13.7 Sync Output
The generator provides Sync output through the [Aux In/Out] connector on the
rear panel. When the synchronization is on, the port can output a CMOS
signal with the same frequency as basic waveforms (except Noise and DC),
arbitrary waveforms, and modulated waveforms (except external modulation).

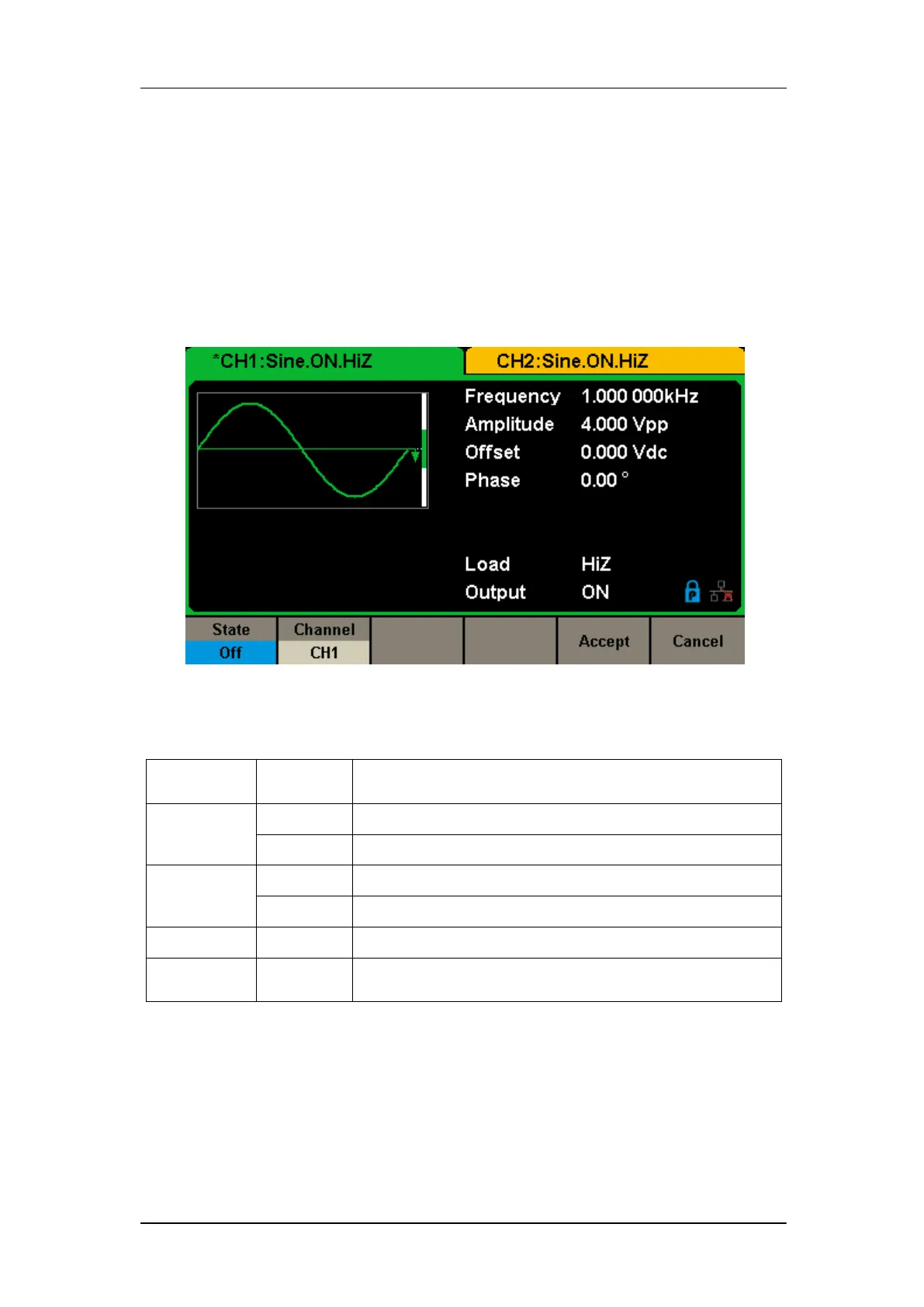

Figure 2-69 Sync Output Interface
Table 2-40 Menu Explanations of Sync Output
Function
Menu
Settings
Explanation
State
Off
Close the sync output
On
Open the sync output
Channel
CH1
Set the sync signal of CH1.
CH2
Set the sync signal of CH2.
Accept
Save the current settings and return to the Utility menu.
Cancel
Give up the current settings and return to the Utility
menu.
Sync Signals of Different Waveforms：
Basic Waveform and Arbitrary Waveform
1) When the frequency of the waveform is less than or equal to 10MHz, the
sync signal is a Pulse with about 50ns pulse width and the same
