SIGLENT

18 SDG1000X User Manual

2.1 To Set Sine Waveform

Press Waveforms key to select the waveform function and then press the Sine

softkey. The sine waveform parameters are set by using the sine operation

menu.

The parameters available for sine waveforms include frequency/period,

amplitude/high level, offset/low level and phase. Different sine signals can be

generated by setting these parameters. As shown in Figure 2-1, in the soft key

menu, select Frequency. The frequency parameter area is highlighted in the

parameter display window, and users can set the frequency value here.

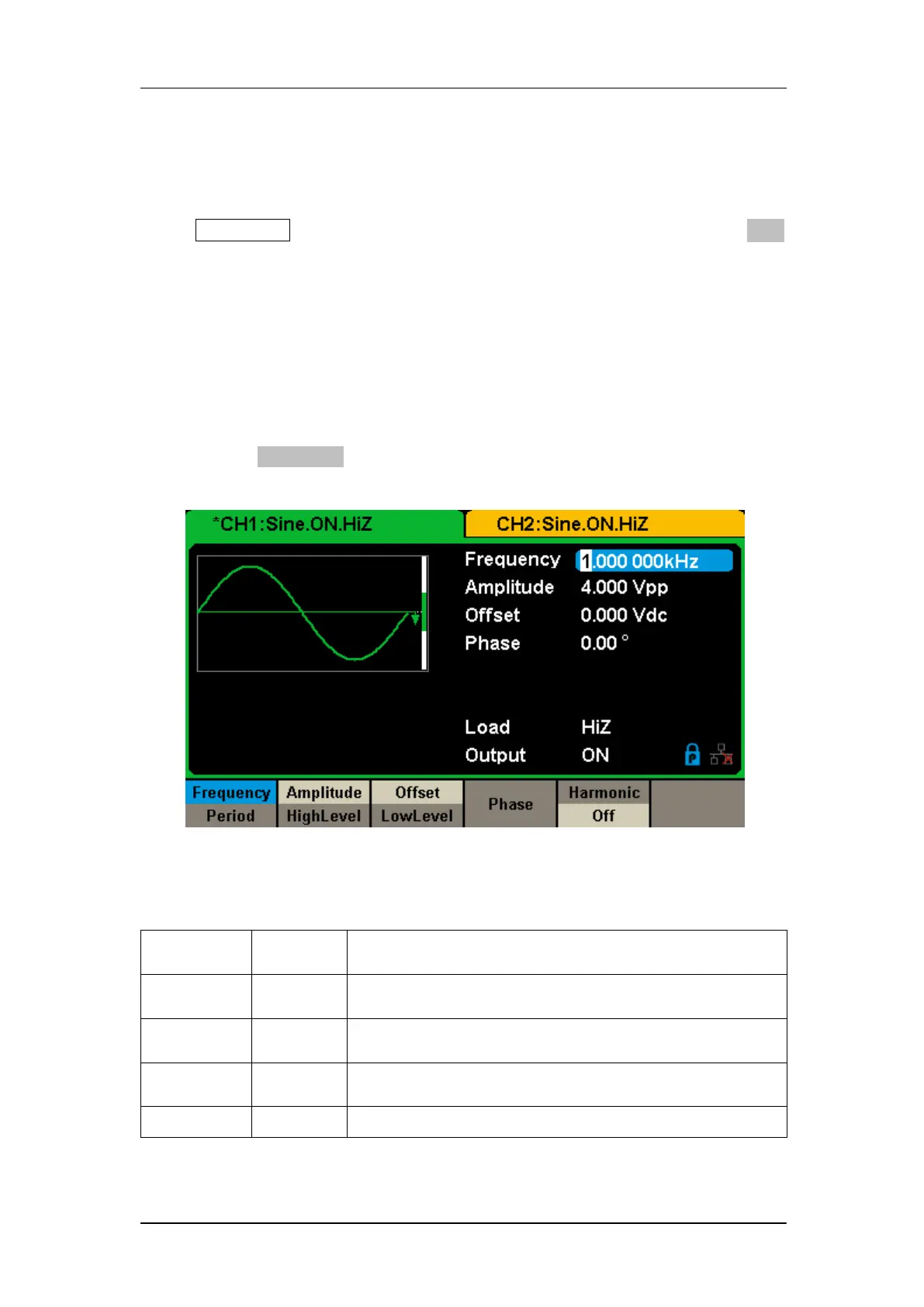

Figure 2-1 Sine Parameters Display Interface

Table2-1 Menu Explanations of Sine Waveform

Function

Settings

Explanations

Frequency/

Period

Set the signal frequency or period;

The current parameter will be switched at a second press.

Amplitude/

HighLevel

Set the signal amplitude or high level;

The current parameter will be switched at a second press.

Offset/

LowLevel

Set the signal offset or low level;

The current parameter will be switched at a second press.

Phase

Set the phase of the signal.
