SIGLENT
36 SDG1000X User Manual
2.7 To Set Arbitrary Waveform
The Arb signal consists of two types: the system‘s built-in waveforms and the
user-defined waveforms. Built-in waveforms are stored in the internal
non-volatile memory. Users may also edit the arbitrary waveform with 16K
data points, namely 16kpts.
Choose Waveforms → Page 1/2 → Arb. The parameters include
frequency/period, amplitude/high level, offset/low level and phase.

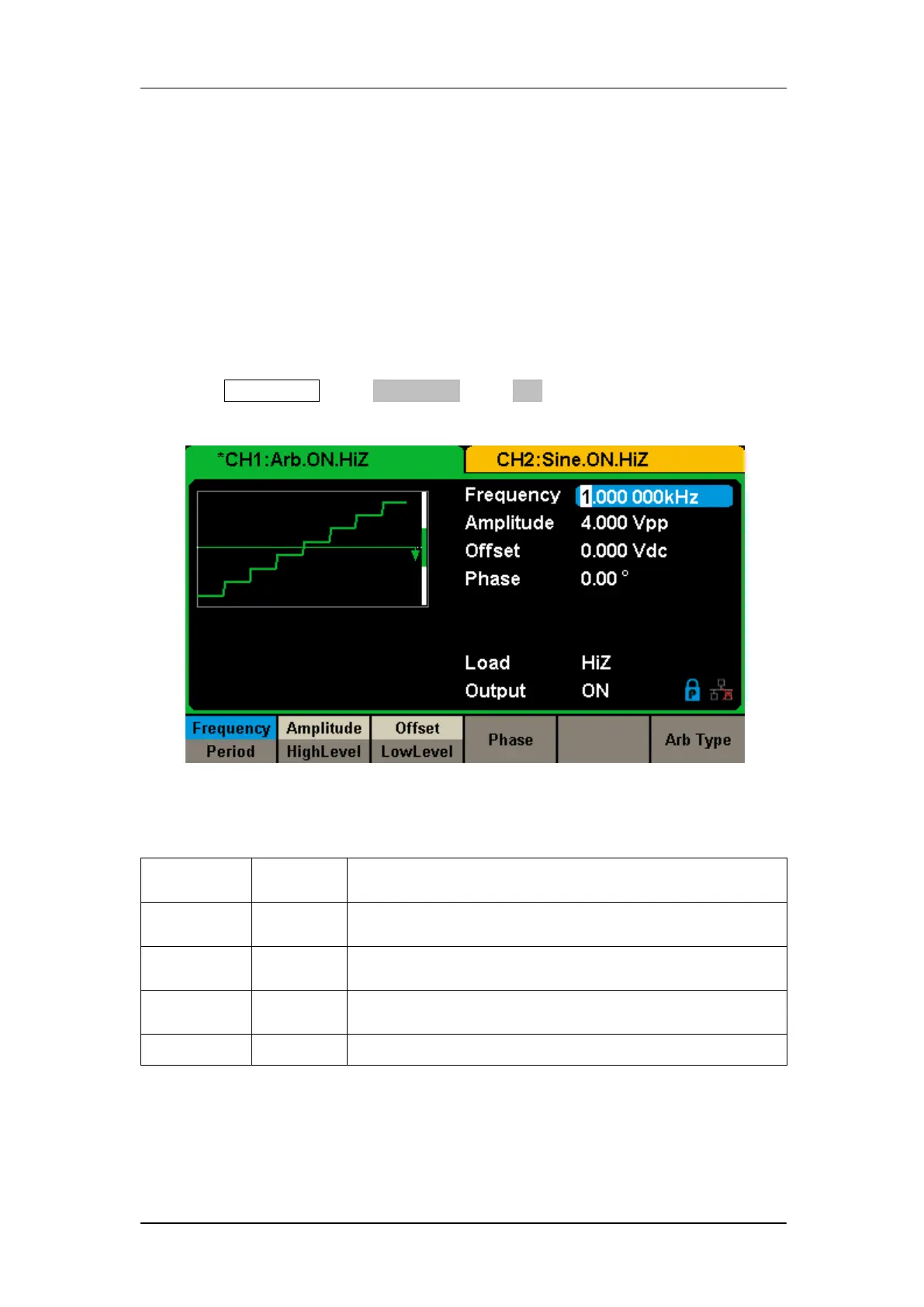

Figure 2-17 Arb Parameters Display Interface (DDS)
Table 2-6 Menu Explanations of Arb Waveform (Page 1/2)
Set the signal frequency or period;
The current parameter will be switched at a second press.
Set the signal amplitude or high level;
The current parameter will be switched at a second press.
Set the signal offset or low level;
The current parameter will be switched at a second press.
Set the phase of the signal.
Note:
The methods of setting the parameters of arbitrary signal are similar to sine
waveform function.
To Next Page
