To select the built-in Arbitrary Waveform
There are plenty of built-in Arbitrary Waveforms and user-defined Arbitrary
Waveforms inside the generator. To select one of them, follow the instructions
below.
1. To Select the Built-in Waveform
Choose Waveforms → Page 1/2 → Arb → Arb Type → Built-In to enter the
following interface, as shown in Figure 2-18.

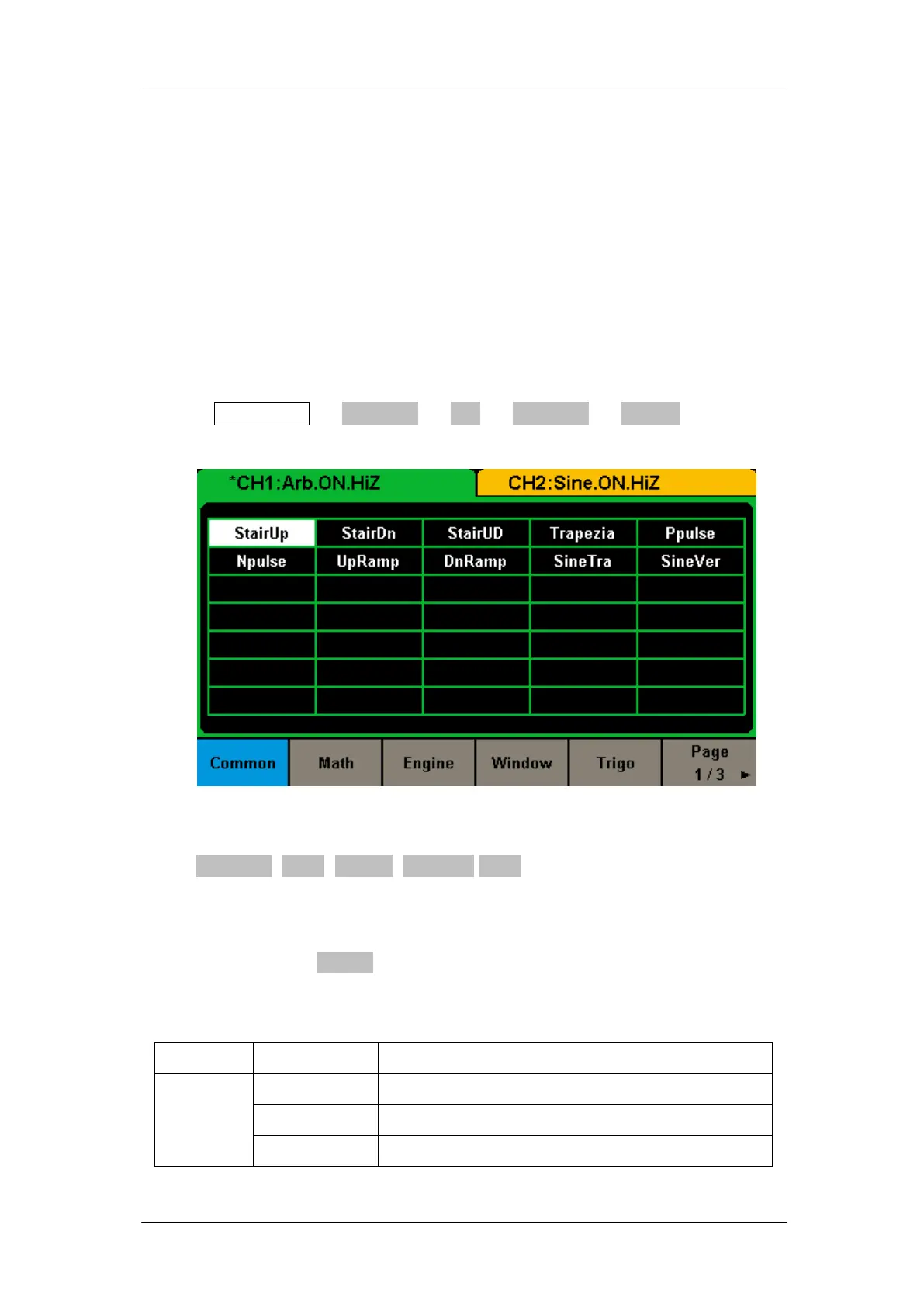

Figure 2-18 Built-in Arbitrary Waveforms
Press Common, Math, Engine, Window, Trigo or other menus to switch to the
desired category (the selected category in the menu bar is highlighted), then
rotate the knob to choose the desired waveform (the selected waveform is
highlighted). Select Accept or press the knob to recall the corresponding
waveform.
Table 2-7 Built-in Waveforms
Stair-up and down waveform
To Next Page
