SIGLENT
100 SDG1000X User Manual

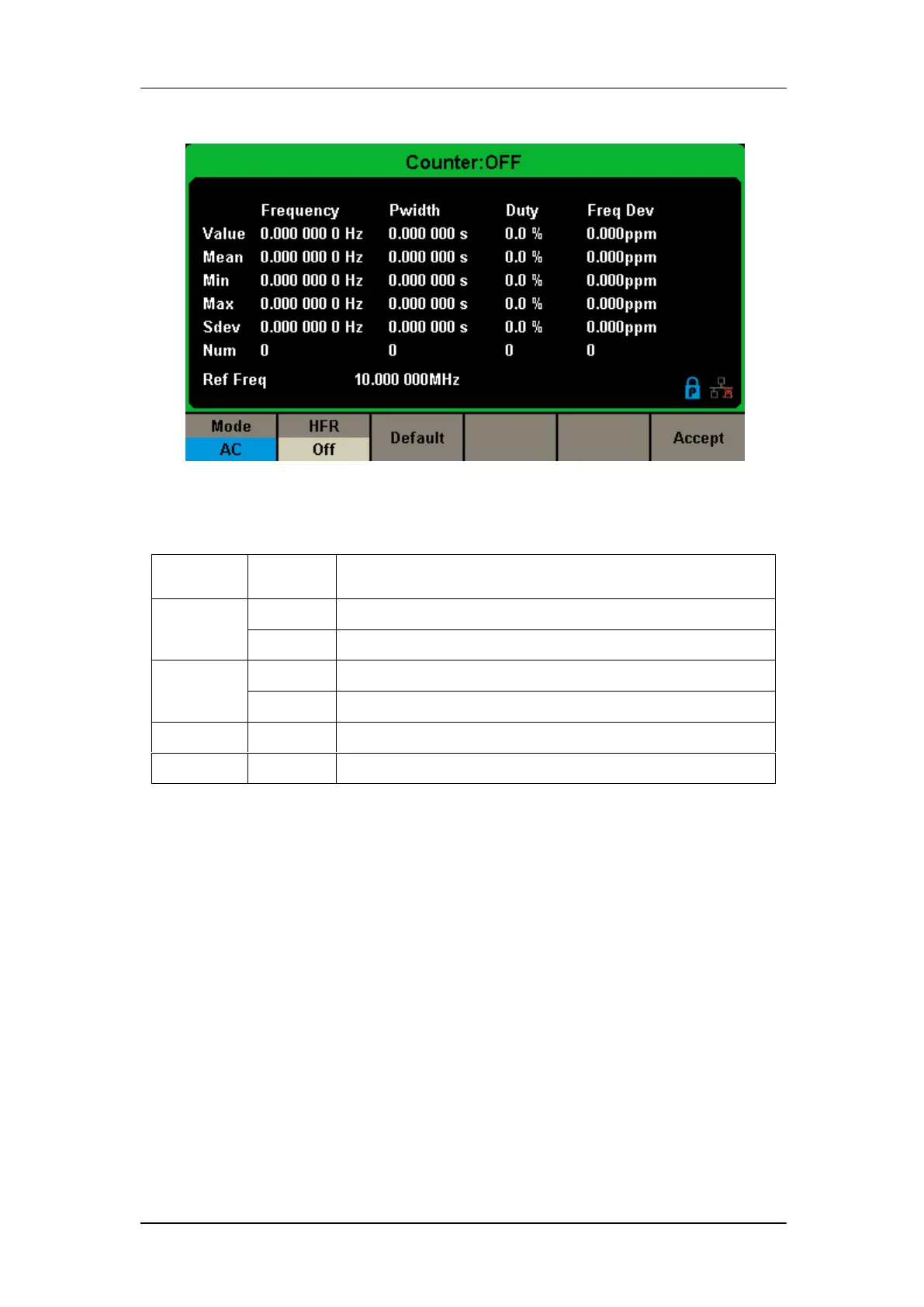

Figure 2-59 Counter Setup Interface
Table 2-36 Menu Explanations of Setup
Set the coupling mode to DC
Set the coupling mode to AC
Open the high frequency rejection filter.
Close the high frequency rejection filter.
Set the frequency counter settings to default.
Save the current settings and return to the previous menu.
1. To Select the Parameters to be measured
The frequency counter on the SDG1000X can measure parameters including
frequency, period, duty, positive pulse width and negative pulse width.
2. Reference Frequency
System will calculate the deviation between the measured frequency and the
reference frequency automatically.
3. Trigger Level
Sets the trigger level of the measurement system. The system triggers and
obtains the measurement readings when the input signal reaches the
