User Interface
The SDG1000X can only display parameters and waveform information for
one channel at a time. The picture below shows the interface when CH1
chooses AM modulation of a sine waveform. The information displayed may
vary depending on the function selected.

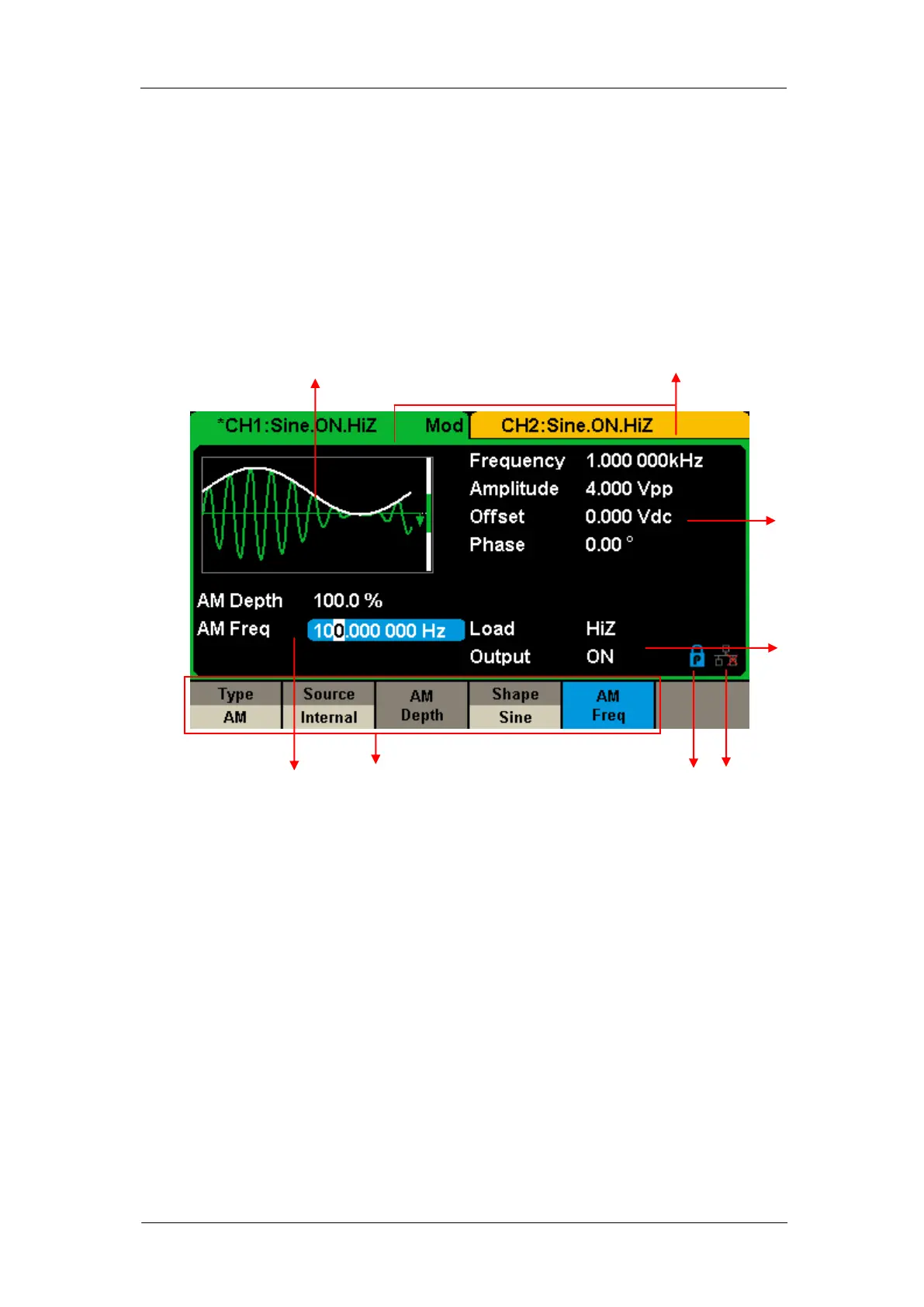

Figure 1-4 User Interface
1. Waveform Display Area
Displays the currently selected waveform of each channel.
2. Channel Status Bar
Indicates the selected status and output configuration of the channels.
3. Basic Waveform Parameters Area
Shows the current waveform‘s parameters of each channel. Press Parameter
and select the corresponding softkey to highlight the parameter to configure.
Then use number keys or knob to change the parameter value.
4
3
8 7 6 5
1 2
