SDG1000X User Manual 11

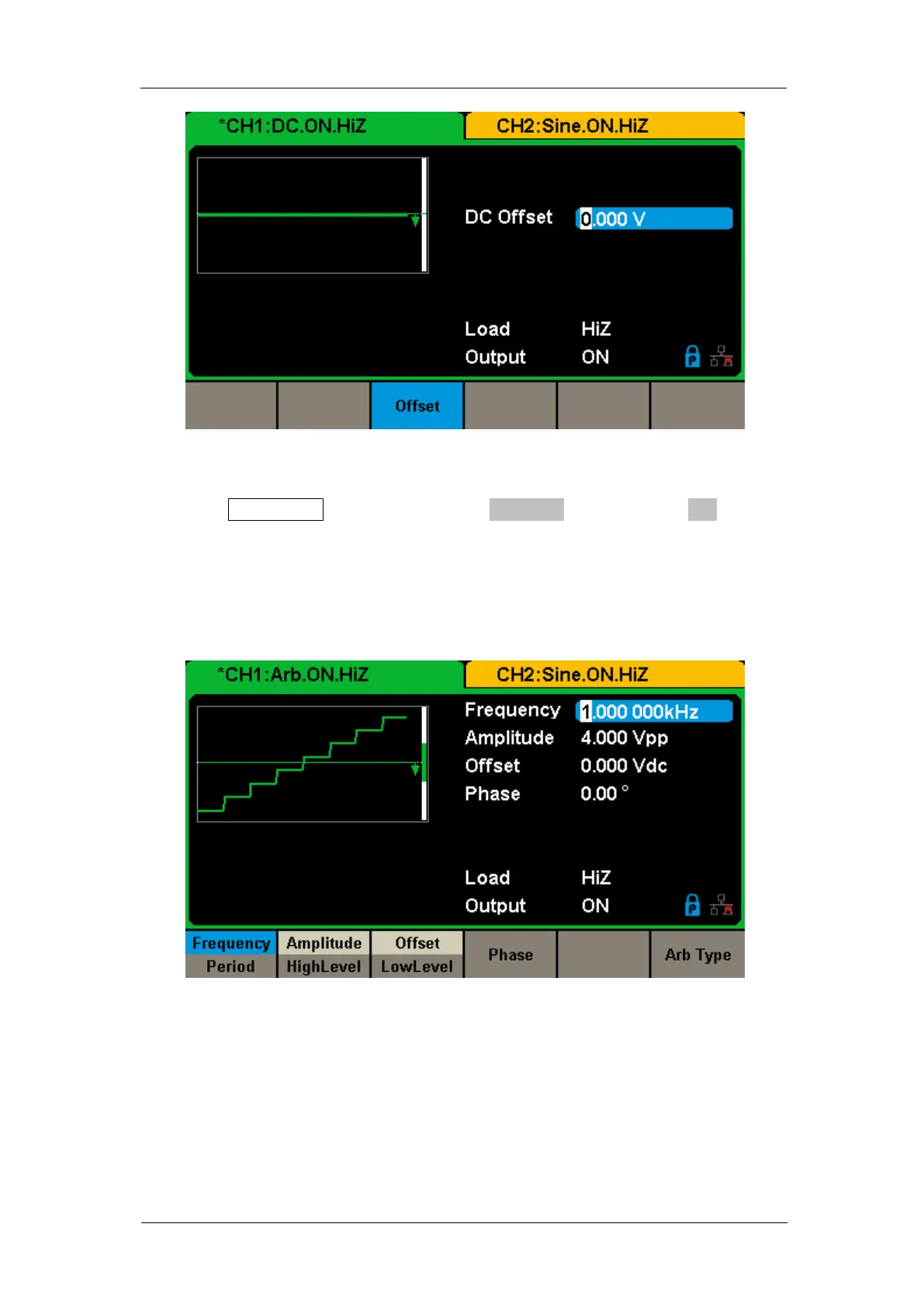

Figure 1-11 DC Display Interface
7. Press Waveforms key and then press Page 1/2, last press the Arb softkey.
The generator can generate repeatable arbitrary waveforms with 16K
points and frequencies up to 6MHz. By setting Frequency/Period,
Amplitude/High level, Offset/Low level and Phase, an arbitrary waveform
with different parameters can be generated.
Figure 1-12 Arbitrary Waveform Display Interface
