SDG1000X User Manual 65

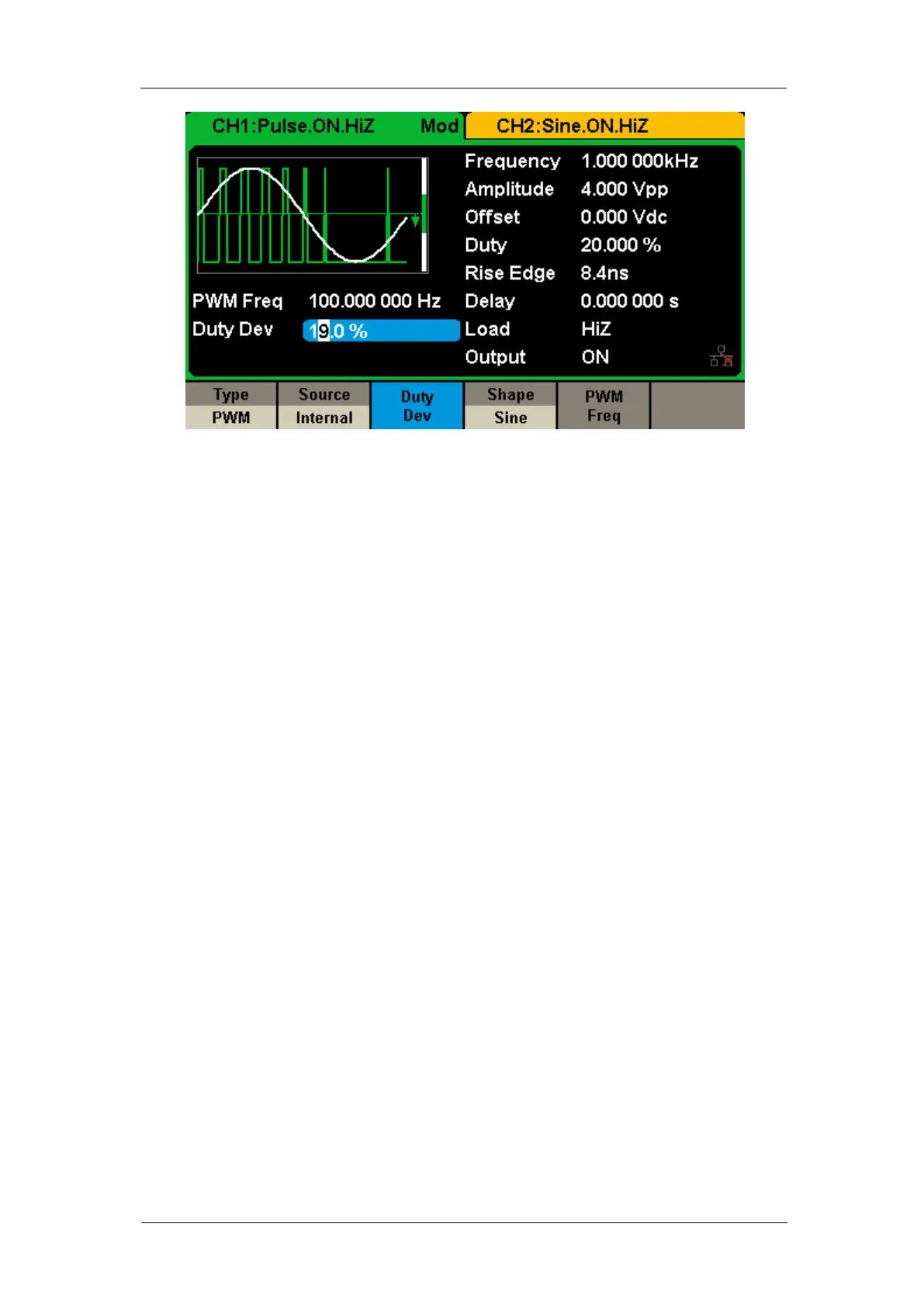

Figure 2-30 Duty Deviation Setting Interface
 The duty deviation cannot exceed the current pulse duty cycle.
 The duty deviation is limited by the minimum duty cycle and current edge
time setting.
 Duty deviation and width deviation are correlative. Once a parameter is
changed, the other will be automatically changed.
Note:
The methods of setting other parameters of PWM are similar to AM.
