88 SDG1000X User Manual

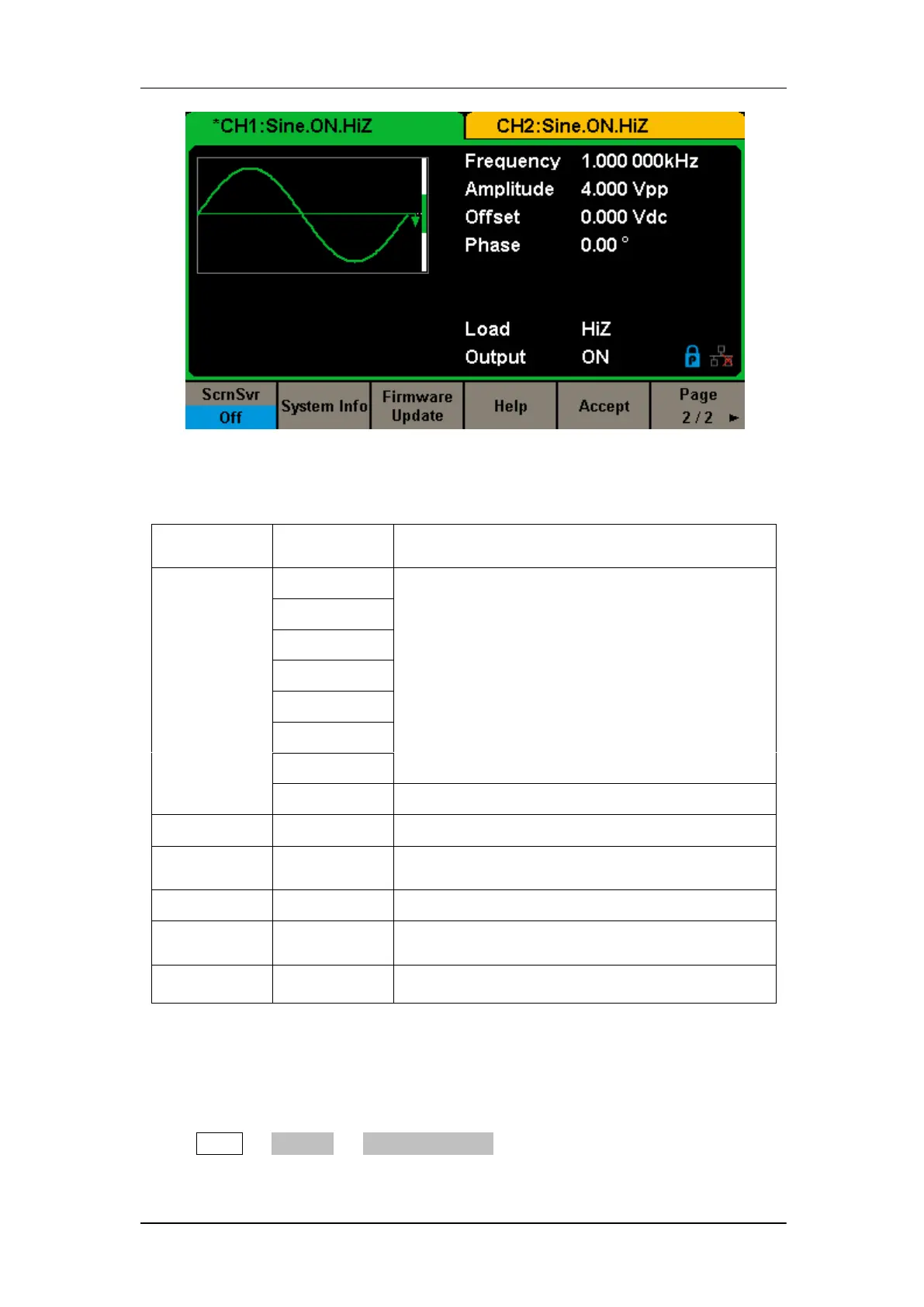

Figure 2-46 System Setup Interface (Page 2/2)

Table 2-29 Menu Explanations of System Setup (Page 2/2)

Function

Settings

Explanation

ScrnSvr

1min

Enable or disable the screen saver.

5min

15min

30min

1hour

2hour

5hour

Off

Disable the screen saver.

System Info

View the system information

Firmware

Update

Update the firmware by the U-disk.

Help

View the help information.

Save the current settings and return to the Utility

menu.

Page

2/2

Return to the previous page.

1. Number Format

Press Utility → System → Number Format, to enter the following interface.
