SIGLENT

SDS1000X User Manual 123

Note: Waveform intensity adjustment affects analog channel waveforms only (not math

waveforms, reference waveforms, digital waveforms, etc.).

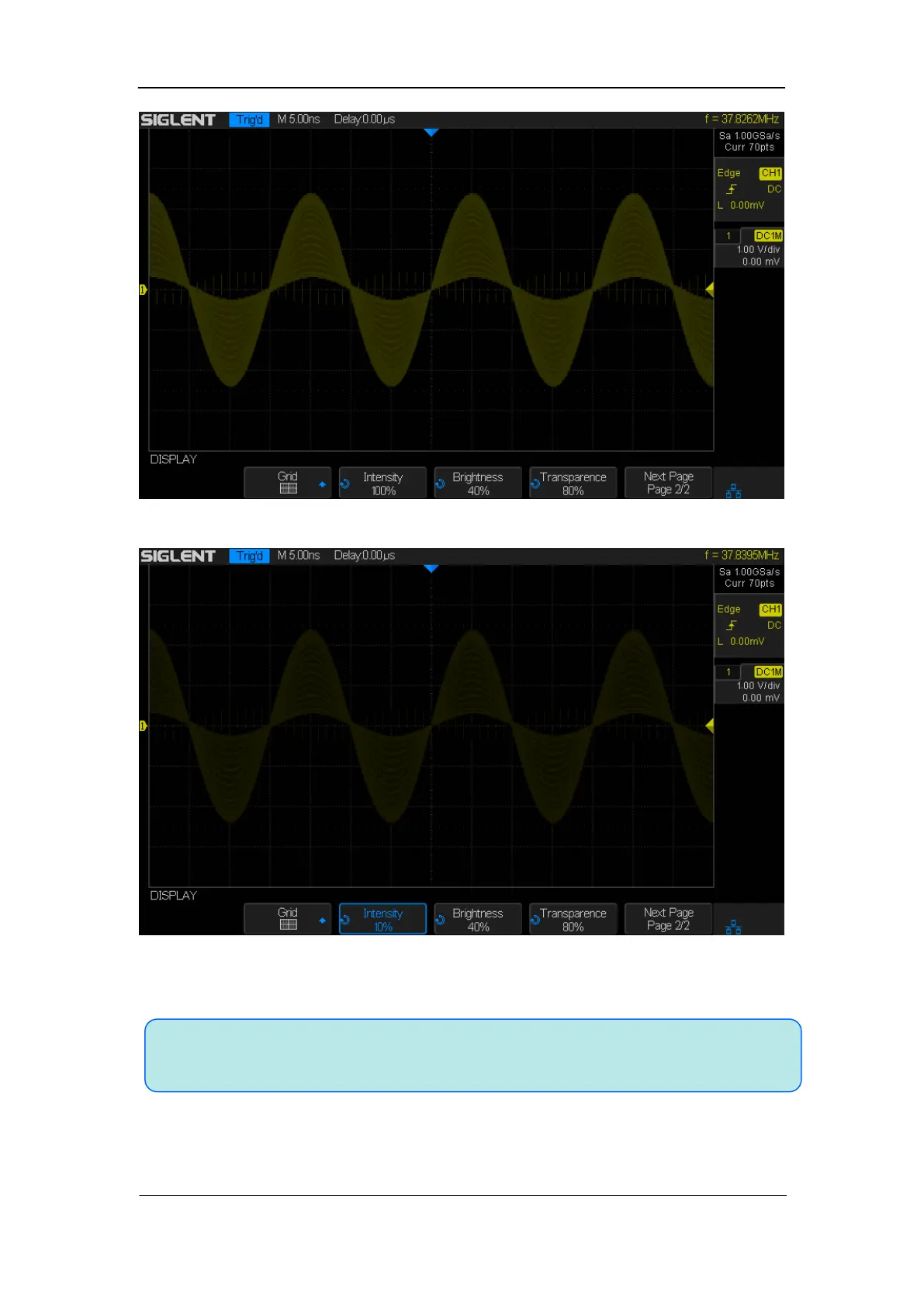

Figure 71 Intensity Set to 100%

Figure 72 Intensity Set to 10%
