SIGLENT
SDS1000X User Manual 77
> (Greater Than) – when the pattern is present for greater than a time value. The
trigger occurs
>< (In Range) – when the pattern is present for a time within a range of values.
<> (Out of Range) – when the pattern is present for a time outside of range of
values.
7. Press the Holdoff Close softkey to turn on the Holdoff function; then turn the
Universal Knob to select the desired value.

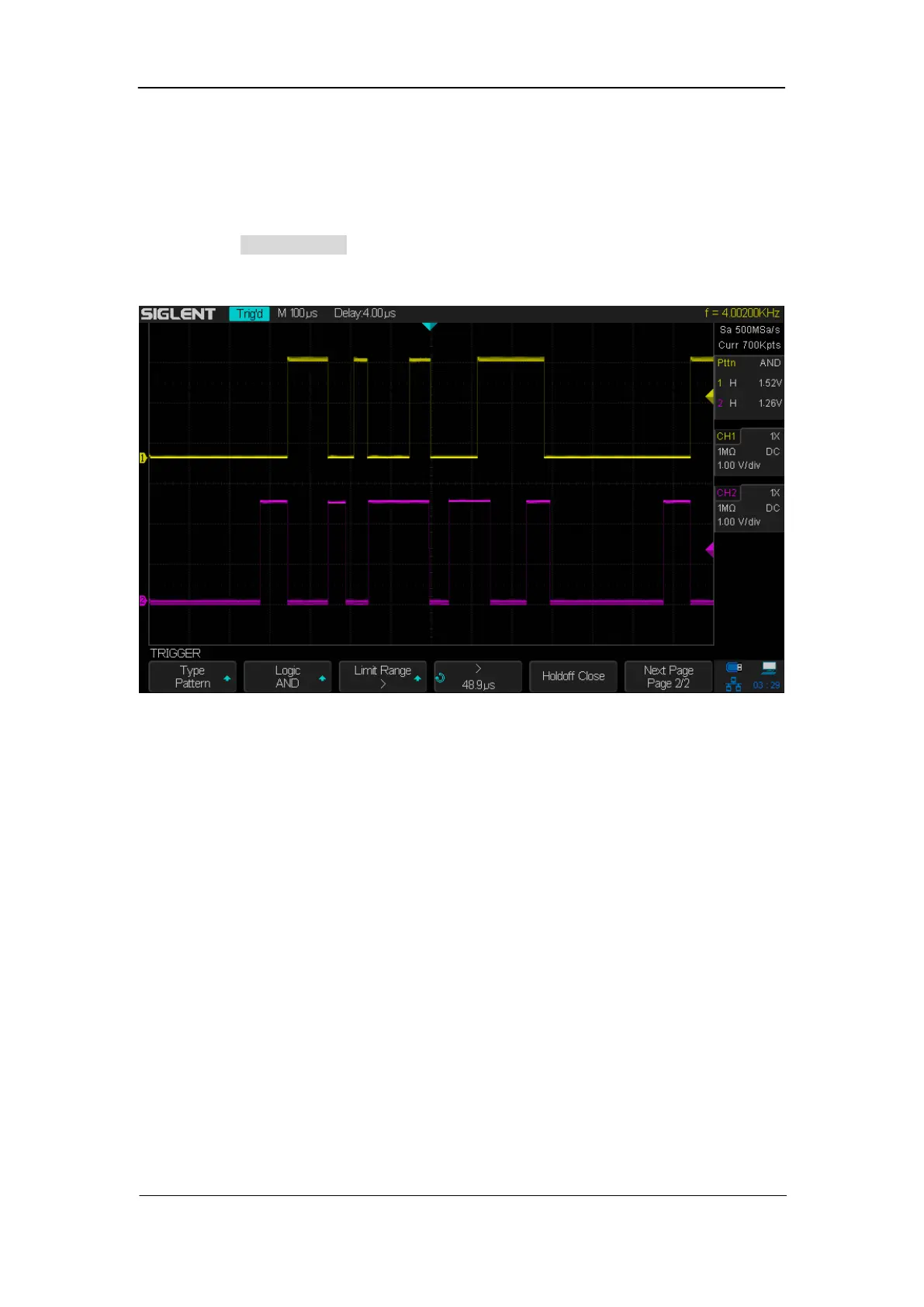

Figure 33 Pattern Trigger
