Figure 17 BURST- Middle Recording Length, loses glitch detail
Figure 18 BURST - Short Recording Length, aliasing
GLITCH

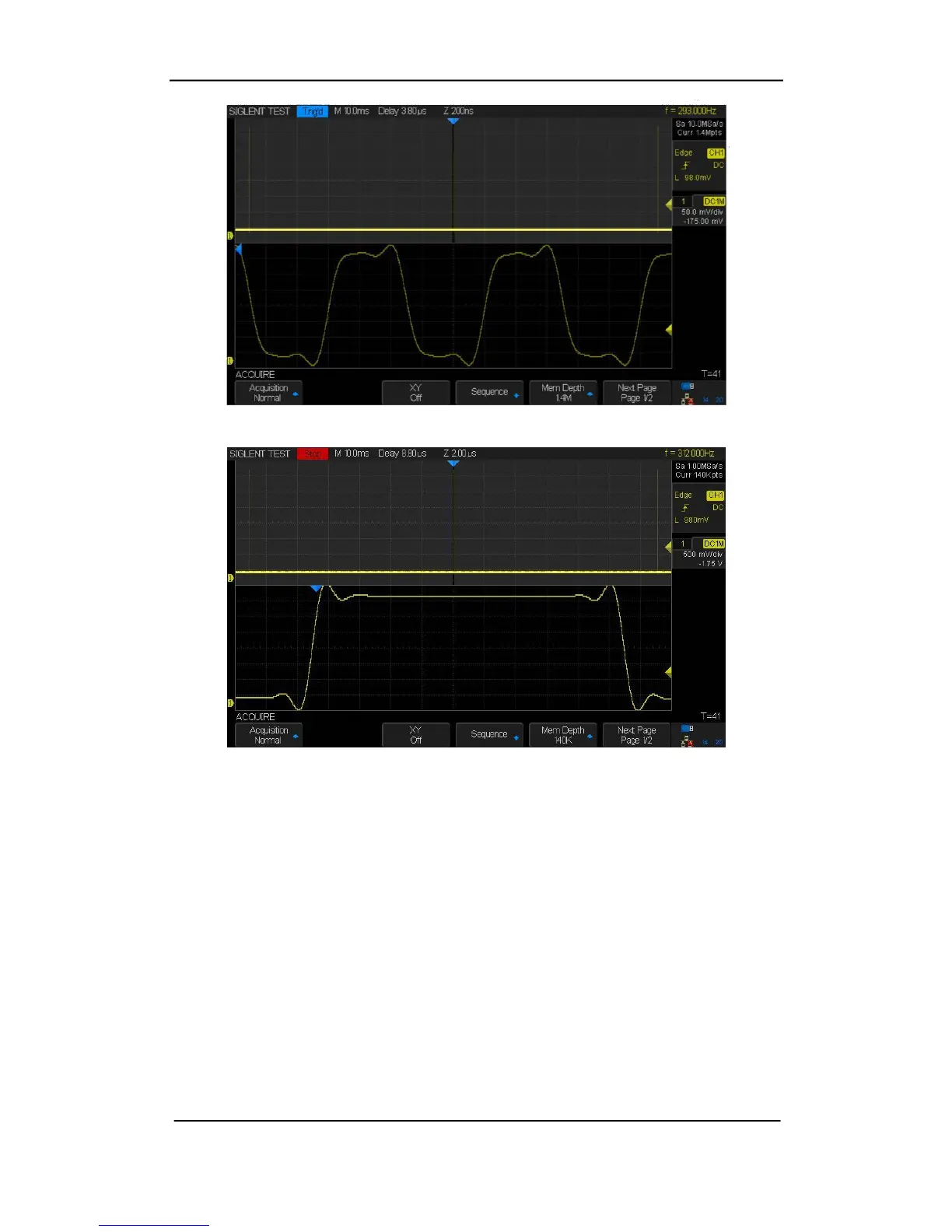

In this 1 Mbps pseudo-noise sequence there are glitches which typically have
a pulse width of 60 ns and amplitude of 1.6 V, appearing every 15 ms.
Please note that probe loading can affect the glitch parameters because of
the high source impedance. The resulting waveform could appear different
from that shown below.
