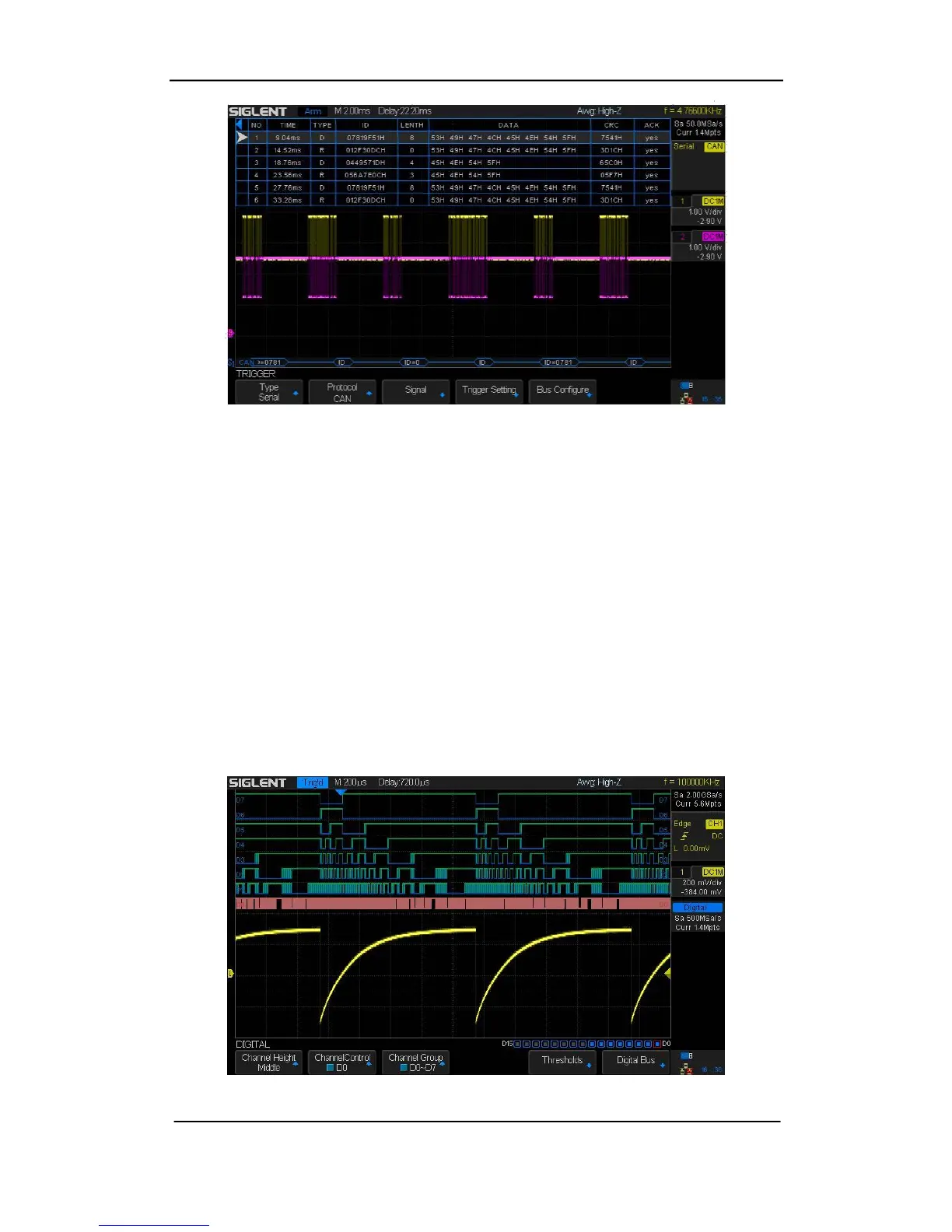

Figure 36 CAN Signal
PASS/FAIL Demonstration
Compatible with SDS2000X PASS/FAIL output. When a “failure” occurs, the
onboard LED flickers once.
MSO Demonstration
Compatible with SDS2000X and SPL2016, can be used with other SIGLENT
MSO models.
Selectable onboard 1.25 MHz sine wave or external input analog signal
Buffered analog signal output through BNC connector
Selectable onboard ADC sampling frequency: 1 MSPS, 2.5 MSPS, 25 MSPS
Figure 37 MSO Demonstration – Use External Analog Signal
19 STB3 User Manual
