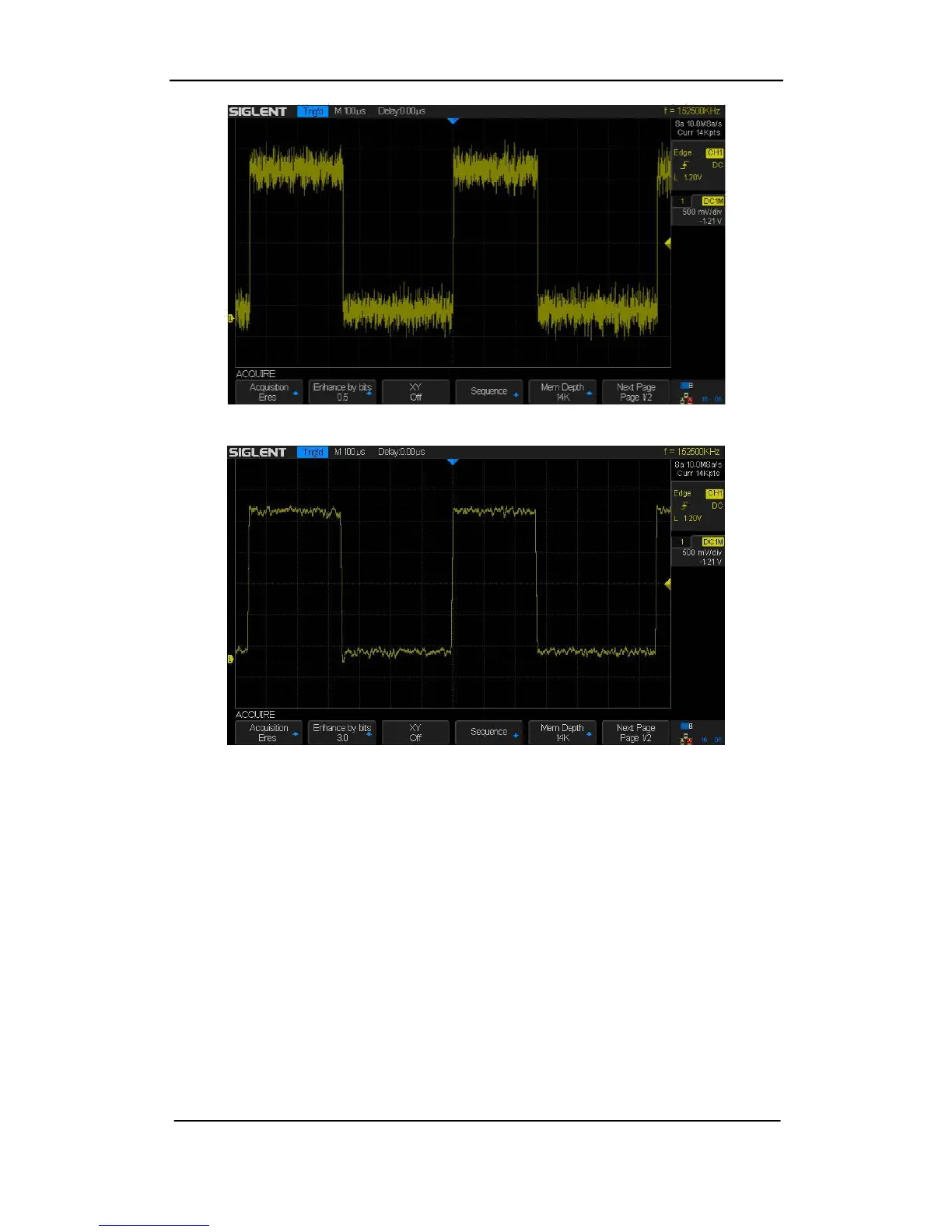

Figure 28 Noisy PWM – ERES 0.5 bit
Figure 29 Noisy PWM – ERES 3.0 bit
Signal for Demonstrating SPO
A specially designed signal for demonstrating Siglent’s Super Phosphor
Ocilloscope (SPO). Please note, proper trigger setup is required to obtain a
stable display on this complex waveform, as shown below.
14 STB3 User Manual
