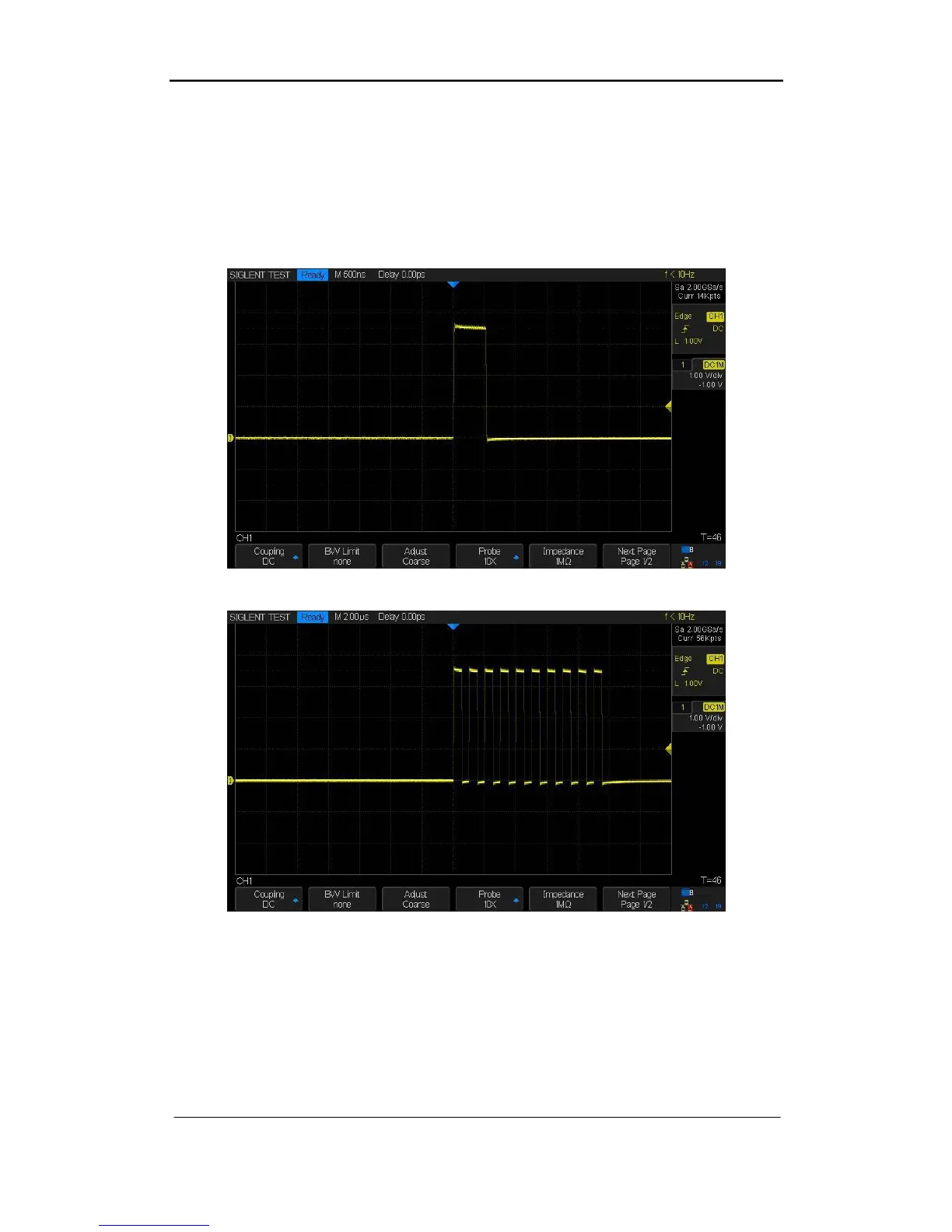

Burst Signal
Pulse Width: 500 ns
NO. of Pulses: 1, 10, 100
Manually Triggered
Figure 11 Burst Signal – 1 Pulse
Figure 12 Burst Signal - 10 Pulses
6 STB3 User Manual
