SIGLENT STB3 User Manual

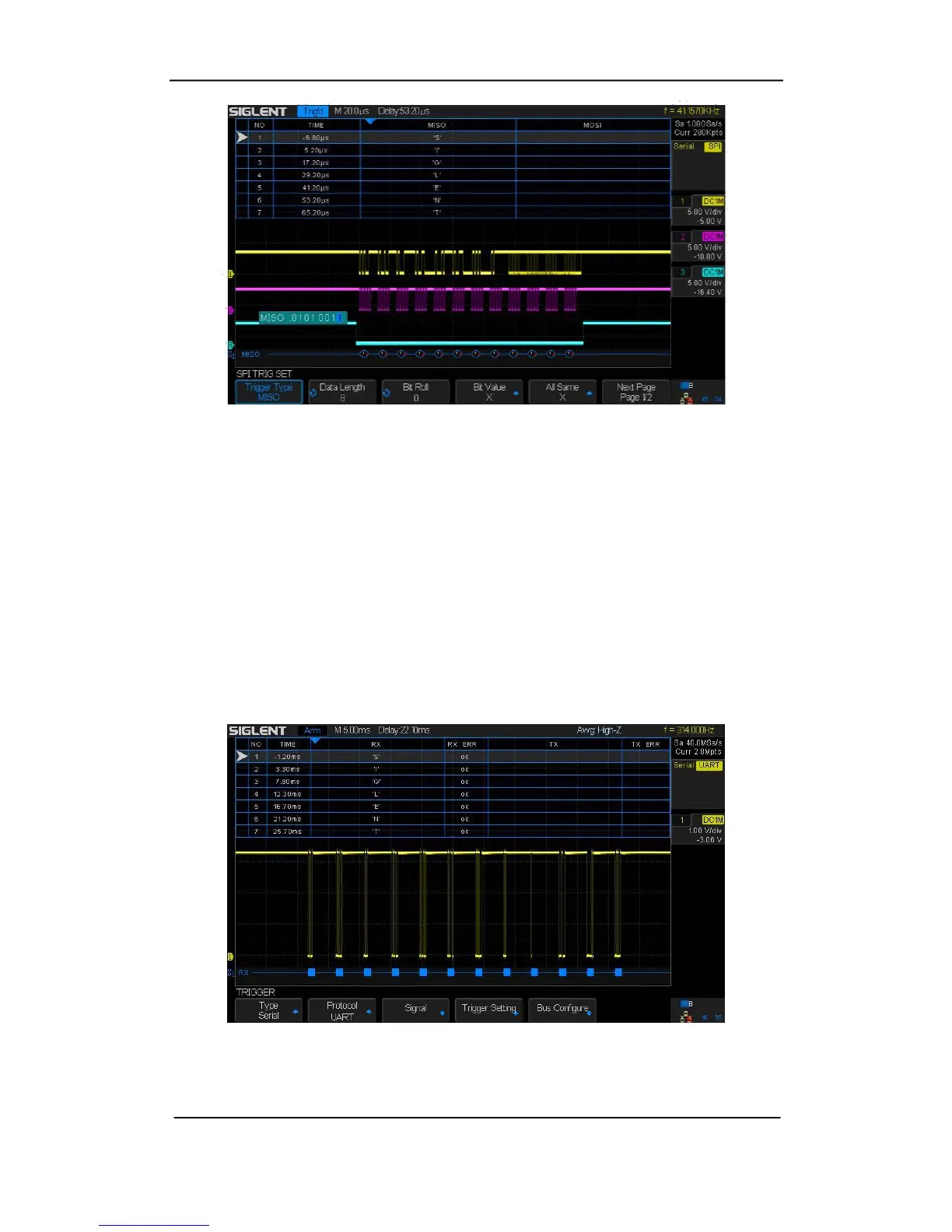

Figure 33 SPI Signal
UART

9.6 kbps baud rate



Idle high



8-bit data width



MSB first



Odd parity bit



2-bit stop bit

As with the I2C signal, the UART signal has 12bytes data in each transfer,
which is 96'h53_49_47_4C_45_4E_54_5F_XX_XX_XX_XX.
Figure 34 UART Signal
LIN
17 STB3 User Manual

SIGLENT STB3 Specifications

General

Channels	2
Output Current Range	0 to 3 A
Display	LCD
Communication Interface	USB
Power Supply	100 V to 240 V
