Pseudo-Noise Sequence

A 1 Mbps pseudo-noise sequence


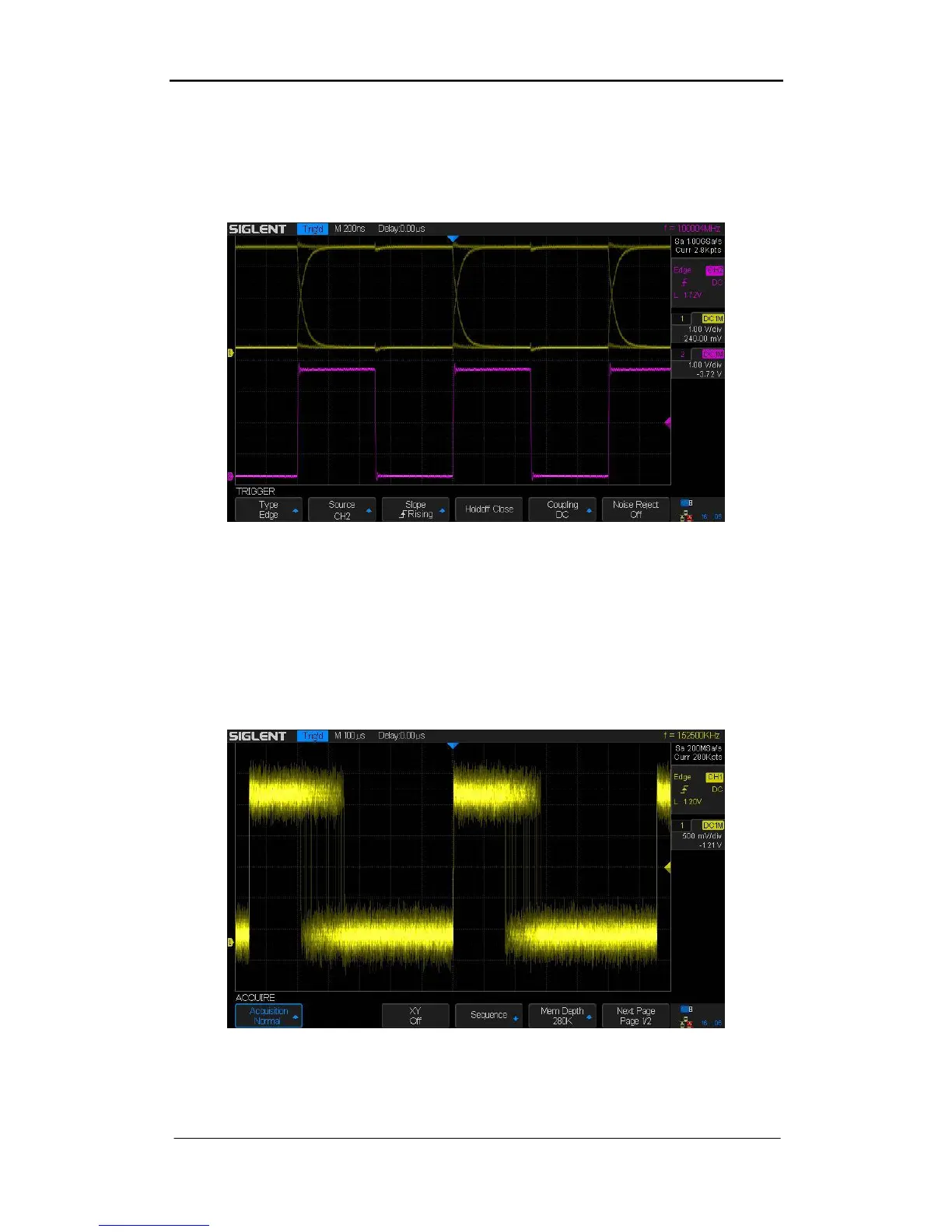

Figure 26 Pseudo-Noise Sequence
Noisy PWM
A noisy PWM with a carrier frequency of 1.5 KHz and a duty cycle variation
from 25% to 50%, which is used for demonstrating the ERES acquisition
mode. The noise amplitude is adjustable. (ERES: Enhanced Resolution)
Figure 27 Noisy PWM – NORMAL acquire mode
13 STB3 User Manual
