SRIZZA 40

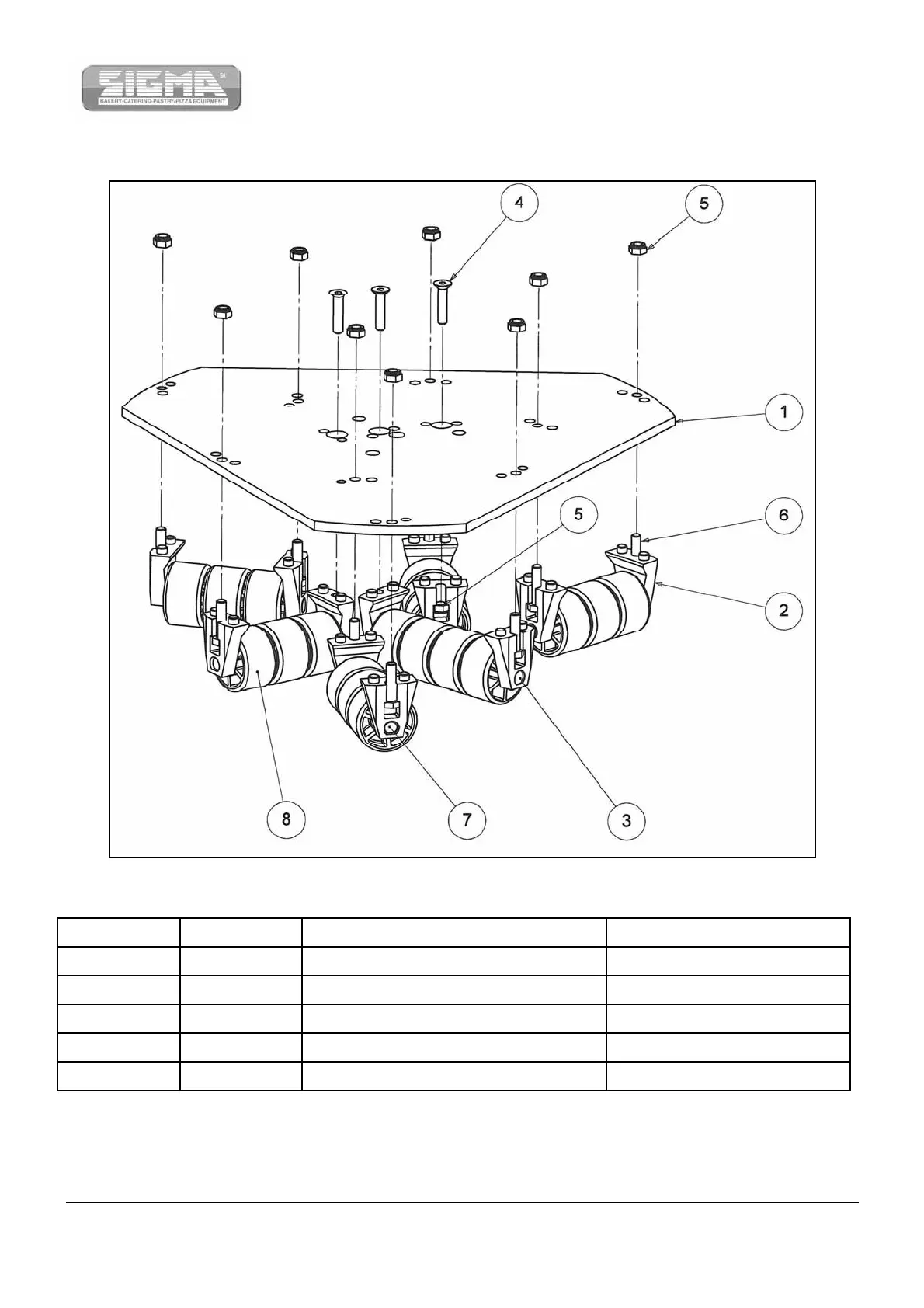

EXPLODED VIEW 2
TABLE EXPLODED VIEW 2
Pos. Q.ty Description Drawing
1 1 WHEELS PLATE 01153009
2 12 SUPPORT WHEELS PIN 01153006
3 1 WHEELS SHAFT LONG 01153038
7 5 WHEELS SHAFT SHORT 01153036-1
8 18 WHEELS 01153005-2t
