19 von 37V 07.17
Service Manual BXT3-13/16/19
ENGLISH

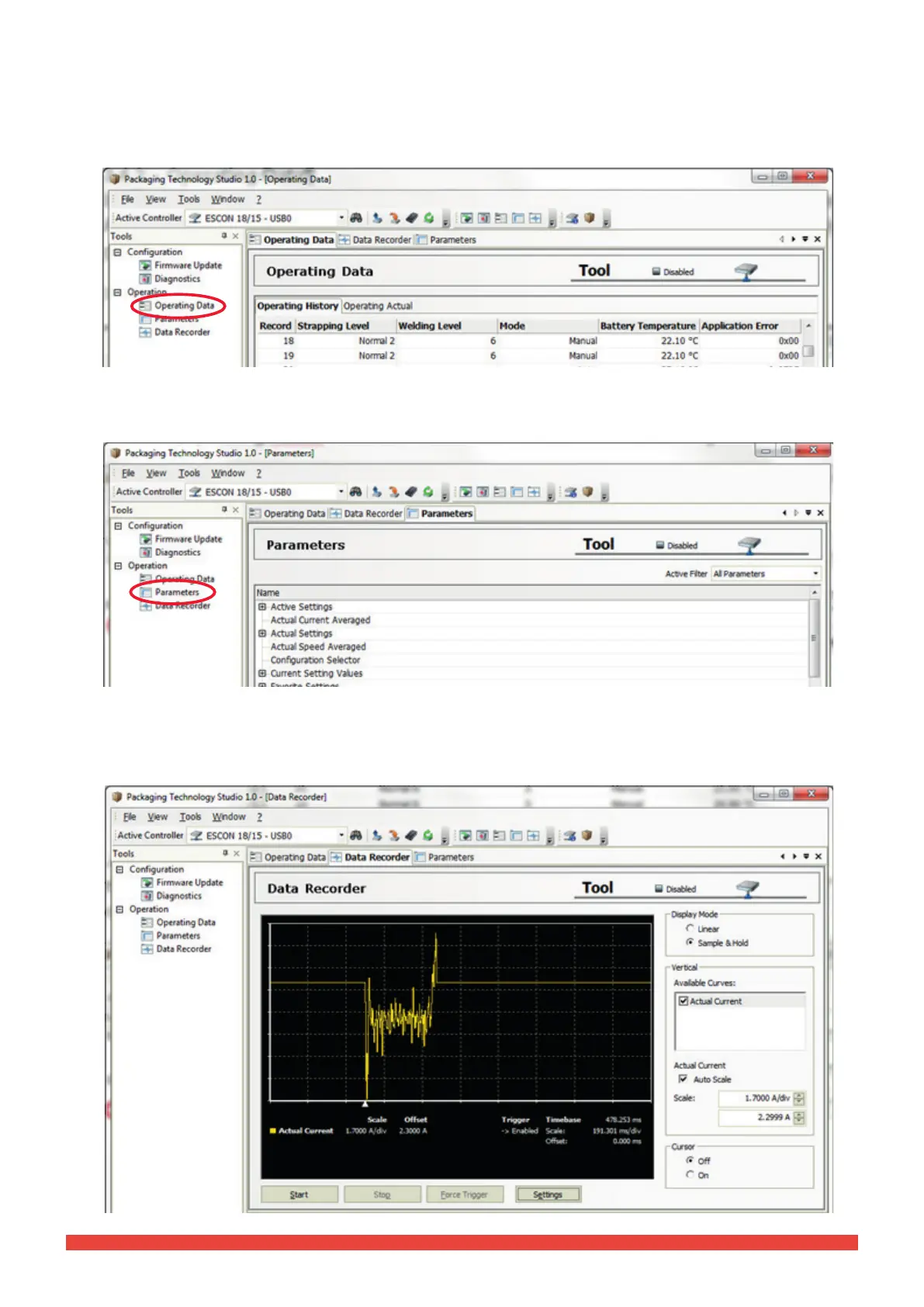

3.4.3 Operating data
In the tool “Operating Data”, there is a tab “Operating History” with a detailed list of the last 250 strapping actions.
● The history can be exported as csv le by a right-click in the list box.
In the tab “Operating Actual”, you can nd the current Status Information.
3.4.4 Parameters
The current parameter settings are represented in the tool “Parameter”. Those marked with “RW” settings can be
changed via PT Studio.
3.4.5 Data recorder
PT Studio is equipped with a “Data Recorder” for more detailed diagnostics. This tool offers the function of a
4-channel oscilloscope.
