Service Manual BXT3-13/16/19ENGLISH

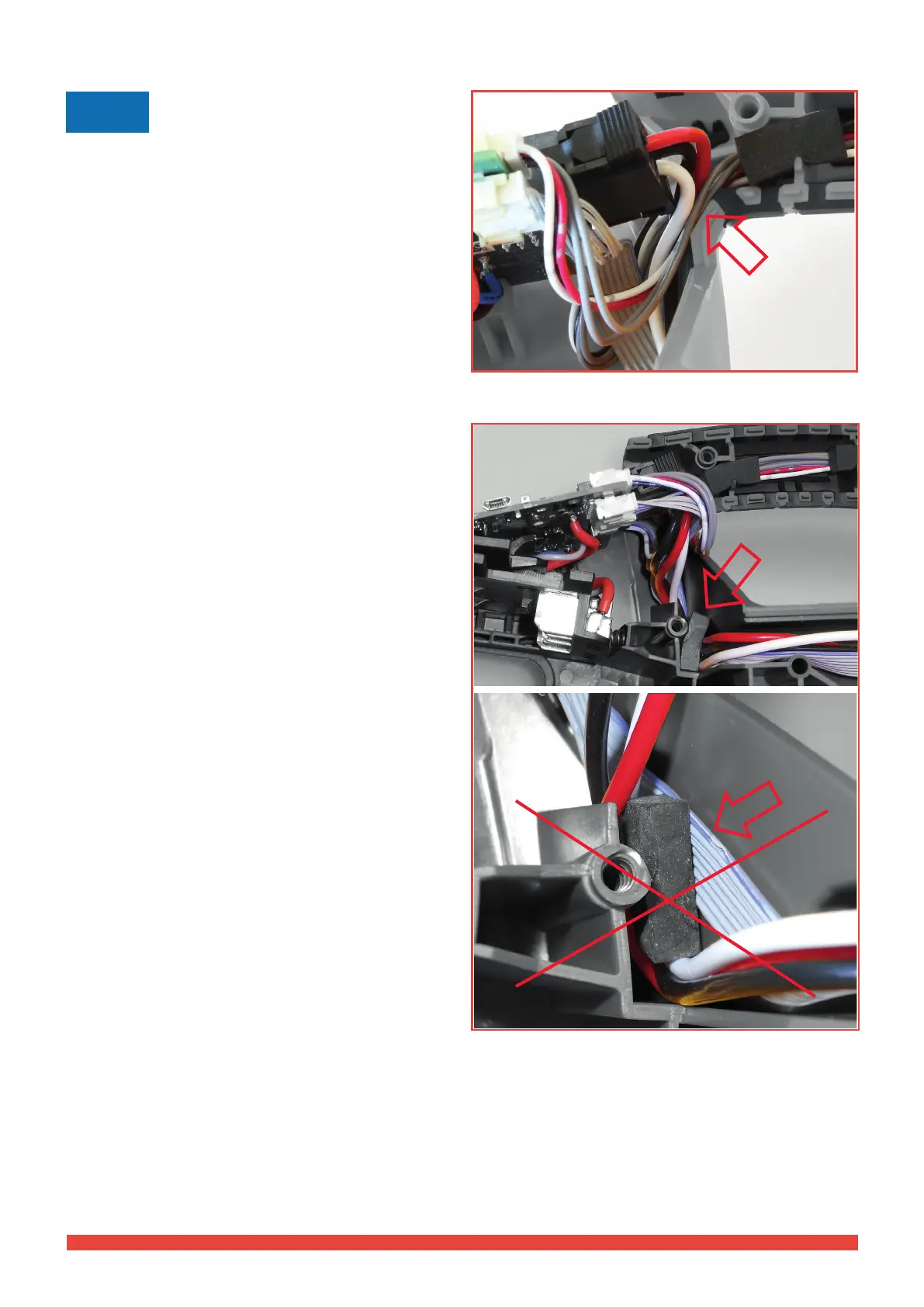

5.11.4 Plug connectors for the electronics
ATTENTION
Take care that the cable in the marked area
does not get pinched..
5.11.5 Motor cable
The cable coming from the motor must be routed exactly
as shown in the gure. The encoder cable is routed under
the screw dome.
Cable routed incorrectly. The encoder cable may get
pinched.
!
