Measurement process:
Connect the reference E2 / D2 c and the test unit e to the hand pump d.
For the measurement process, it is important
that the same pressure is applied to the refer-
ence and to the test unit. That is ensured with the
P40.2 pneumatic hand pump.
The E2 / D2 reference is screwed via the pres-
sure connection shanks i directly to the hand
pump. Connect the test unit with a flexible pres-
sure hose
f.
Then use the hand pump to build up the pressure
and set the required testing points.
The measurements and the additional informa-
tion are shown in the LCD display g of the refer-
ence E2 / D2.
Control and set the functions with the control
panel membrane buttons h.
As soon as the pressure has stabilised on the
pressure points, the current measurements are
read.
The measurements of the test unit and the reference are logged and evaluated.

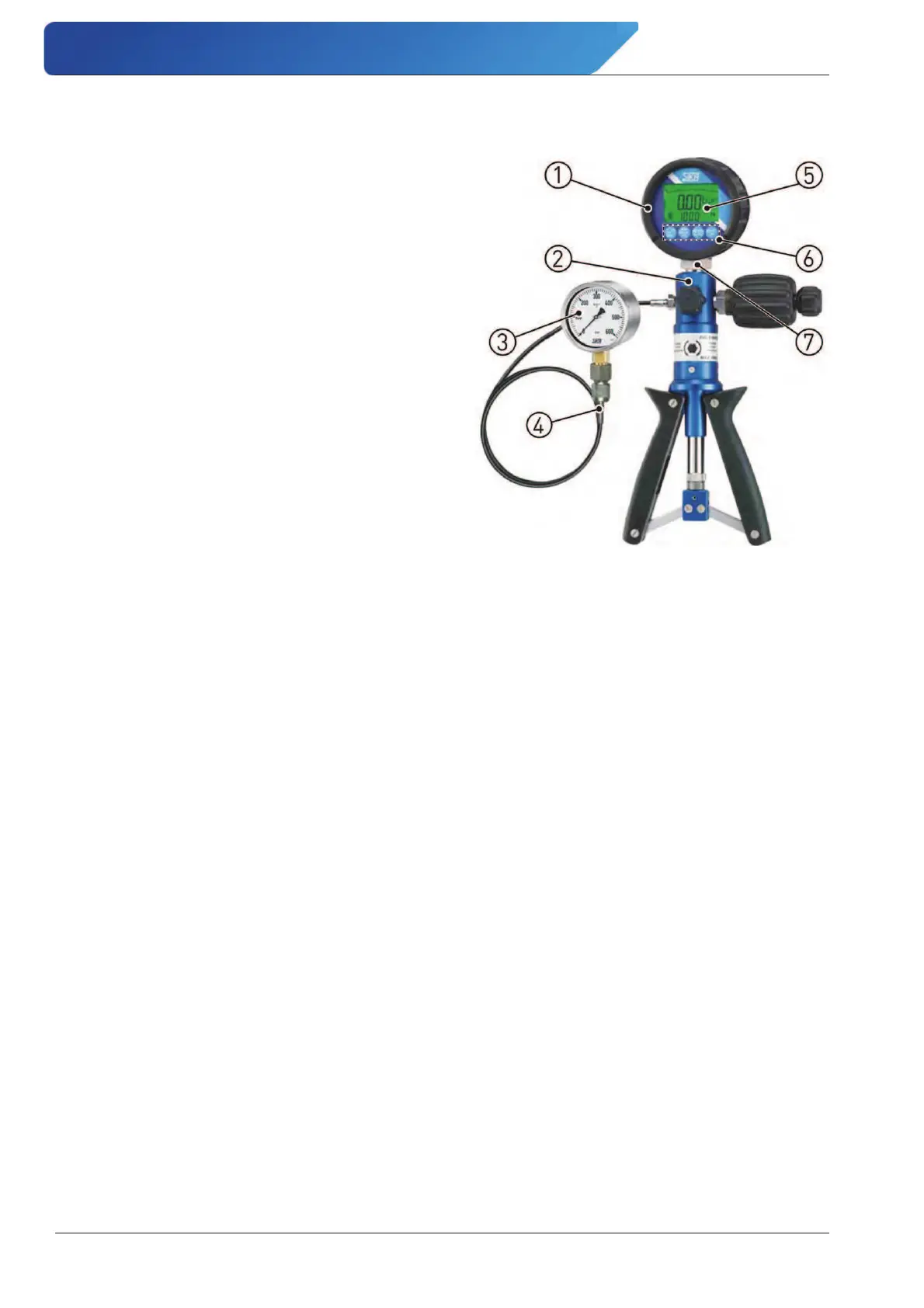

Example measurement setup with hand pump .
