Measuring mode and operation of the Functions E2 / D2
- 38 - © SIKA • Ba_Ref-E2D2 • 11/2014
6.2 Operation of the functions
The operation of the functions in the measuring mode and in the device settings menus are
described in the sections below.
Backlight
:
ª Press and hold the ON/OFF button for 2 s.
¾ The display lighting switches on.
¾ After 20 s, the lighting automatically switches off.
FS (Full Scale) display
:
The display of the end scale value (FS) is used to improve the legibility of the bar graph dis-
play. The end scale value of the pressure range is displayed numerically in the status bar.
ª Press the MIN/MAX/FS button to switch between the MIN-, MAX- and FS display.
¾ The status bar shows MIN, MAX and FS with the related values one after the other.
MIN/MAX display
:
The MIN/MAX function is used to measure pressure peaks. The MIN/MAX memory always has
the lowest (MIN) and highest (MAX) measurement values respectively.
ª Press the MIN/MAX/FS button to switch between the MIN-, MAX- and FS display.
¾ The status bar shows MIN, MAX and FS with the related values one after the other.
The MIN/MAX memory is erased when switched off. If you want to perform various pressure
tests consecutively, you must erase the MIN/MAX memory after each measurement.
Erasing the MIN/MAX values
:
ª Press the RESET/OK button to erase the MIN/MAX values and the bar graph display drag
indicator.
¾ The MIN/MAX values are set to the current measurement value.

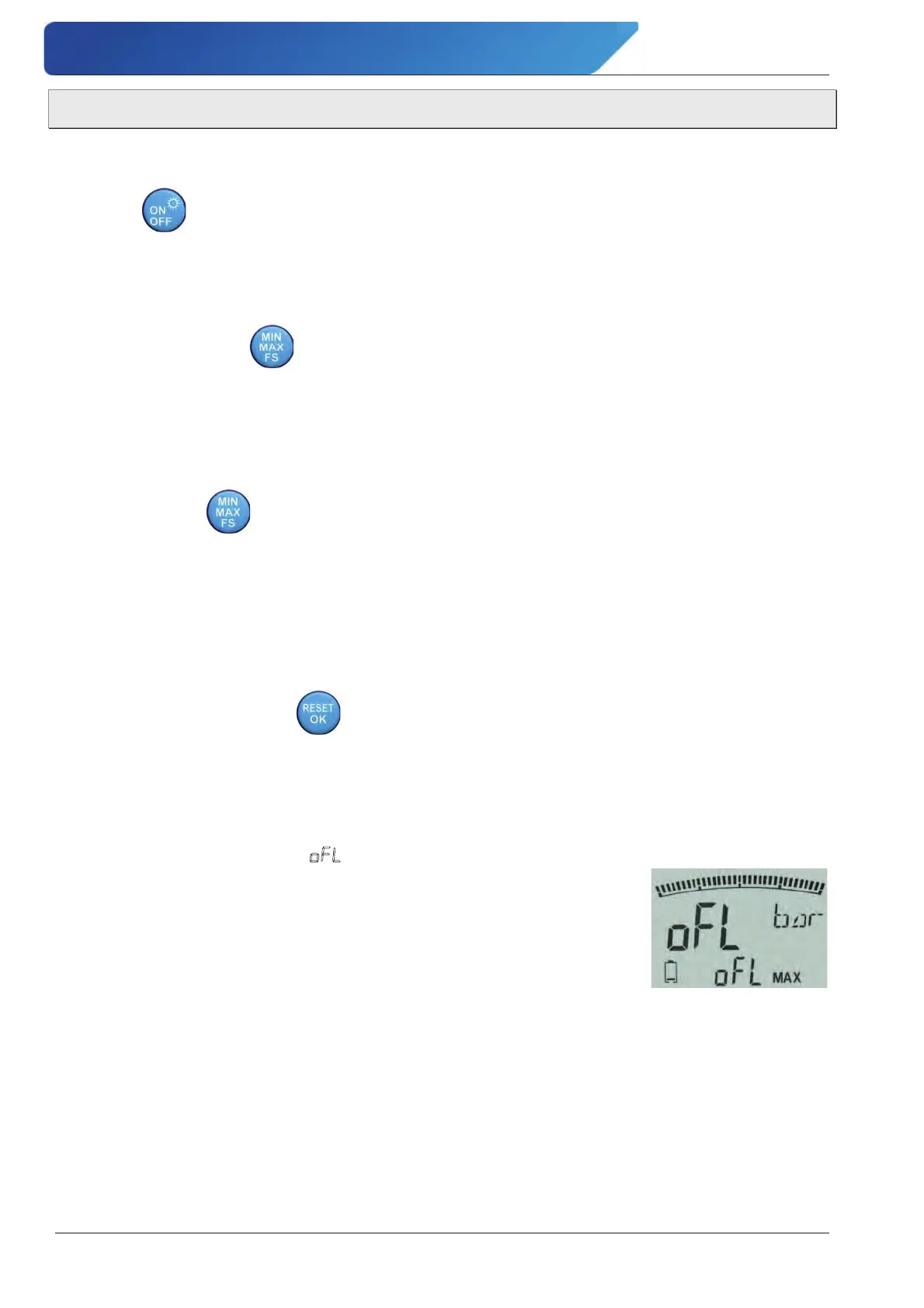

Out of measurement range / "R)/" display:
The "R)/" display appears when the current pressure lies outside of
the pressure range (ĭ 110% FS) of the E2 / D2. If the pressure falls be-
low that, the current measurement value is displayed.
The MAX value continues to display "R)/" and must first be reset.
If the "R)/" display is shown in the pressure less state, there is a malfunction.
ª Please contact SIKA.
