SIKA EC mAV 2 User Manual

EC mAV 2 Output from EC mAV 2
Technical changes reserved - 33 -
5.2 Current output
 1. Insert one end of the test leads into the +mA output jack (OUTPUT) of the EC mAV 2 and
connect the other end to the input of the user's instrument, as shown in figure 5-1:

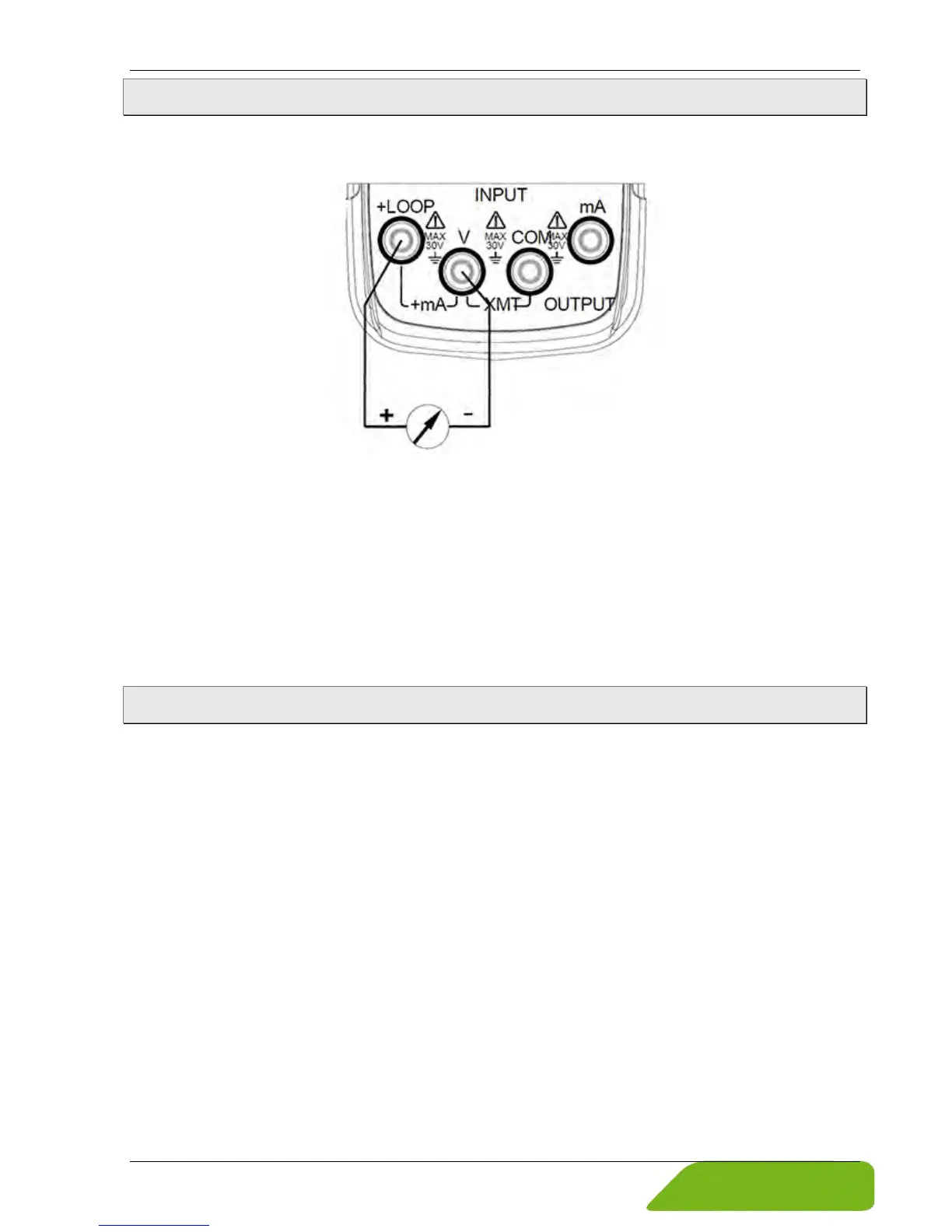

Figure 5-1
 2. Press the OUTPUT/INPUT button and OUTPUT appears on the display.
This indicates that the instrument is in an output state.
 3. Press the mA%/V button to select the output to be either mA or %.
The unit mA or mA% appears on the display, in which 0% indicates 4 mA and 100 % indi-
cates 20 mA.
 4. Press the ◄ / ► button to select the output digits.
 5. Press the ▲/ ▼button to change the value of the set digits.
Hold the button and the value will keep varying.
5.3 25 % Step Current Output
 1. Connect the test leads to the EC mAV 2 as stated in § 5.2.
 2. Press the OUTPUT/INPUT button and OUTPUT appears on the display.
This indicates that the device is in an output state.
 3. Press the 25%/RAMP button and ɅҐFS as well as ▲ will appear on the display.
 4. Press the mA%/ V button to select the set output to mA or %
The unit mA or mA% appears on the display.
 5. Press the ▲/ ▼ button to change the output in a value of 25 %, in which 0 % indicates
4 mA and 100 % indicates 20 mA.
 6. Press the 25 %/RAMP button again to exit.
