5.6 Simulating Transmitter Output (XMT)

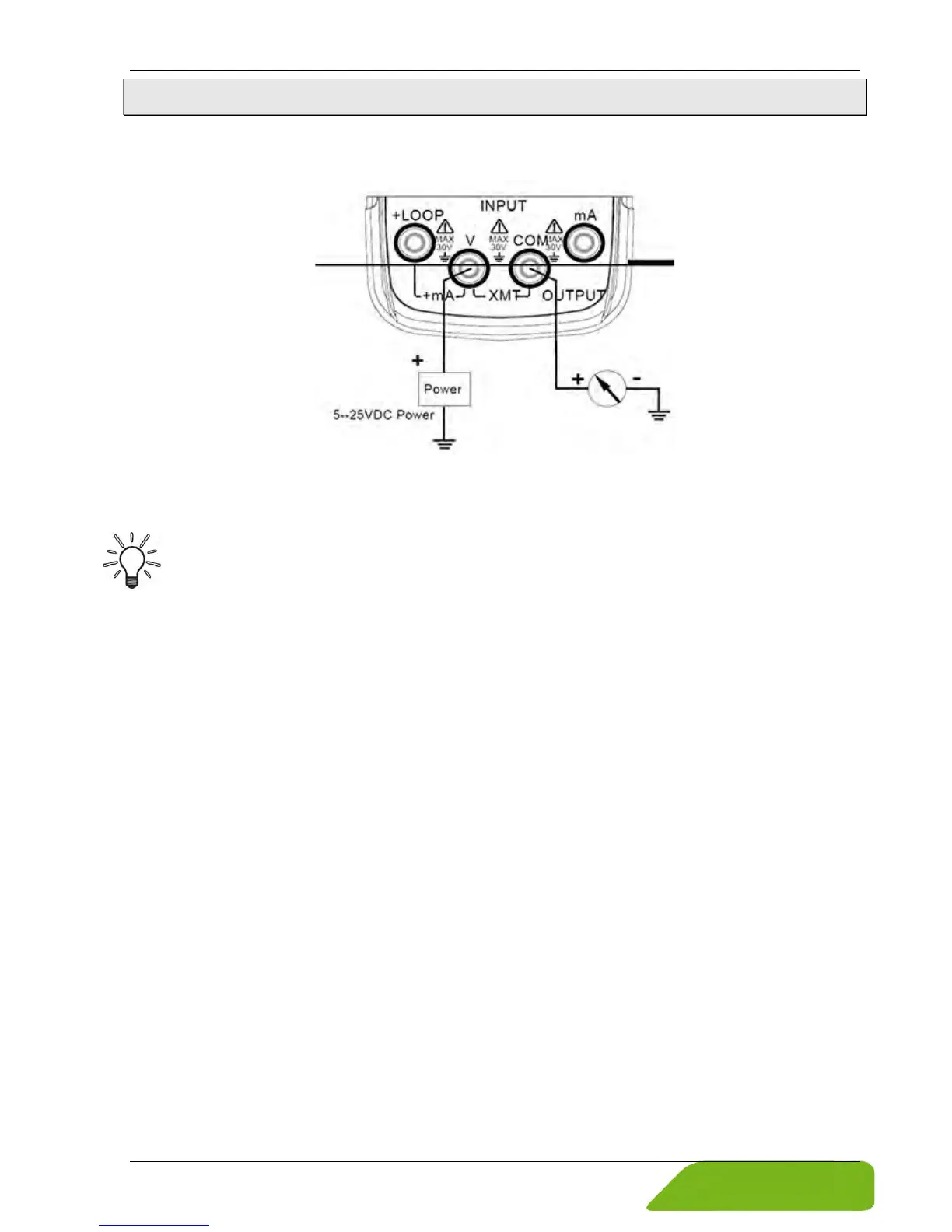

 Insert one end of the test lead to the ‘XMT’ output jack of the EC mAV 2 and connect the
other end to the input terminal of the user’s device as shown in the Figure 5-2:
Figure 5-2
The operation is the same as described in § 5.2 "Current output".
NOTICE!
• Range of power supply: 5 to 25 VDC.
• During the operation of the current output, use the external 24 VDC power
supply in a mode of connecting a transmitter in order to prolong the battery life.
