6 Measurement Operation
6.1 After switching on voltage supply
After switching on voltage supply, the display shows first the message
„SIKA TD 32500“ and the version number of the program.
Then TD 32500 switches to measurement operation. In measurement
operation the current rate of flow and if available the temperature of the
Pt100 sensor are measured.
In addition the sum of total flow is carried out.
D
epending on configuration, TD 32500 then calculates the output values for
the alarm outputs 1 and 2, the analogue output and the frequency divider
output.
If the values exceed a recognized alarm point (minimum alarm or maximum
alarm), then an additional optical signal appears as bright alarm LED.
In the top line of the display, depending on configuration, will one of the
computed measured values, such as flow rate, total flow, or temperature if
available, be displayed as percentage:

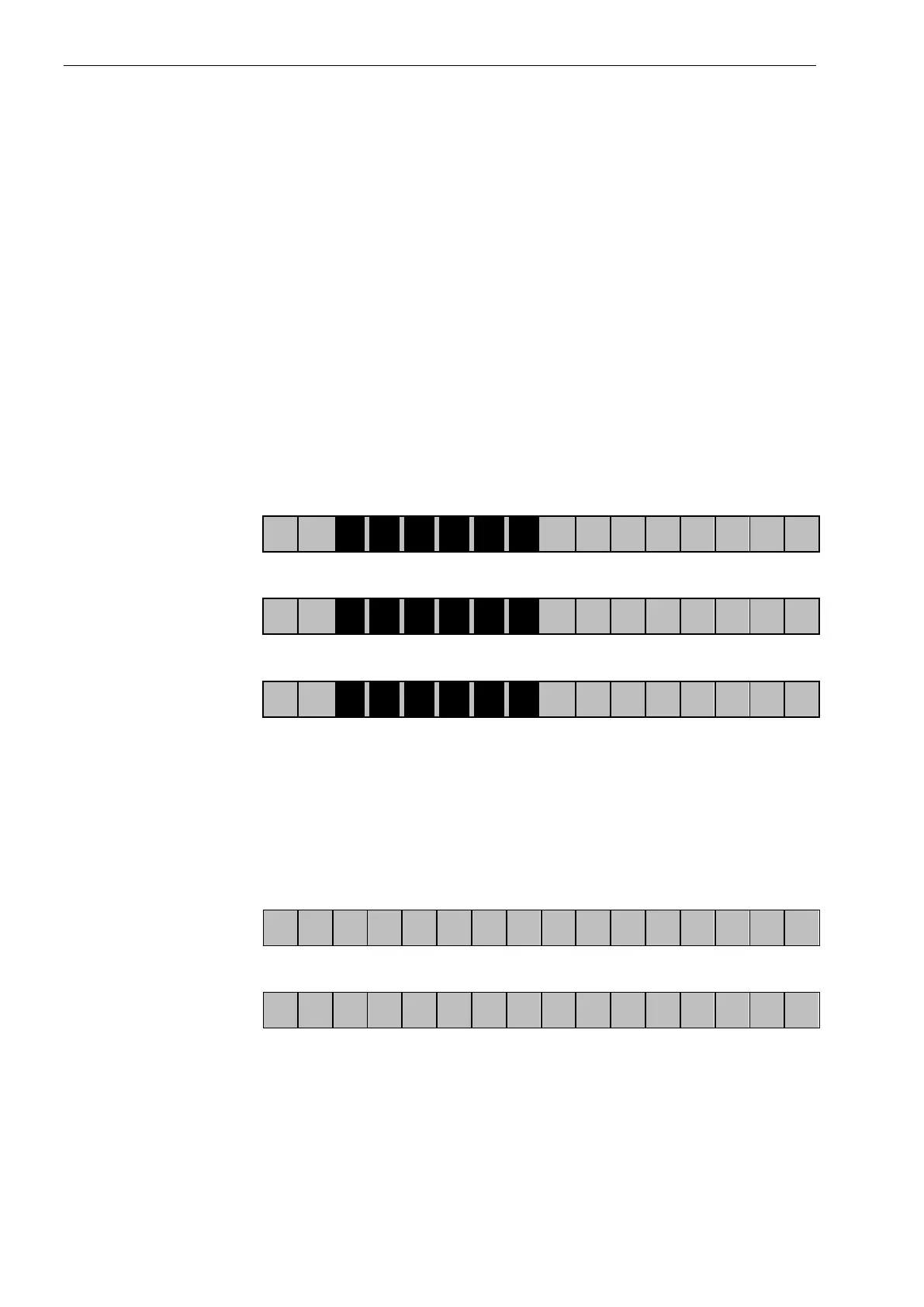

Bargraph flow rate (abbreviation: F)
F
:
1
0
0
%
Bargraph total flow (abbreviation: V)
V
:
1
0
0
%
Bargraph temperature (abbreviation: T)
T
:
1
0
0
%
The range of the percentage indication is split in 10 blocks with 5 marks
each. The resolution is 2% per mark. As range limits for 0% and 100%, are
the programmed values of the upper and lower limits of the measuring
range considered as base.
The lower line displays one of the computed measured values, such as flow
rate, total flow as floating point numerical value or, if available, temperature
with its programmed physical unit of measurement:
Flow:
1
2
0
,
0
0
l
/
m
i
n
Resettable total counter:
2
0
0
0
0
0
l
