SIKA TD 32500 Operating Manual
4 Storage and Installation
4.1 Storage
TD 32500 must be stored dust-protected and dry. The ambient temperature
for storage must be between -10 °C and +80 °C.
4.2 Installation
The measurement instrument TD 32500 is attached to a SIKA flow sensor.
As an option, the unit is equipped with a Pt100 temperature sensor. Note
the installation instructions of the delivered flow sensor when fixing the unit
to the pipeline.
In addition note the following instructions:

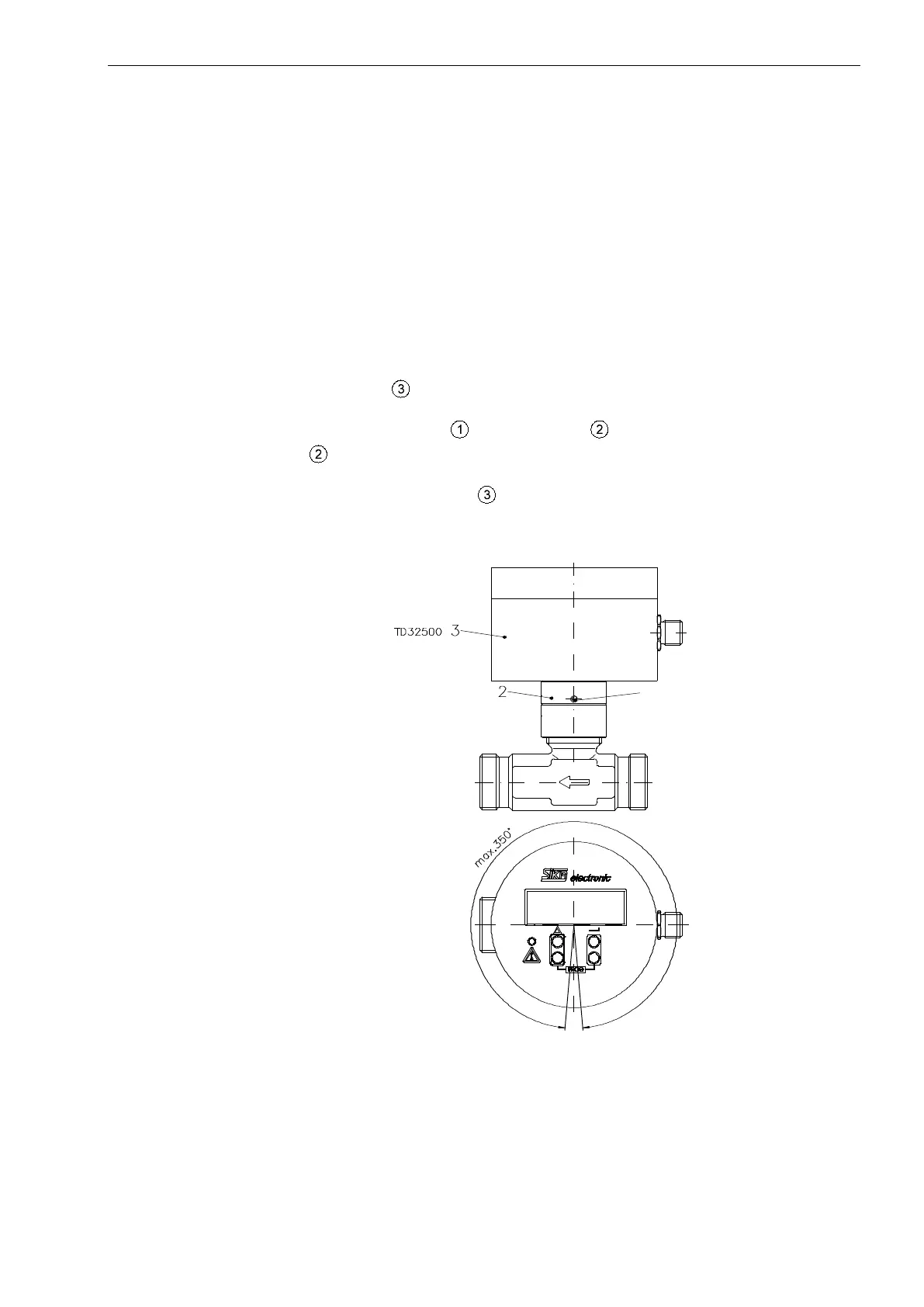

• TD 32500
is mounted onto the flow sensor and can be rotated by
180°. You can adjust the instrument to the required position by loosening
the threaded stud
in the adapter
.
The bottom part of the adapter
, which is firmly attached to the flow sensor, must on no account be
twisted, because this would lead to damage of the flow sensor.
In addition, TD 32500
must not be turned beyond the stop, this would
also cause damage to the flow sensor.
• Make sure that in the direct vicinity of the measuring unit magnetic stray
fields do not affect the function of the instrument.
turnable
removable
