Compact - Laser Series CL plus Instructions for use
3.2 Initial use
The Silberbauer Compact -
Laser plus is delivered together
with NiMH- Batteries in size AA and
with a charger. These batteries
have a very low self discharge
rate: after ONE year, yet 85% of
the initial charge are available!

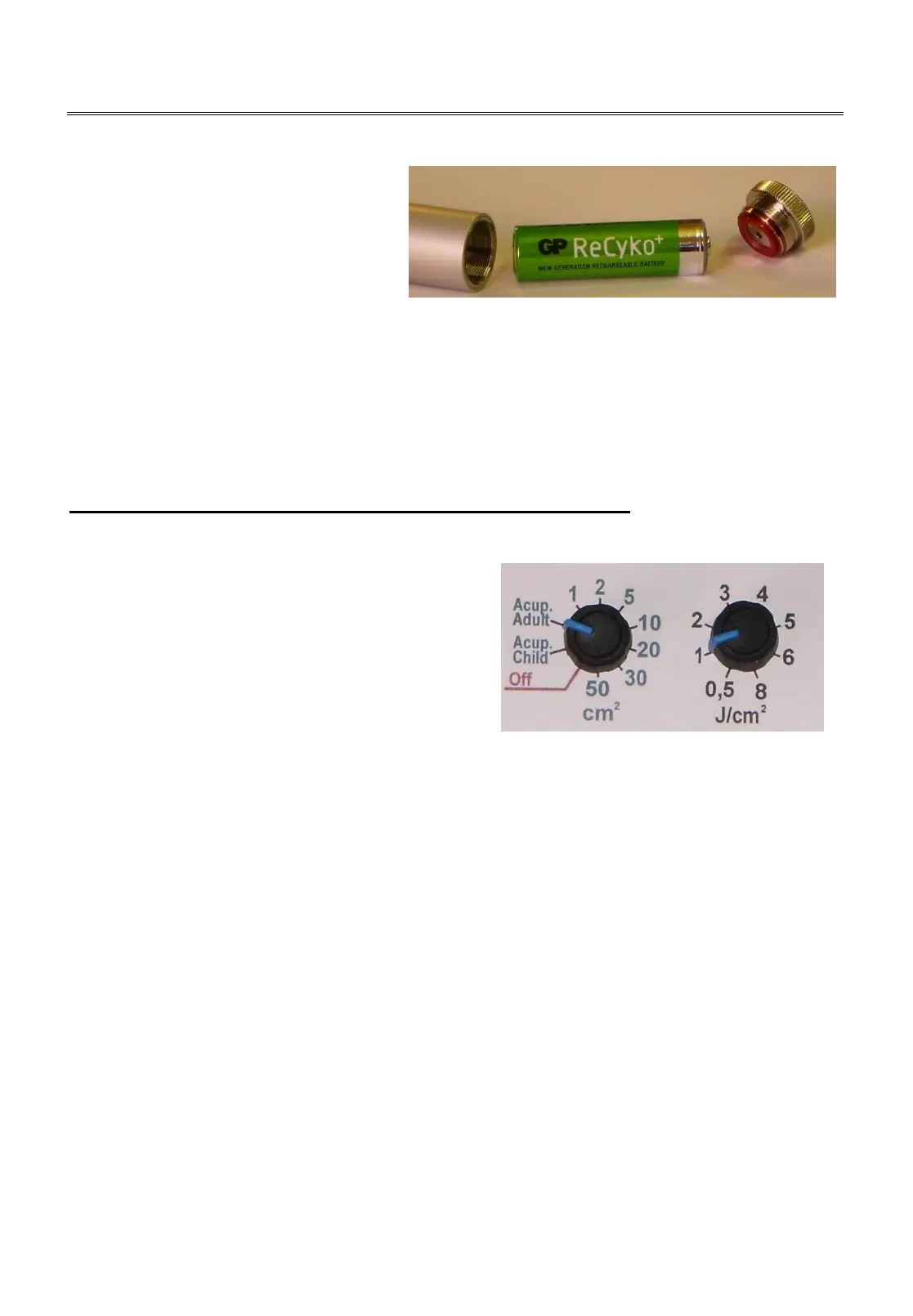

Turn Rotary Switch 1 (6) into „Off“ position. Open Battery Cap (10) at the
end of the laser and insert battery with negative end pointing into the tube; close
the cap and turn it clockwise until it stops.
Now your Silberbauer Compact - Laser mini is ready to use!
4 Use of the Compact – Lasers CL plus
4.1 Commissioning
The left Rotary Switch 1 (6) is for
switching the device on and off and to select
the function or the area.
In “Off“ – position the device is
switched off completely, no waste of battery
power.
Nevertheless the battery should be removed from the laser if it is not used for
a longer period because there is the risk of the battery leaking and then the risk of
oxidation of the contacts. This causes a defect of the device!
In position „Acup. Child“ the laser power will be set to ¼ of the nominal
output power and the penetration time to 5 sec., in position „Acup. Adult“ to ½ of
output power and to 15 sec.
The other positions of this Rotary Switch are for setting the area which should
be penetrated if the laser is used to penetrate larger areas.
The right Rotary Switch 2 (7) is used to adjust the Dose in Joule/cm
2
.
After switching in the laser cannot be started promptly, but only after a
security delay of 2 sec. During this time there sounds a warning signal and the lamp
(3) blinks in orange colour. The green lamp (5) flashes slowly and shows that the
device is switched on and the battery is charged enough. If this lamp flashes fast the
charge will soon come to an end.
Now the laser can be started by shortly pressing the Push Button (4). The
laser can be stopped soddenly by pressing this Push Button again during
penetration.
