12

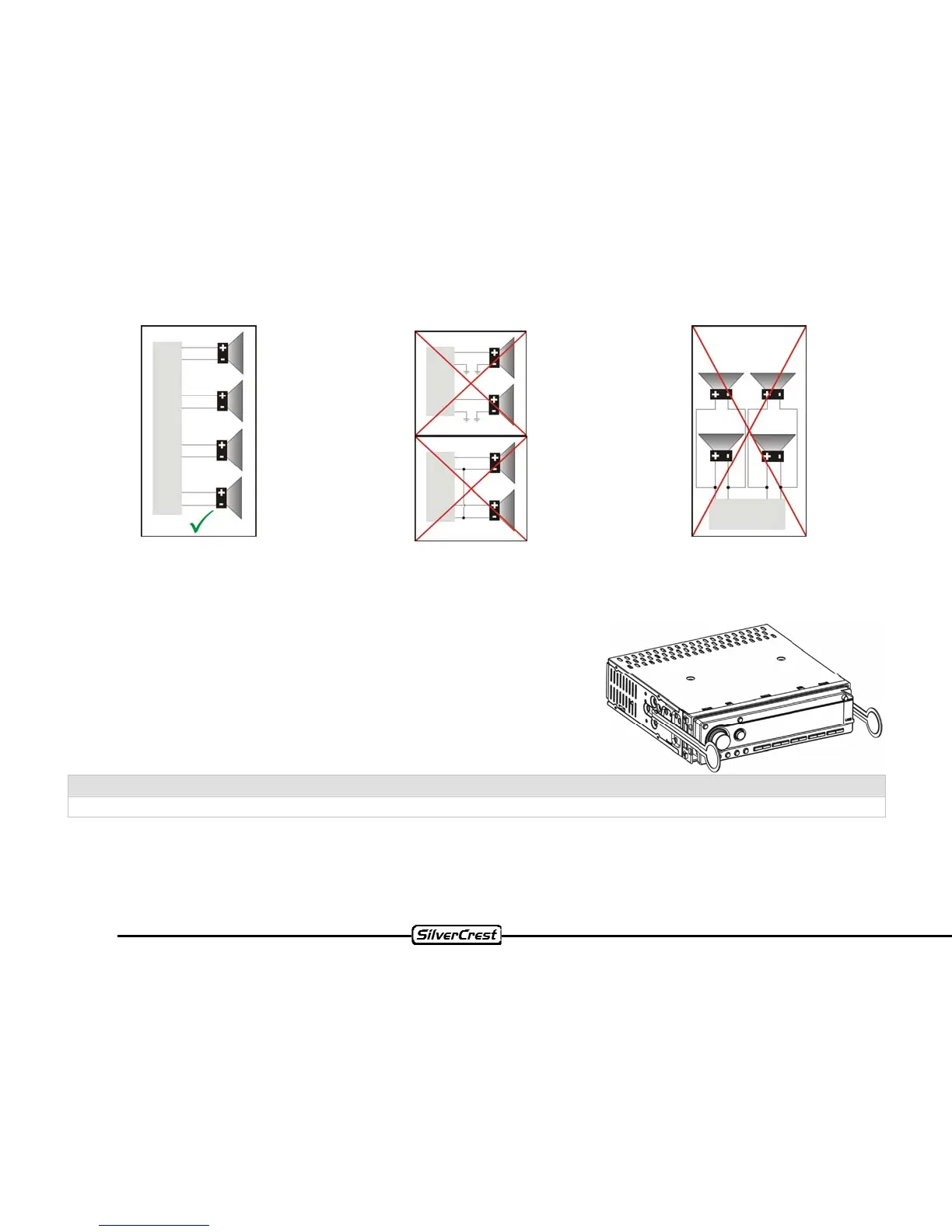

Illustr. 8.5
Illustr. 8.6 Illustr. 8.7
8.5 Removal
Turn off the device. Remove the operating unit and place it into the case. Clamp
off the negative pole of the vehicle battery for the duration of the disassembly.
First remove the front frame of the device. Then insert the two disassembly keys
into the openings on both sides of the front of the device and slide these until the
stop. Make sure that the protrusions on the disassembly keys (Illustr. 8.2) point
away from the device during the insertion. Slowly and carefully pull out the
device. Remove the cable and antenna from the device.
Note:
Make sure that no vehicle cable can cause a short circuit after the device has been unplugged.
