Smart Machine Smart Decision
SIM800C_Hardware_Design_V1.00 48 2014-10-30
7. Manufacturing

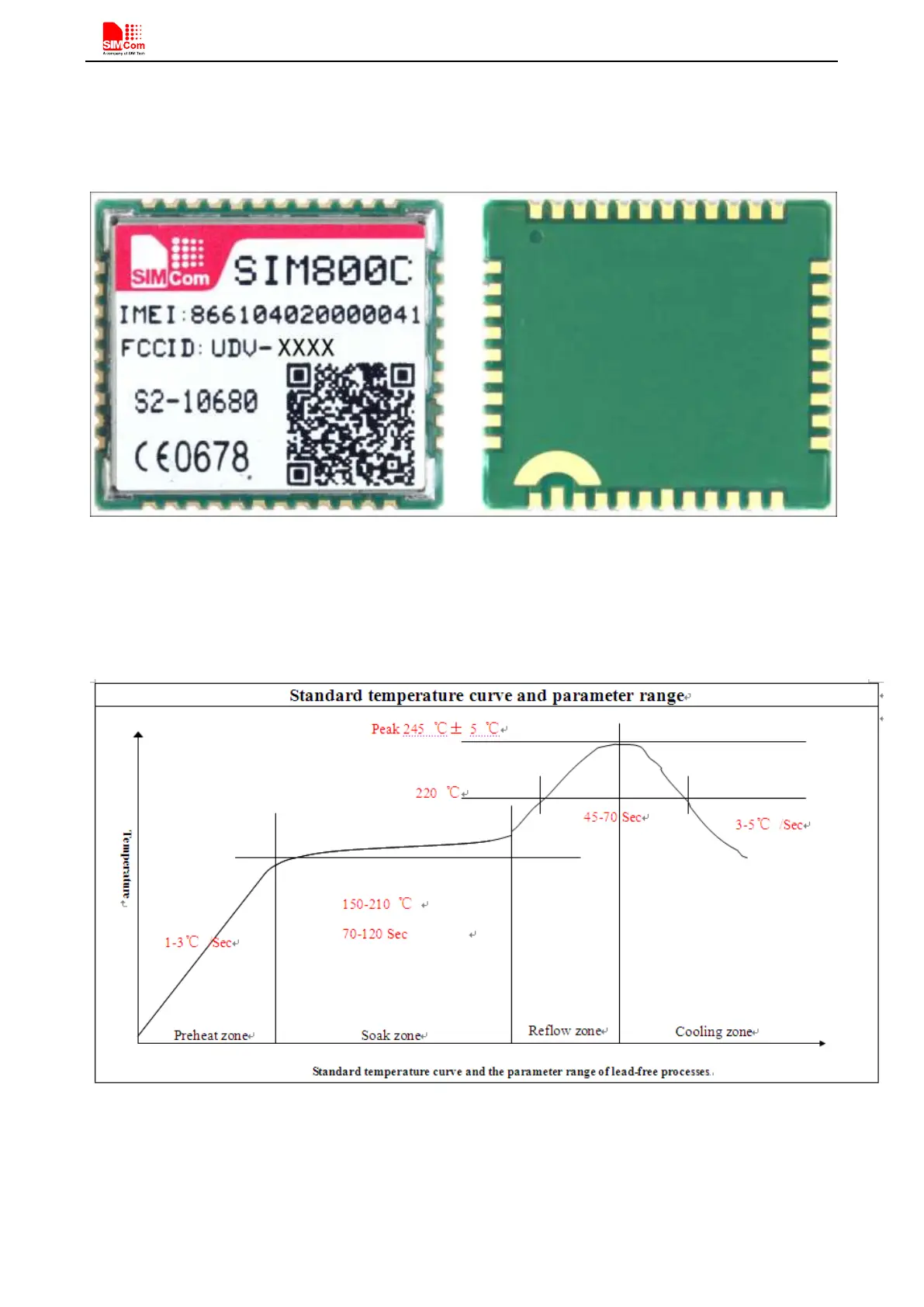

7.1. Top and Bottom View of SIM800C
Figure 40: Top and bottom view of SIM800C
7.2. Typical Solder Reflow Profile
Figure 41: Typical solder reflow profile of lead-free processes
