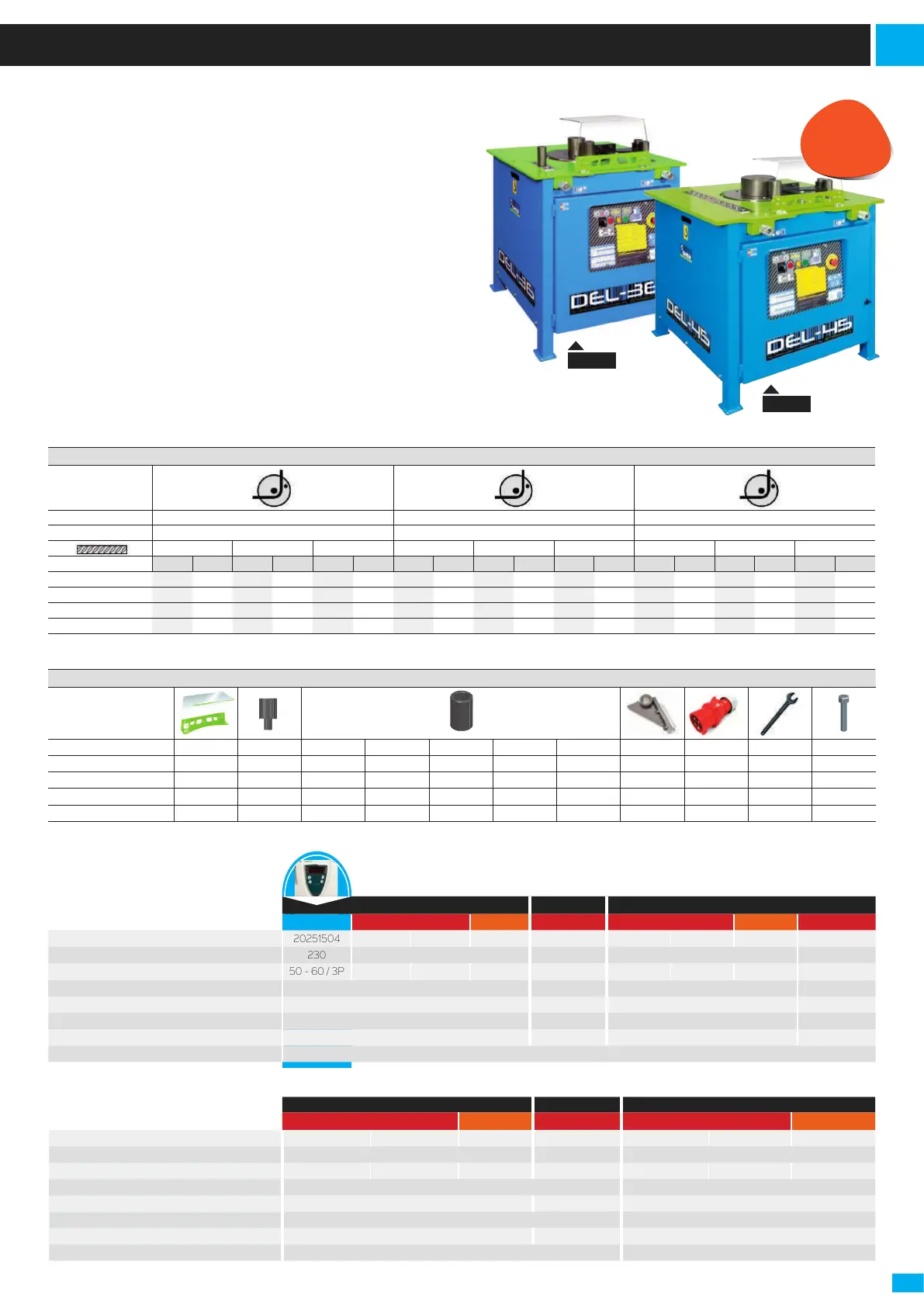

27
Rebar Processing
I
N
V
E
R
T
E
R
t
e
c
h
n
o
l
o
g
y
DEL 32 DEL 32 2V DEL 36 DEL 36 2V
1 - PHASE 3 - PHASE 3 - PHASE 3 - PHASE 3 - PHASE 3 - PHASE 3 - PHASE
Item code 20251504 20251500 20251502 20251501 20251505 20252000 20252002 20252001 20252005
Motor voltage (V) 230 230 / 400 230 / 400 230 / 400 230 / 400
Frequency (Hz) / In (pins) 50 - 60 / 3P 50 / 4P 50 / 5P 60 / 4P 50 / 5P 50 / 4P 50 / 5P 60 / 4P 50 / 5P
Kw (Hp) 2,2 (3) 3,3 (4,5) 3 (4) 4,5 (6,1)
Cycles / minute (bend/return) 1
st
& 2
nd
speed
11 11 / 22 10 10 / 20
Oil capacity (L. / Gal.) 5,1 / 1,34 5,1 / 1,34 10 / 2,64 10 / 2,64
Net weight (Kg. / Lbs.) 302 / 665,79 302 / 665,79 355 / 782,64 355 / 782,64
Packaging dimensions L x W x H (mm / in) 950 x 850 x 1050 / 37,40" x 33,46" x 41,33" 950 x 850 x 1050 / 37,40" x 33,46" x 41,33"
• Precise angle adjustment through pins and inductive sensors, dirt
and water proof, much more reliable than standard limit switches.
• Side short rulers with holes for pins, allowing an accurate tuning on
angle adjustment (models DEL 32 and DEL 36).
• Models DEL 45 and DEL 52 featured with side long rulers which
allows double bends for "Z" shaped figures (bottle neck shapes).
• Two speeds motor available upon request on models DEL 32, DEL
36 and DEL 45.
Innovation, flexibility and safety.
Accessories included
Ø mm / in Ø48 / 1,89" Ø60 / 2,36" Ø100 / 3,93" Ø140 / 5,51" Ø160 / 6,30" Ø200 / 7,87"
DEL 32 1 4 4 1 1 1 1 1 2
DEL 36 1 4 4 1 1 1 1 1 1 2
DEL 45 1 4 4 1 1 1 1 1 1 2
DEL 52 1 4 4 1 1 1 1 1 1 1 2
Bending capacity
Yield strength / Grade Re=N / mm
2
250 / G-40 Re=N / mm
2
480 / G-60 Re=N / mm
2
650 / G-75
Tensile strength Rm=N / mm
2
450 Rm=N / mm
2
650 Rm=N / mm
2
850
No. x 1 2 3 1 2 3 1 2 3
mm in / # mm in / # mm in / # mm in / # mm in / # mm in / # mm in / # mm in / # mm in / #
DEL 32 Ø32 1-1/4" / 10 Ø24 1" / 8 Ø18 3/4" / 6 Ø28 1-1/8" / 9 Ø20 7/8" / 7 Ø16 5/8" / 5 Ø25 1-1/8" / 9 Ø18 3/4" / 6 Ø14 1/2" / 4
DEL 36 Ø36 1-3/8" / 11 Ø26 1-1/8" / 9 Ø22 7/8" / 7 Ø32 1-1/4" / 10 Ø24 1" / 8 Ø18 3/4" / 6 Ø32 1-1/4" / 10 Ø22 7/8" / 7 Ø16 5/8" / 5
DEL 45 Ø45 1-3/4" /14 Ø32 1-1/4" / 10 Ø25 1" / 8 Ø40 1-3/4" / 14 Ø32 1-1/4" / 10 Ø25 1" / 8 Ø40 1-3/8" / 11 Ø26 1" / 8 Ø25 1" / 8
DEL 52 Ø52 2" Ø36 1-3/8" 11 Ø30 1-1/8" / 9 Ø46 1-7/8" Ø34 1-3/8" / 11 Ø25 1-1/8" / 9 Ø42 1-3/4" / 14 Ø32 1-1/8" / 10 Ø25 1-1/8" / 9
NEW
DEL 45
DEL 36
*For models DEL with 2 speeds motor, please check bending capacities with your sales representative.
DEL 45 DEL 45 2V DEL 52
3 - PHASE
3 - PHASE 3 - PHASE 3 - PHASE 3 - PHASE
Item code 20252500 20252502 20252501 20252505 20253000 20253002 20253001
Motor voltage (V) 230 / 400 230 / 400 230 / 400
Frequency (Hz) / In (pins) 50 / 4P 50 / 5P 60 / 4P 50 / 5P 50 / 4P 50 / 5P 60 / 4P
Kw (Hp) 3 (4) 4,5 (6,1) 3 (4)
Cycles / minute (bend/return) 1
st
& 2
nd
speed
6,5 10 / 20 6
Oil capacity (L. / Gal.) 8,8 / 2,32 8,8 / 2,32 15 / 3,96
Net weight (Kg. / Lbs.) 490 / 1080 490 / 1080 721 / 1589
Packaging dimensions L x W x H (mm / in) 1080 x 1040 x 1170 / 42,52" x 40,94" x 46,06" 1080 x 1040 x 1170 / 42,52" x 40,94" x 46,06"
