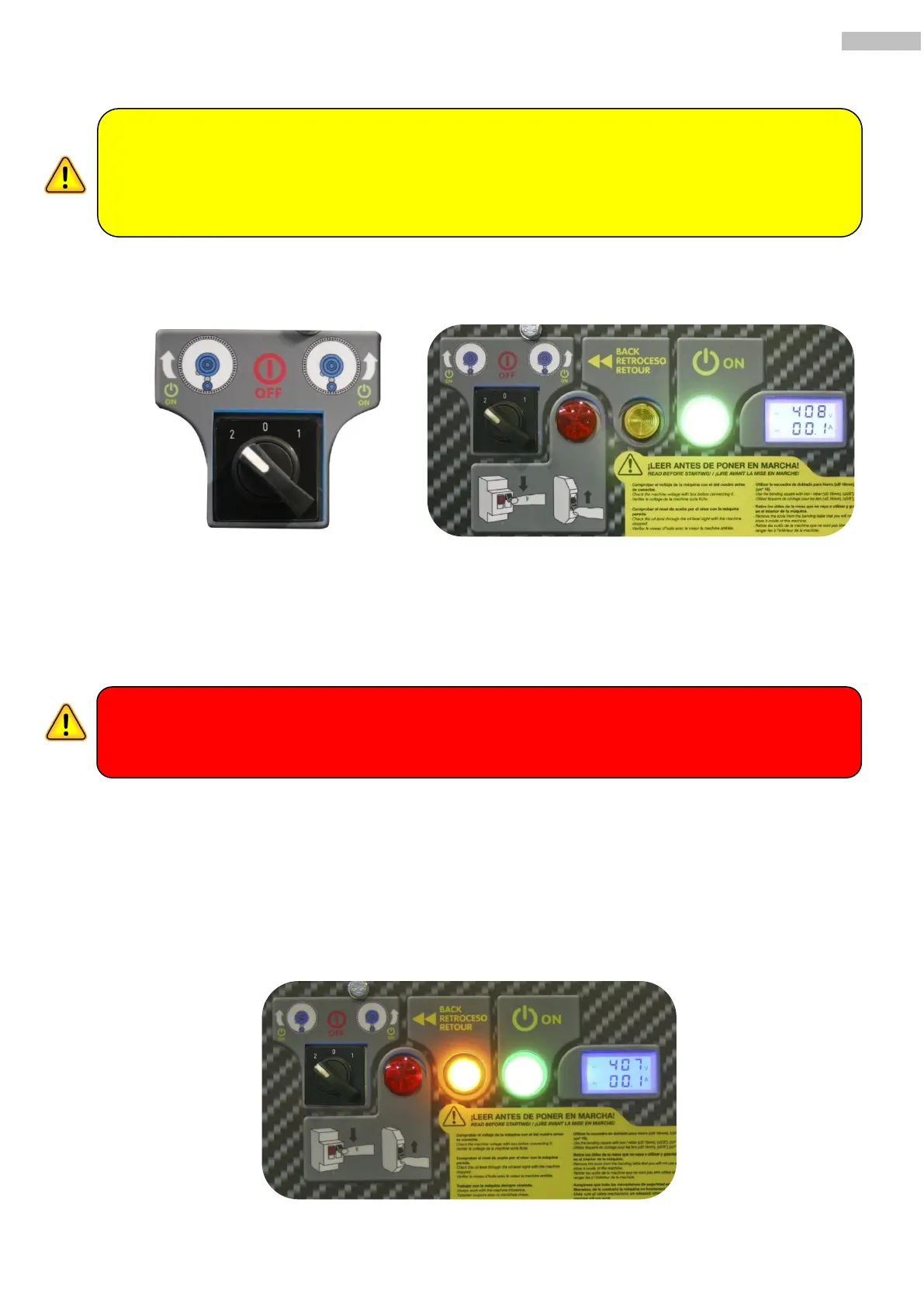

2. Select a bending direction on the electrical panel and the green light will come on.
3. Depress the pedal to start to bend and see which way the plate is bending
Position 0. Machine disconnected.
Position 1. Machine connected in anti clockwise.
Position 2. Machine connected in clockwise position.
7.3 ELECTRICAL SCHEMES.
MANUAL EMERGENCY RETURN OF BENDING PLATE
If during the bend you want to stop the process press the RETURN button and use the pedal to return to a previous
position or to the start.
When connecting the machine, make sure the machine is turning in the way the sticker indicates, this will
avoid accidents with the accessories on the bending plate.
If it doesn´t turn the right way, please change the phases.
IMPORTANT: The transformer has a tolerance of de ±10% of the stated voltage capability of the machine. If this
limit is passed then it will damage the transformer.
400V machine = 380V min / Max 430V max
230V machine = 210V min / Max 250V max
