1.1 INTRODUCTION
“FORMAT DEWY.zip” compact boilers are
premix condensation thermal appliances
which use microprocessor technology for
function control and management. They
comply with the european directives
90/396/CEE, 89/336/CEE, 73/23/CEE,
92/42/CEE and with the european specifi-
cation EN 483.
The instructions given in this manual are
provided to ensure proper installation and
perfect operation of the appliance.
1 DESCRIPTION OF THE BOILER

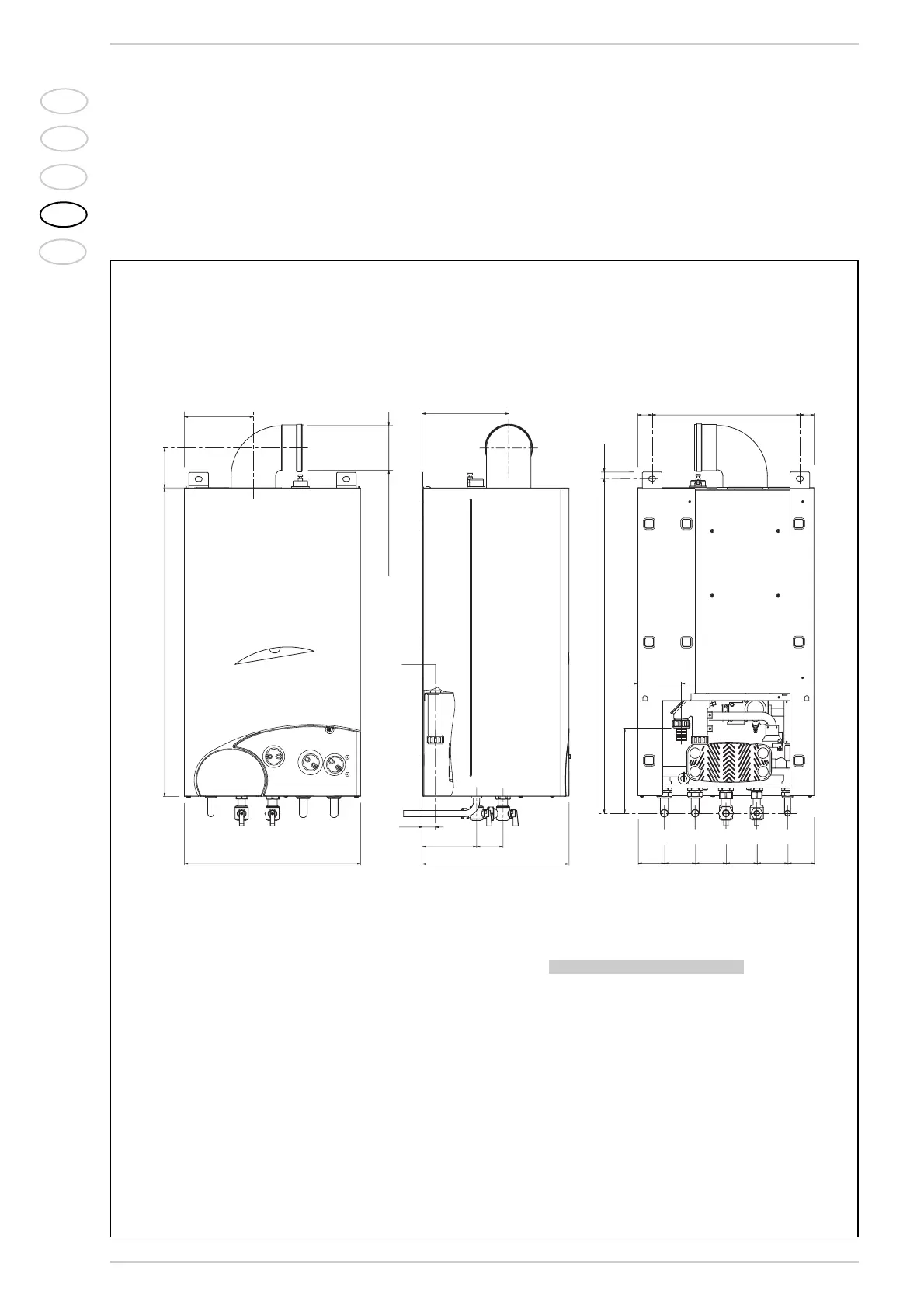

1.2 DIMENSIONS
157
Ø 60/100
90
700
400
Z
100
30
S3
125
60
335
70 70
70
70
=
=
195
760
15
335
=
=
R
MG
EU
Fig. 1
FIXTURES
R C.H. return G 3/4” (UNI - ISO 228/1)
M C.H. flow G 3/4” (UNI - ISO 228/1)
G Gas connection G 3/4” (UNI - ISO 228/1)
E D.H.W. inlet G 1/2” (UNI - ISO 228/1)
U D.H.W. outlet G 1/2” (UNI - ISO 228/1)
S3 Condensation outlet ø 20
25 BF 30 BF
Z mm 197 133
