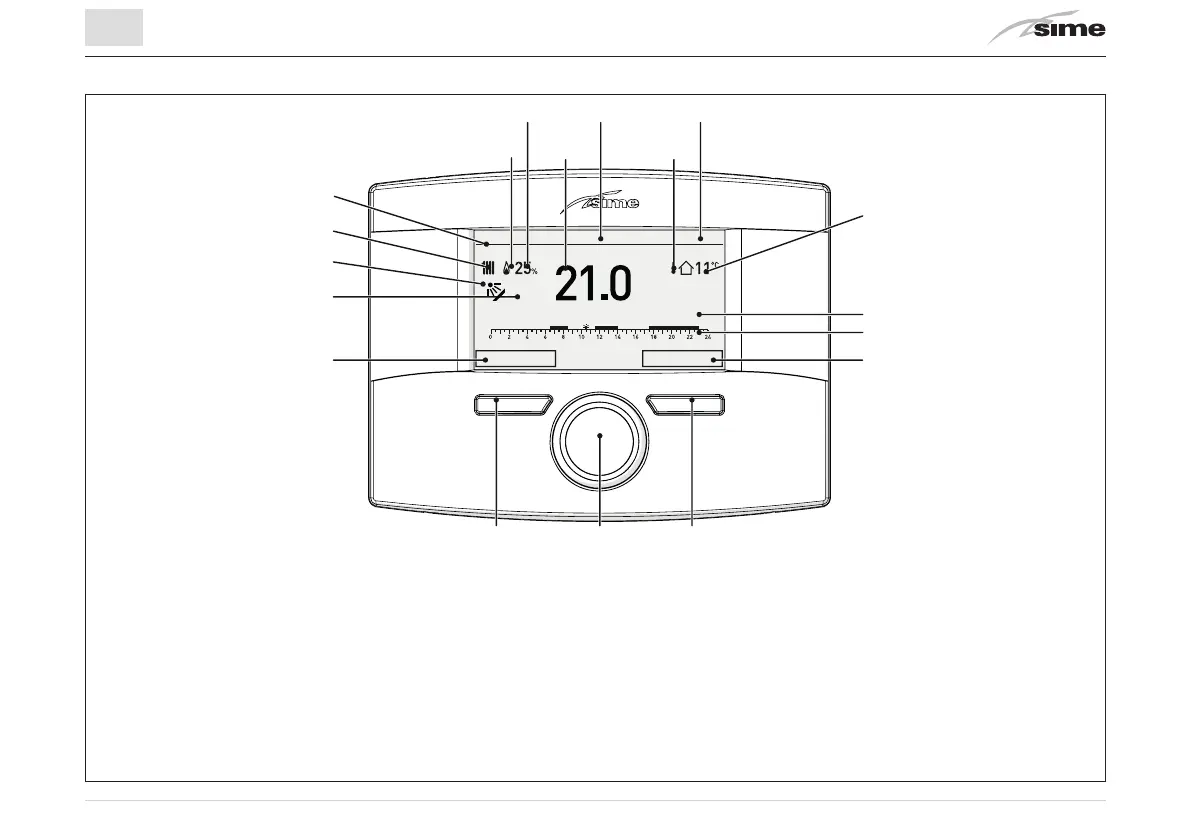

3.3 User interface
1 Button (A)
2 Multifunction encoder
3 Button (B)
4 Action carried out by pressing button (B)
5 Programmed time band
6 Description of adjustments in course
7 Measured external temperature
8 Time
9 Presence of External Sensor (ES)
10 Date
11 Measured room temperature
12 Modulation percentage
13 Presence of flame
14 Controlled area
15 Request for heating (rad) or hot water (tap)
16 Solar power present and active
17 Percentage of solar production
18 Action carried out by pressing button (A)
