Simer 4807S - Page 12

For parts or assistance, call Simer Customer Service at 1-800-468-7867
Repair Parts 12
1
2
4
3
5A
5B
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
20

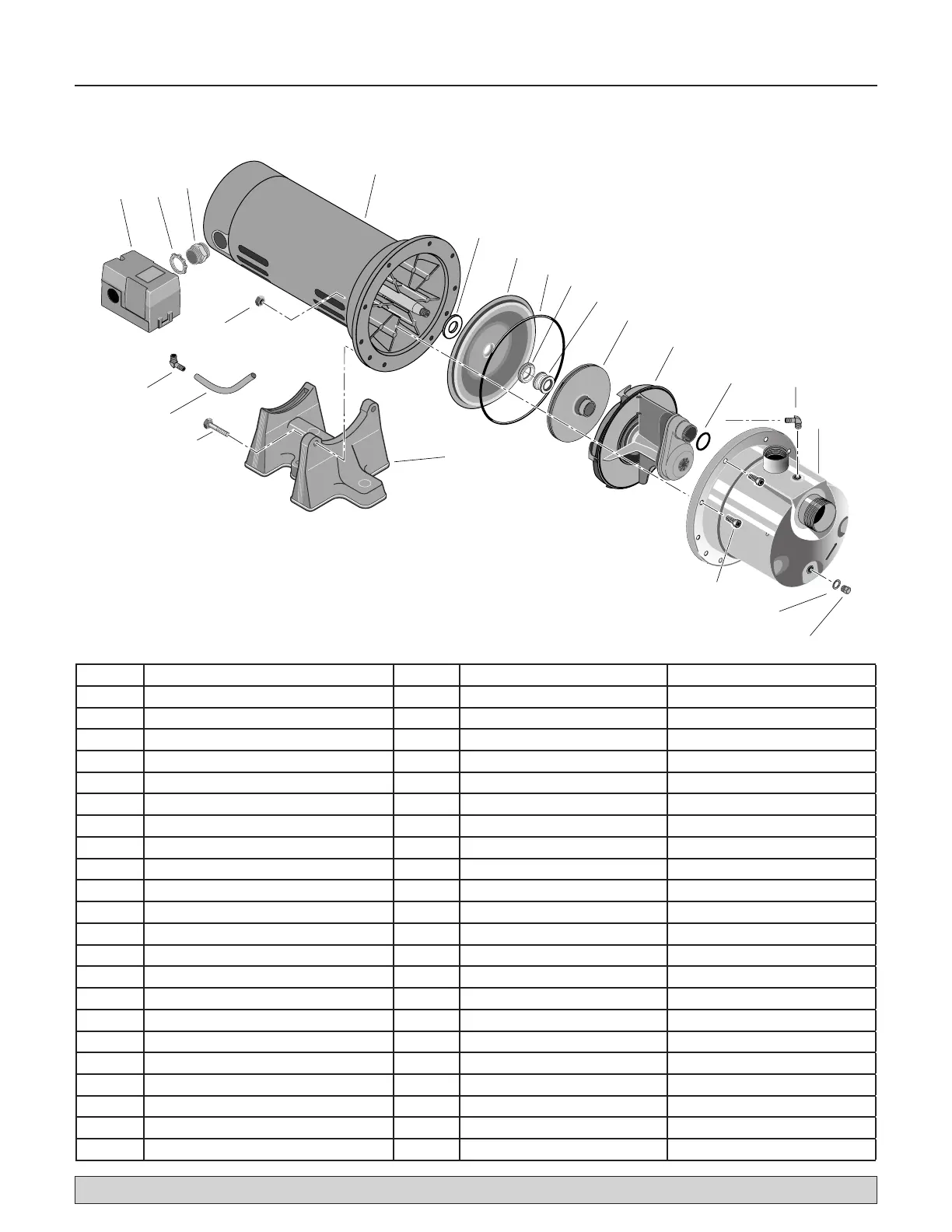

Key No. Part Description Qty. 4807S - 3/4 HP 4810S - 1 HP
1 Motor 1 J218-1006 J218-1007
2 Slinger 1 C69-7 C69-7
3 Seal Plate 1 784S0070 784S0070
4 O-Ring 1 111P0490 111P0490
5A Shaft Seal Seat 1 111P0510 111P0510
5B Shaft Seal Rotating 1 111P0500 111P0500
6 Impeller 1 101P1720 101P1730
7 Venturi 1 101P2900 101P2900
8 O-Ring 1 111P1100 111P1100
9 90° Hose Barb 1 171P4750T 171P4750T
10 Pump Body 1 723S0850 723S0850
11 Plug, Stainless Steel 1 121P2100 121P2100
12 Washer 1 111P0990 111P0990
13 Screw, Socket Head 8 121P0310 121P0310
14 Base 1 C4-42P C4-42P
15 Bolt 2 U30-73SS U30-73SS
16 Pressure Switch Tube 1 U37-677P U37-677P
17 1/4” NPT 90° Hose Barb 1 U111-212T U111-212T
18 Nut 8 U36-207SS U36-207SS
19 Pressure Switch 1 U217-1202 U217-1202
20 1/2” Locknut 1 U36-112ZP U36-112ZP
21 Connector 1 L43-5C L43-5C
4807S,
4810S
