Simmons SDHB2 - Rear Panel; Side Panel

SDHB2 User’s Manual
Hybrid electronic add-on pack

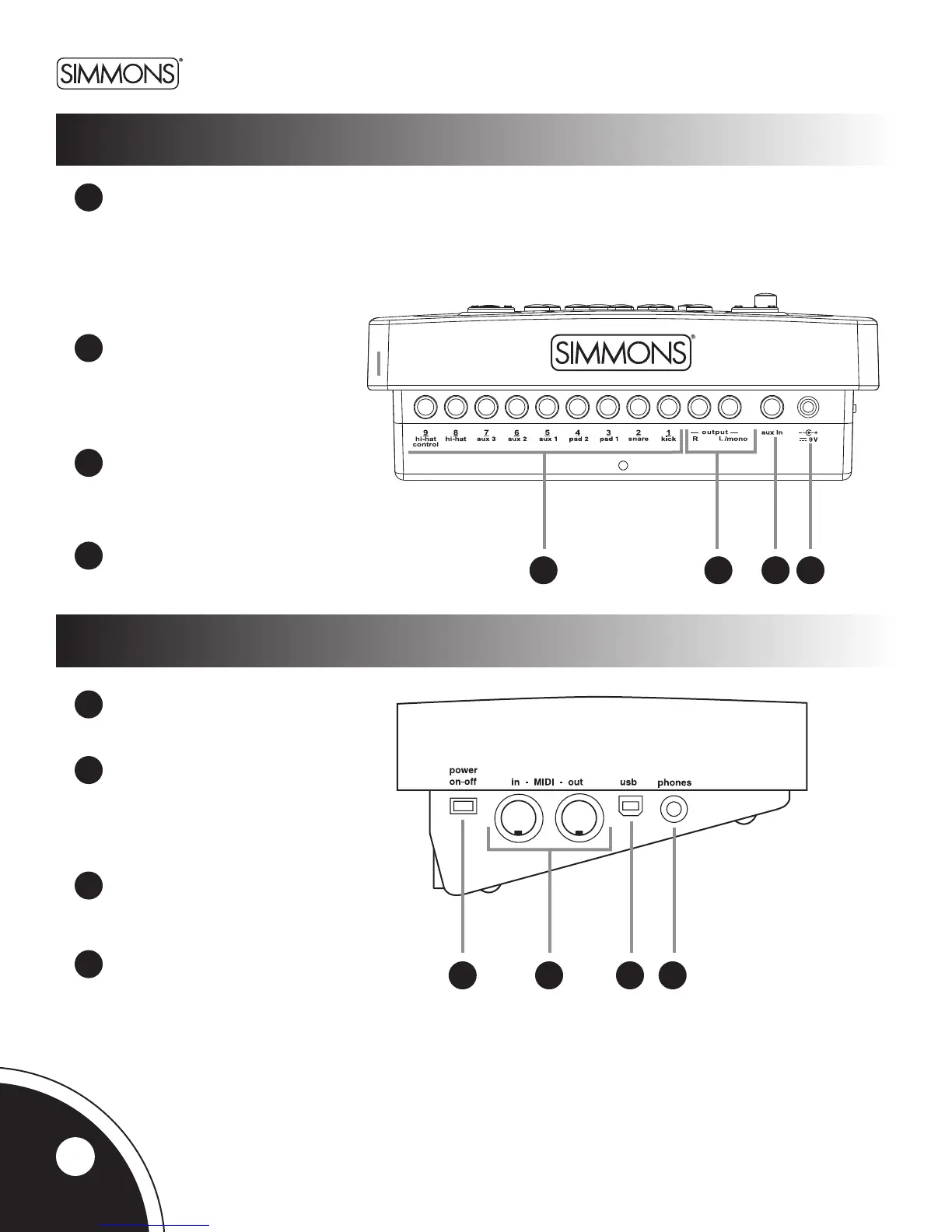

Rear panel
side panel
DC input
ConnectionfortheDC
9Vpoweradapter
17
14
Input jacks
Input connections for triggers, tom, aux pads, and hi-hat control pedal.
NotethatAux1isoptimizedforaSimmonsPro9”SingleZonePad(SDPSZP*).Aux2*andAux3*areoptimized
forSimmonsPro12”CymbalPads(SDPCMP*)TheHi-HatinputcanbeusedwiththeSimmonsHi-HatPedal(SDHHP*)
*Itemsoldseparately
15
Line output jacks
Stereo output connection to an
audio system or drum amplifier
suchastheSimmonsDA50or
DA200S.
16
AUX input jack
Thisstereoinputjackisusedfor
an external sound source, such
asanMP3orCDplayer.
21
Phone jack
Astereojackusedto
connect headphones.
19
MIDI IN and OUT
These ports allow communication with
otherproductsequippedwithaMIDI
interface.PleaseseetheMIDIsection
of this manual for details.
18
Power switch
Switch that turns power on and off.
20
USB port
Aportusedtoconnecttoacom-
puter.(MIDIIn/OutviaUSB)
18 19 20 21
14 15 16 17
6
