5. assembly InstructIons (cont.)
5.4 Assembly Steps
A

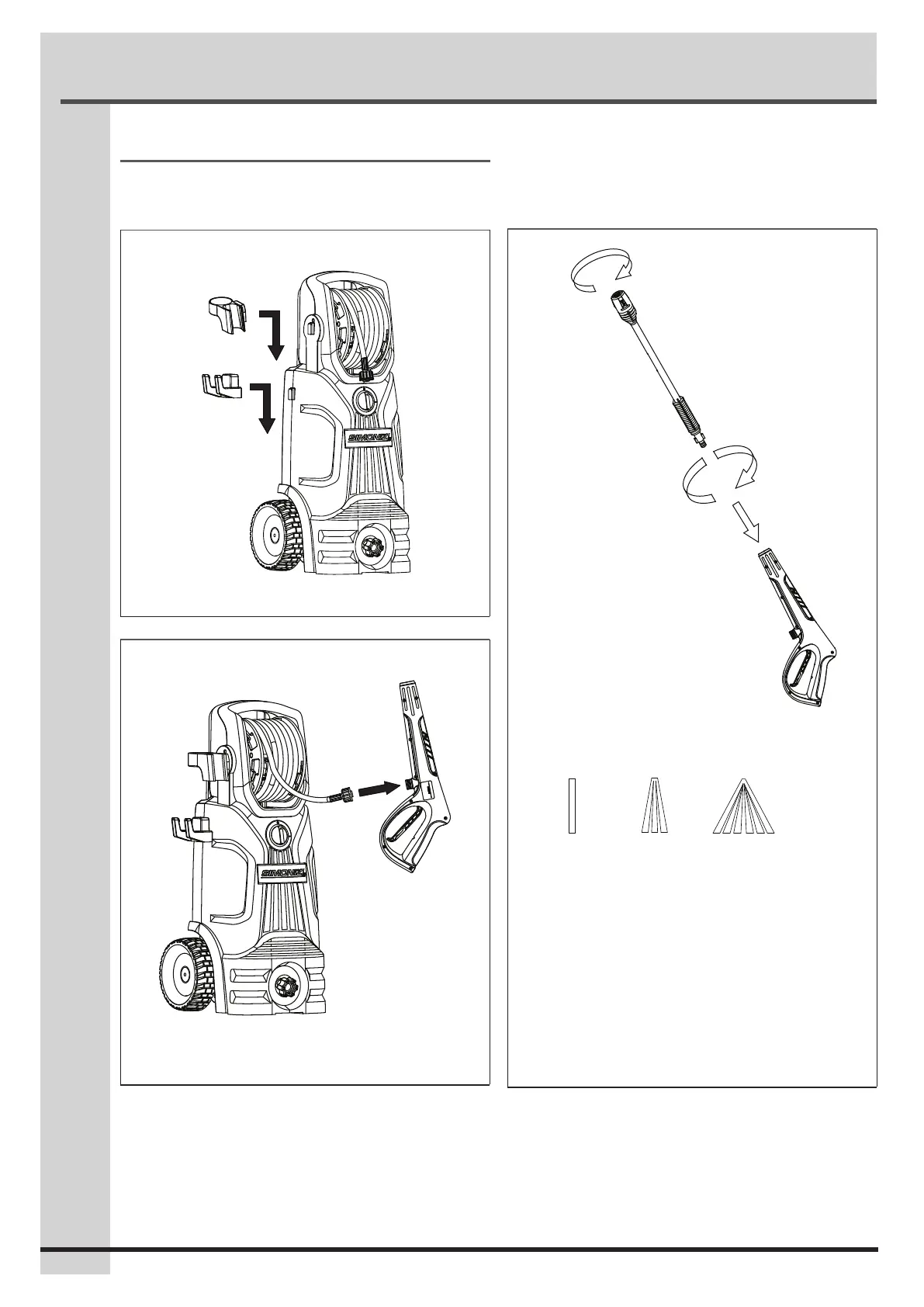

Assemble the gun holder and the bottle holder.
S
Attach the high-pressure hose from the hose reel to the gun
(hand tighten only).
Assembly Instructions
The spray nozzles on 3-in-1 wand are selected with the
desired spray pattern for the following purposes:
0º: For tough spots and grimes
(e.g., concrete surfaces);
15º: For medium and heavy duty cleaning
tasks (e.g., driveway);
40º: For light duty jobs and to apply
detergent (e.g., stucco walls, glossy
surfaces);
0º
15º
40º
