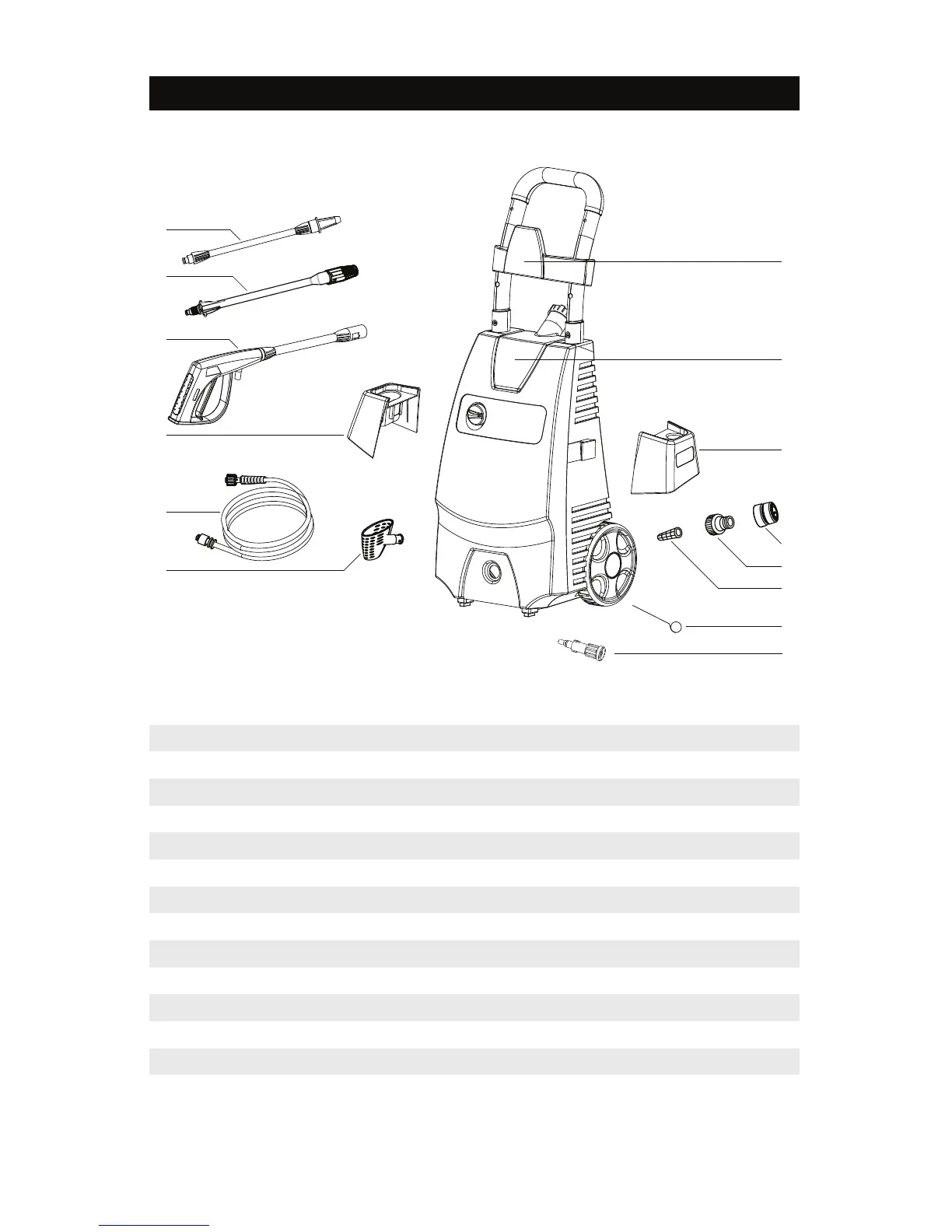

PARTS AND DIAGRAM LIST
Item No. Quantity Part Name Parts Number
A 1 Turbo wand ZE04-090-0004
B 1 Adjustable wand ZE04-090-0003
C 1 Gun assembly ZE03-090-0001
D 1 Left wing (Gun holder) ZE05-090-0007
E 1 High-pressure hose ZE05-090-0001
F 1 Gun holster ZE04-000-0001
G 1 Hose bracket ZE05-090-0000
H 1 Detergent bottle assembly ZE04-090-0010
J 1 Right wing (Wand holder) ZE05-090-0006
K1 1 Quick-connect coupling ZE01-050-0000
*K2 1 Inlet adaptor ZE01-050-0000
*L 1 Water filter ZE01-000-0003
M 1 Needle ZE01-900-0001
N 1 Universal Pressure Washer
Accessories Adaptor
ZE05-062-0002
A
G
Manual
C
J
F
L
M
B
H
D
E
K2
K1
* Inlet adaptor and Water filter come pre-attached on the water inlet, located on the back of
the pressure washer.
N
