Bagged parts
Engine frame and
wheel assembly
High pressure
hose
Chemical
hose
Spray gun
Multi-adjustable
spray wand

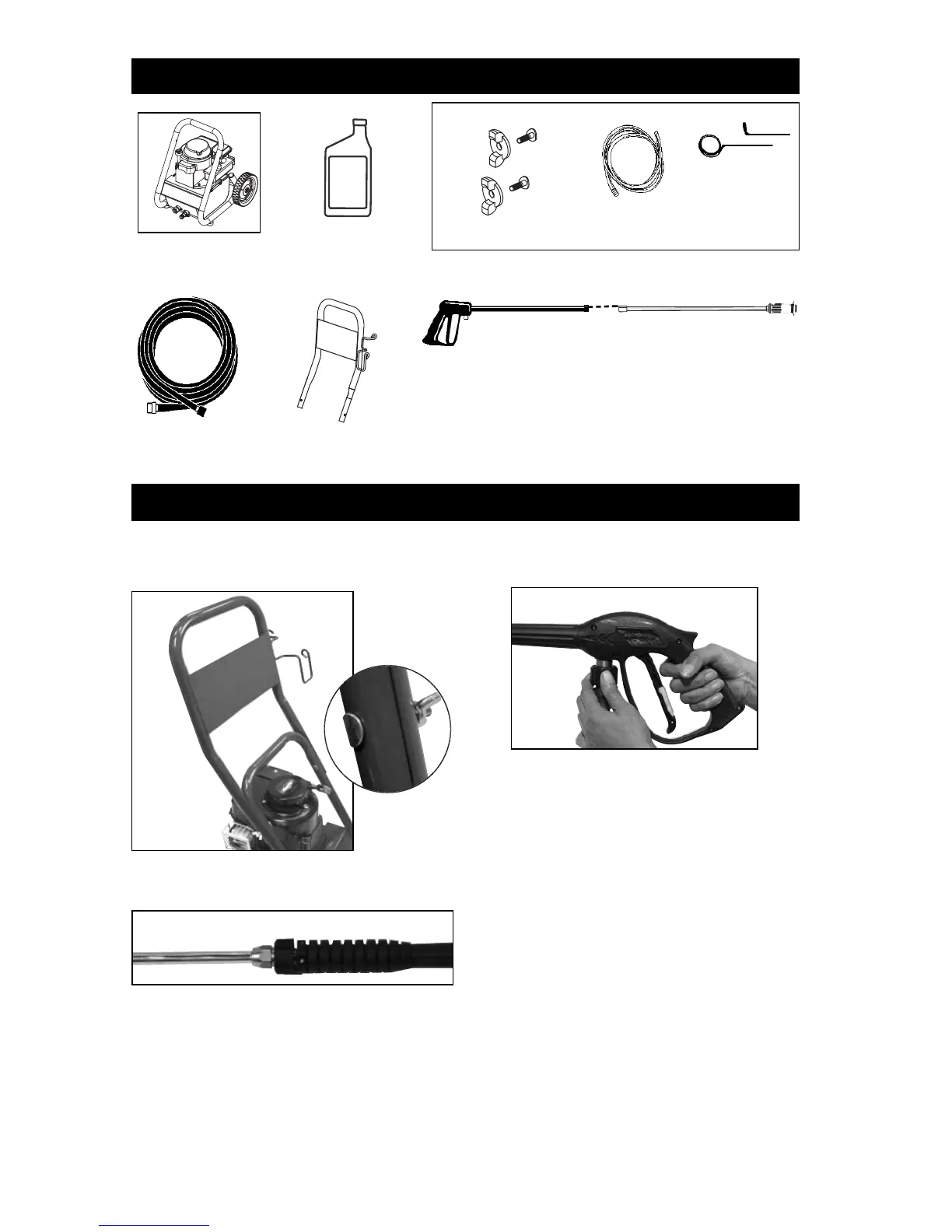

CARTON CONTENTS
2. Connect wand to gun. Tighten
securely. (see Fig. 2)
3. Attach high pressure hose to
gun. Tighten securely. (see Fig. 3)
ASSEMBLY INSTRUCTIONS
Hex key and
cleaning
tool
Knobs
Saddle
bolts
Engine
oil
1. Place handle assembly onto
frame and connect handle to
frame. (see Fig.1)
4. Add engine oil (supplied) to
engine. Refer to Engine Owner's
Manual (supplied by engine
manufacturer) for correct
procedure.
NOTE: There will be a slight amount of
oil in the engine from factory testing.
NOTE: The pump on this unit is
maintenance-free and requires no oil. If
there is a problem with the pump call
our toll free hotline: 1-866-293-WASH
(1866-293-9274)
Engine and owner's manaul not shown
Fig. 1
Fig. 2
Fig. 3
Handle
To Next Page
