OPERATING INSTRUCTIONS
BASIC ELEMENTS OF A
PRESSURE WASHER
High pressure pump: Increases the
pressure of the water supply.
Engine: Drives the high pressure
pump.
High pressure hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray gun: Connects with spray wand
to control water flow rate, direction,
and pressure.
Multi-adjustable spray wand: Allows
the user to use high or low pressure
and adjusts from a pencil stream (0°)
to a wide angle fan spray (40°). See
How To Use Wand instructions in this
section.

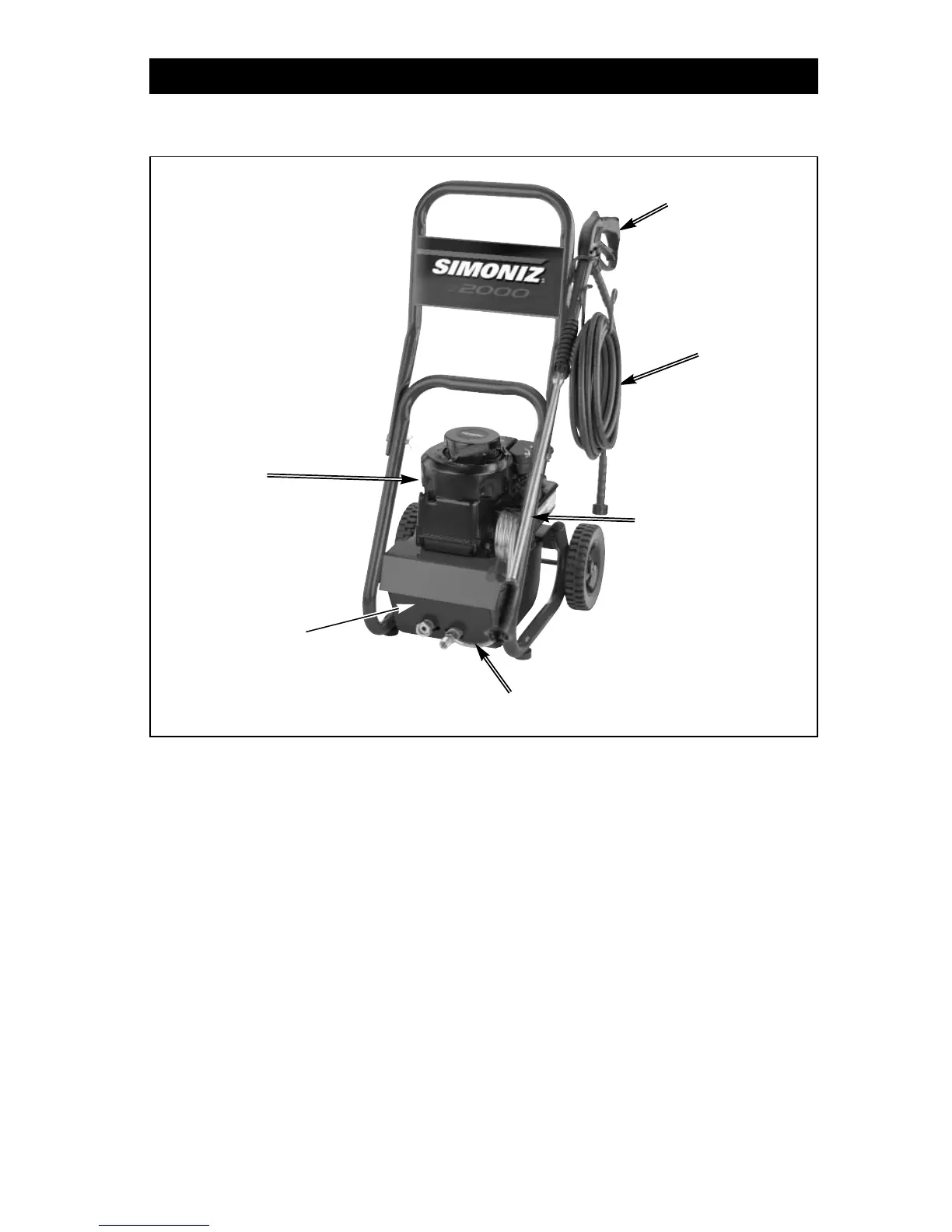

Compare the illustrations with your unit to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
Engine
High -
pressure
hose
Spray
Gun
Multi-adjustable
spray wand
Detergent
injection
hose
High pressure pump
Detergent injection hose: Feeds
cleaning agents into the pump to mix
with the water. See How To Apply
Chemicals/Cleaning Solvents
instructions in this section.
BASIC ELEMENTS OF AN
ENGINE
Refer to the engine manual for location
and operation of engine controls.
Primer button: Injects fuel directly into
the carburetor manifold for easier cold
engine starting.
Throttle control lever: Controls
engine speed.
Starter grip: Pulling starter grip
operates recoil starter to crank engine.
Fig. 4
