Simplex 4100ES Operating Instructions

6 S4100-0038-14 5/2018
On
Off
Auto
On
Off
Auto
On
Off
Auto
On
Off
Auto
On
Off
Auto
On
Off
Auto
On
Off
Auto
On
Off
Auto
HOA Modules, 8 Controls (3 switches each), 24 LEDs:
4100-1286, with labeled switches (shown)
4100-1295, with unlabeled switches (not shown)
4100-1287
24 Switches, 24 LEDs
Visible area
8 1/4" H, 2" W
(210 mm x 51 mm)
Green LED (Auto)
Red LEDs
Custom
label area
Label insert
Primary function labels
One switch
per function
One switch per
control, on/off
Red LED (Off)
Green LED (On)
Fan
On
Fan
Off
16 Switches
with 16 LEDs:
4100-1278, R-Y
4100-1285, R
8 Switches
with 8 LEDs:
4100-1280, R
4100-1281, Y
East
Wing
Control
West
Wing
South
Wing
North
Wing
Annex
Garage
Basement
Boiler
Room
8 Switches
with 16 LEDs:
4100-1282, R/Y
4100-1283, Y/Y
4100-1284, R/G
4100-1296, G/Y
Additional
function labels
Primary
function label
LEDs
Switch
Visible area
8-1/4" H,
2" W
(210 mm
x 51 mm)
Switches
LED/Switch Modules
LED Color Legend:
Red, Yellow, Green;
R/Y = Red on top,
Yellow on bottom;
R-Y = Red on left,
Yellow on right
LED Modules
8 LEDs:
4100-1276, R
(pluggable LEDs)
16 LEDs:
4100-1277, R/Y
(pluggable LEDs)
Designates area
for each column of
switches and LEDs
16 Switches
with 16 LEDs:
4100-1300, R/Y
(pluggable LEDs)
LEDs
Custom
label area
Label insert

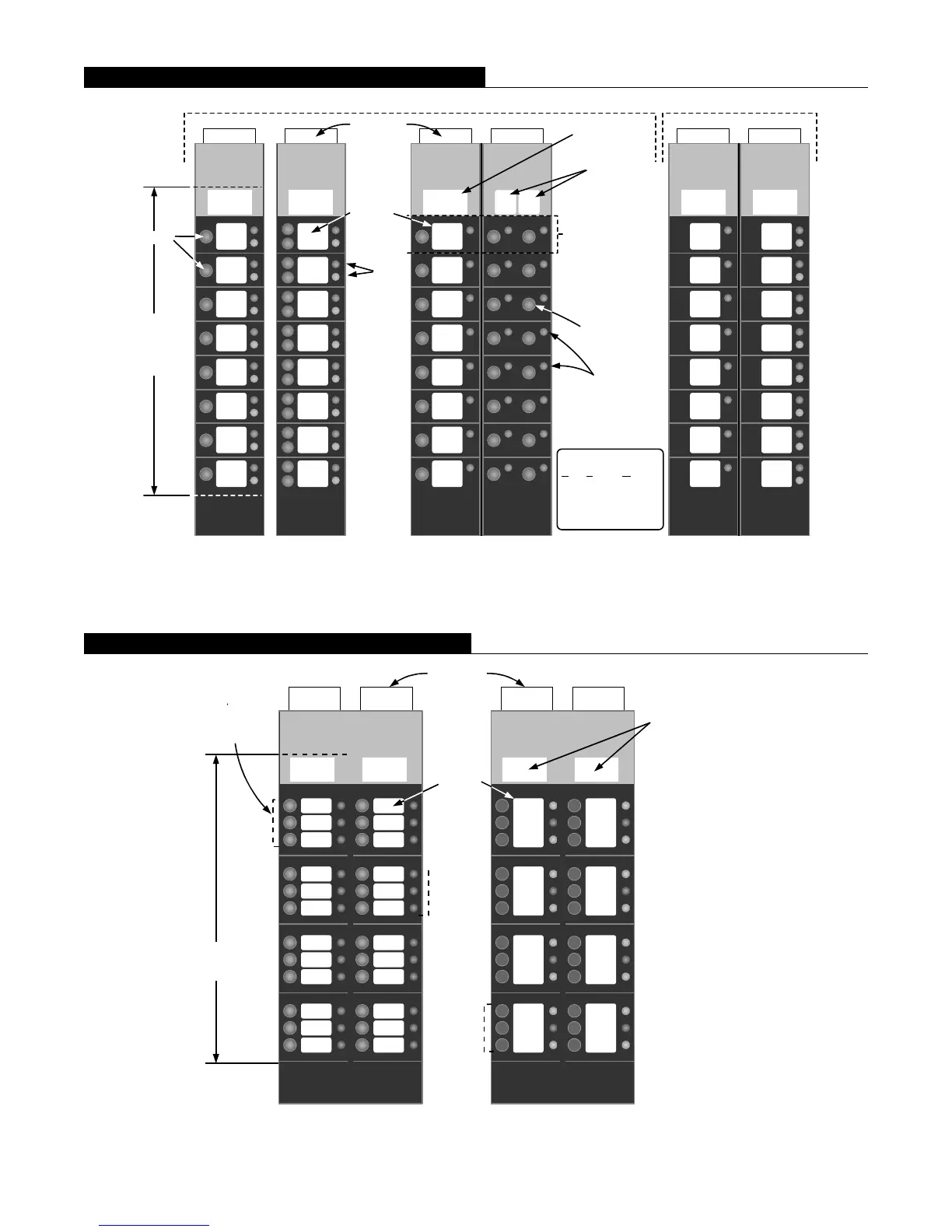

Dual Slot LED/Switch Module Detail Reference
Single Slot LED/Switch Module Detail Reference

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
