Door thickness
1-3/8"(35 mm)
Exposed cabinet for
semi-flush mounting
1-3/8" (35 mm)
minimum
Exposed door and
cabinet for semi-
flush mounting
2-3/4" (70 mm)
minimum
24" (610 mm)
8-3/8"
(213 mm)
6-29/32"
(175 mm)
4" stud
6" stud
Knockout screw/nail holes
(for semi-flush mounting)
Stud alignment
markers, each side
Wall board reference
for semi-flush
mounting, 6" stud
Optional semi-flush
trim kit reference

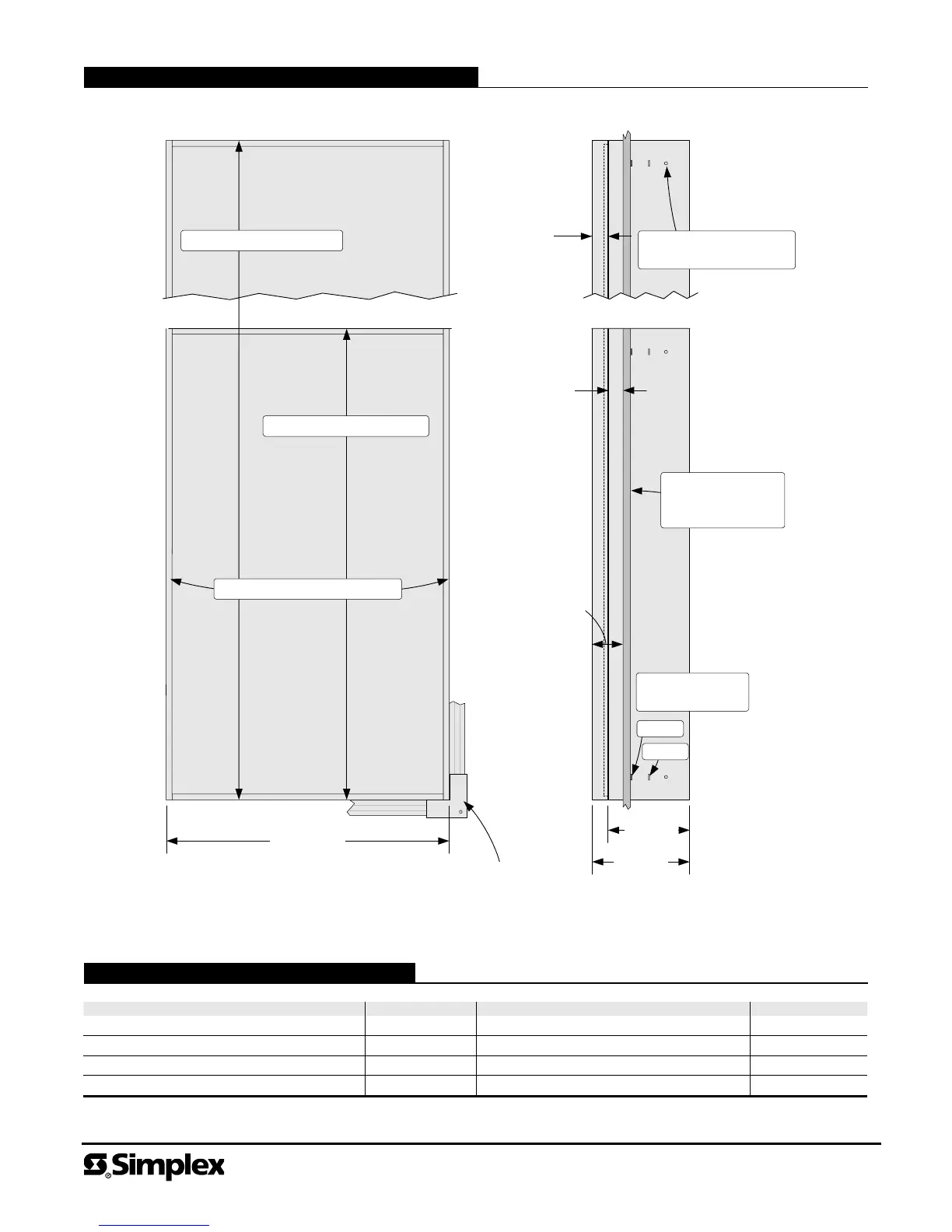

Front view, box outline without door Side view with door attached
2 Bay height 40" (1016 mm)
Doors can be hinged left or right
3 Bay height 56" (1422 mm)
Subject Data Sheet Subject Data Sheet
Basic Panel Modules and Accessories S4100-0031 MINIPLEX
®
Transponders S4100-0035
LED/Switch Modules S4100-0032 Enclosures S4100-0037
Master Clock Interface Module S4100-0033 Remote Annunciators S4100-0038
4100U Audio/Phone Modules S4100-0034 Remote Battery Charger S4081-0002
Tyco Safety Products Westminster • Westminster, MA • 01441-0001 • USA S4100-0036-4 10/2003
www.tycosafetyproducts-usa-wm.com
© 2003 Tyco Safety Products Westminster. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Wall Mounted Enclosure Installation Reference
NOTE: A system ground must be provided for Earth Detection and transient protection devices. This connection
shall be made to an approved, dedicated Earth connection per NFPA 70, Article 250, and NFPA 780.
Additional 4100U Data Sheet Reference
