DAY KEY [4] - Used for setting the day in the SET DAY and PROGRAM MODES. Also used for entering the
SET DAY MODE.
3.0 INSTALLATION
The 6500 should be securely mounted to a suitable mounting panel or surface according to any local codes
using the mounting holes on the back panel. It has a mounting weight of 15 pounds. Be sure the equipment is
properly grounded to the facilities ground connection.
ELECTRICAL CONNECTIONS

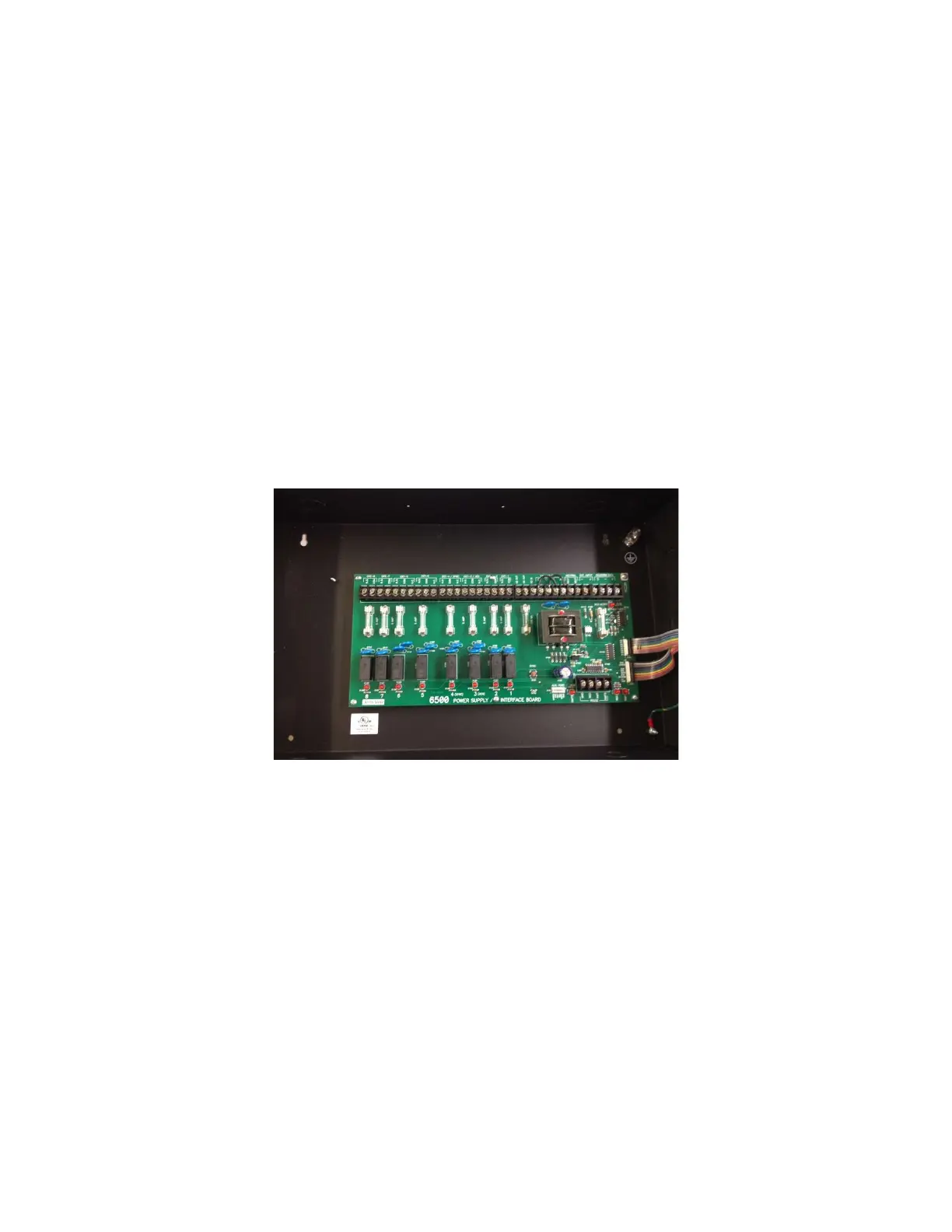

All wiring connections including the incoming AC power line connections are made at the clearly marked terminal
blocks located on the PCB Assembly inside the 6500 enclosure.
The RS232 I/O terminals provide a computer interface for connecting a PC to program the master clock. The
Time Code terminals provide user specified time code outputs for Secondary Clock Wiring. See the Wiring
Diagrams at the back of this manual for more detail.
4.0 GETTING STARTED
4.1 THE AUTO PROMPT DISPLAY
9
