Controller Set Up- 11
IV-
B. SETUP

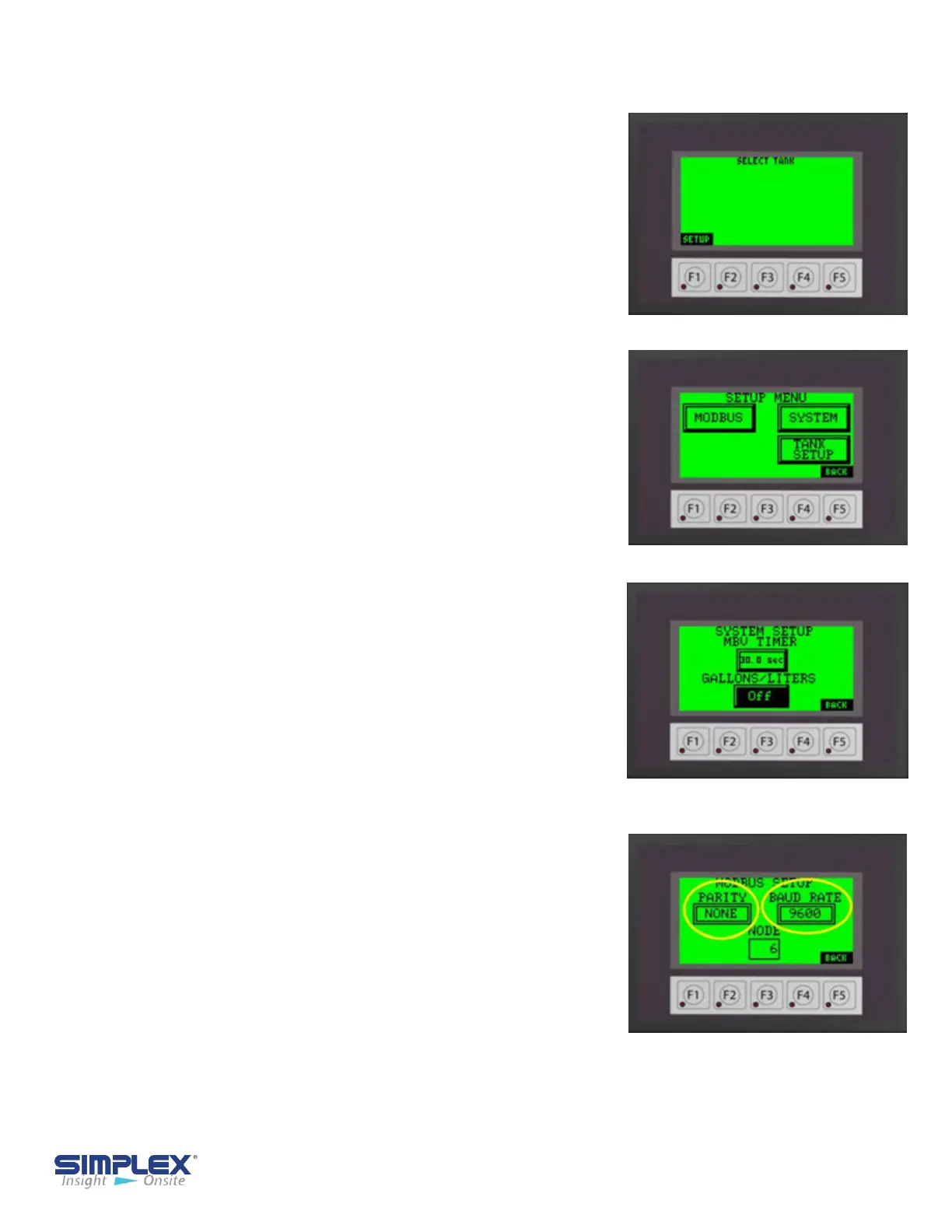

Startup Screen
Setup Menu
System Setup
Controller Setup
After the AFC panel has been wired completely
and all connections confirmed, flip the Control
Power switch to ON to apply power
to the panel.
On first power up the touch screen will be mostly
blank as seen on Startup Screen. Below the
screen are 5 function keys used in
conjunction with the information on the screen.
On the Startup Screen, the screen shows
SETUP above the "F1" function key. In this
instance, the "F1" function key would take you to
the setup menu.
From the setup screen you may choose to
configure the MODBUS setting, SYSTEM
settings, or enter the TANK SETUP by pressing
the soft keys on the touch screen. (See Setup
Menu)
Please refer to Appendix B for 7 inch touch screen
examples.
System Setup
If MBVs are installed, you may enter the delay
time in seconds for the valve fail timer. You may
also select to display the tank level in either
GALLONS or LITERS. Tank level in percent will
always be displayed regardless if gallons or liters
is selected.
(See System Setup)
Modbus Setup
Each unit is capable of modbus communication via
RS485. You may choose the PARITY, BAUD
RATE, and NODE address for the unit. The
following information is preset from the factory and
may NOT be changed via the touch screen.
PROTOCOL: Modbus
HEX ECHO: 2-Wire
STOP BITS: 1
Please refer to the Wiring Diagram in the provided
drawing packet for field communication connections.
For TCP/IP or Bacnet communication settings, please see the MODBUS POINTS
LIST in the drawing packet shipped with the unit.
Modbus Settings
To Next Page
