IV-C. OPERATING INSTRUCTIONS
Tank Select

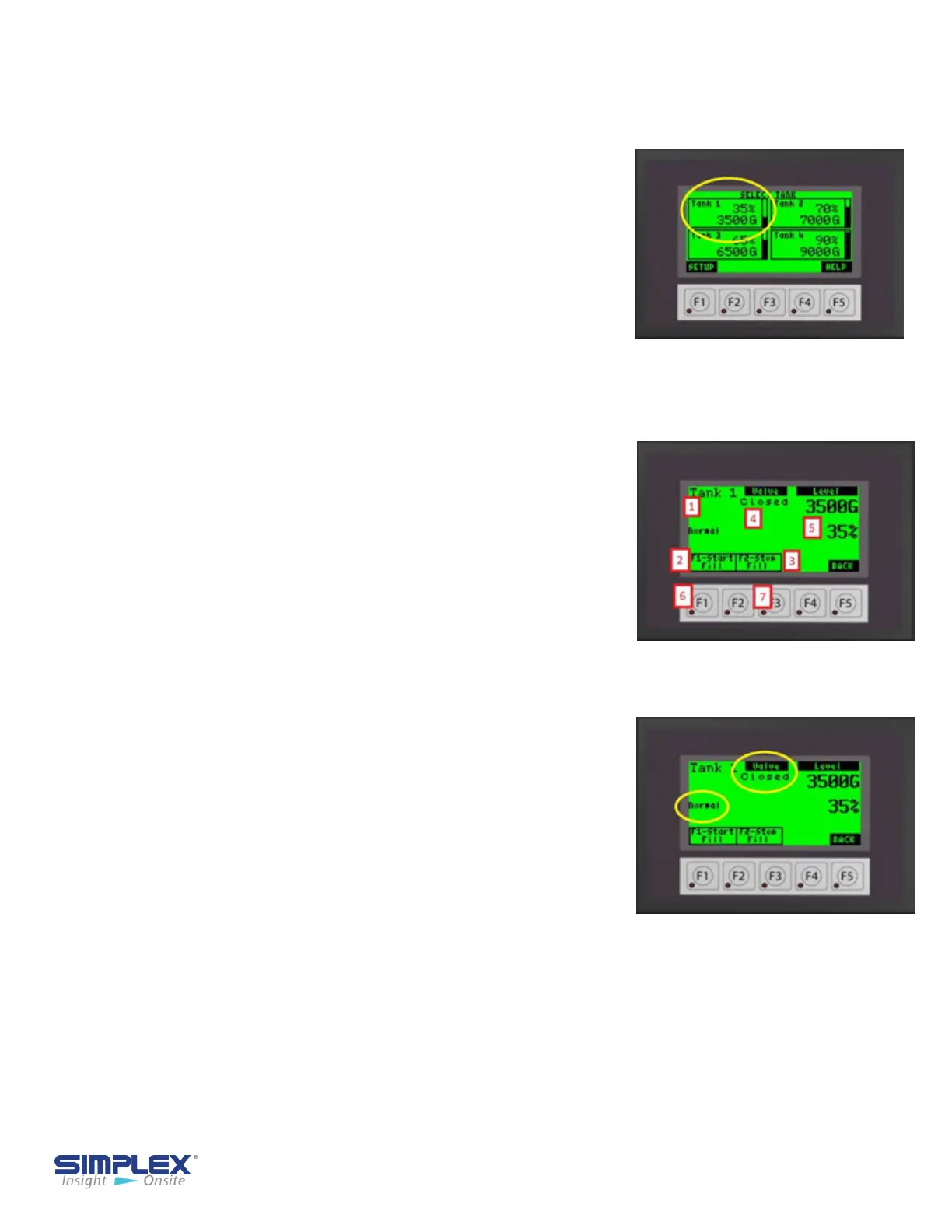

Tank Detail Screen
1. Current tank status
2. Start Fill HMI soft key
3. Stop Fill HMI soft key
4. Tank valve status
. If used with a Smart Pump,
the on-board pump status will be displayed here
as well.
5. Current tank level in percent and gallons/liters
6. Start Fill Function Key F1
7. Stop Fill
Function Key F2
(See Tank Detail Screen
).
NOTE: Function keys are not used with the
7 inch touch screen option.
Start Fill
Order of Operation
To fill a tank in the system, you must place the
"
Control Power" switch below the screen in the
ON position. This will allow certain option to
appear on the screen and powers the motorized
ball valves.
Select the appropriate tank by pressing the level
indicator for the required tank. This will take you
to the individual tank detail screen (See
Tank
Select
)
.
On this screen you will find the current tank status
and fill controls.
On the selected tank detail screen, you will see that
the tank status is normal and the valve is "Closed"
(Start Fill).
To start the fill process, first connect the truck
ground cable to the ground stud. Unlock the fill box
and connect the truck hose to the hose coupling. If
used with a Smart Pump, open the valve on the
truck at this time. Press the "Start Fill
" button or
F1. The fill valve will open for the selected tank.
The valve status will change from "Closed" to
"Travel" to "Opened". If used used with a Smart
Pump
