Compact Auto FuelPort Installation - 6
III. COMPACT AUTOMATIC FUELPORT
III-A. INSTALLATION
1. Welded to a fuel tank
2. Attached to a post
3. Placed in a stand
4. Flush mounted into a wall -
See AFC Controller

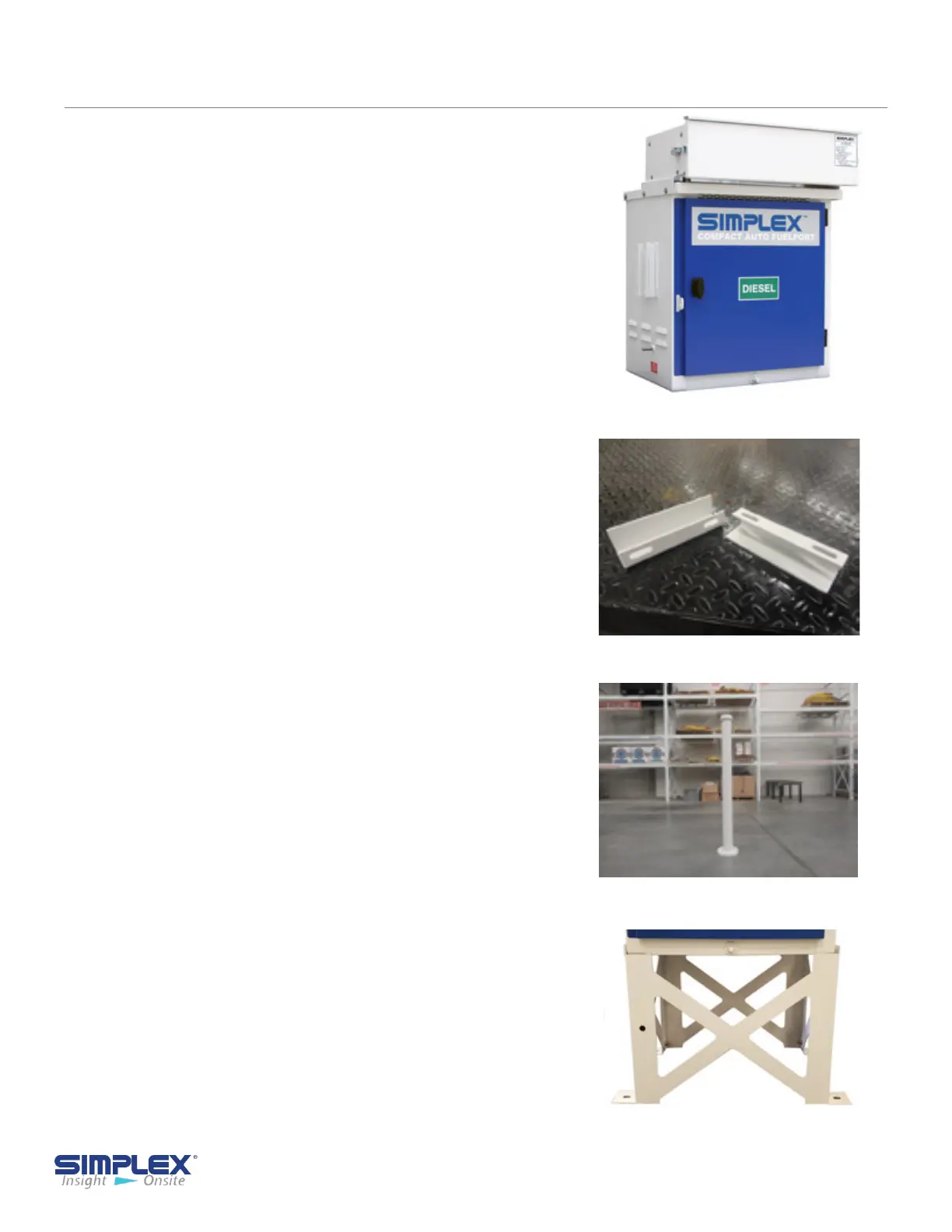

The Compact Automatic Fuelport
can be installed in three ways:
Weld Brackets
Post
Stand
Welding FuelPort to Tank:
You can mount the FuelPort directly on a
storage tank by welding two mounting
brackets to the tank and bolting the
FuelPort to them. (See Weld Brackets)
Follow all necessary safety procedures
when welding the brackets to your tank.
Simplex is not responsible for damages or
injuries sustained due to improper safety
precautions.
Attaching CAFP to Post:
With the post mounting option, the CAFP
can be attached to a free-standing post.
(See Post)
To do so, attach the post to a concrete pad
and use the supplied U-bolt post brackets
to attach the CAFP to it.
Attaching CAFP to Stand:
To affix the CAFP to a stand, simply attach
the stand to a concrete pad using the pre
drilled holes in the stand’s feet, then affix
the CAFP to the stand via the mounting
holes on the front. (See Stand)
Installing Cable Access:
To bring cabling into the CAFP, remove
one of the six knock outs located along
the right and left vertical sides of the back
of the controller housing and install a 1/2"
3R-rated conduit connector for access.
