Setting the Meter - 7
Installing Control Power:
Please see wiring diagram in the drawing packet
shipped with the unit.

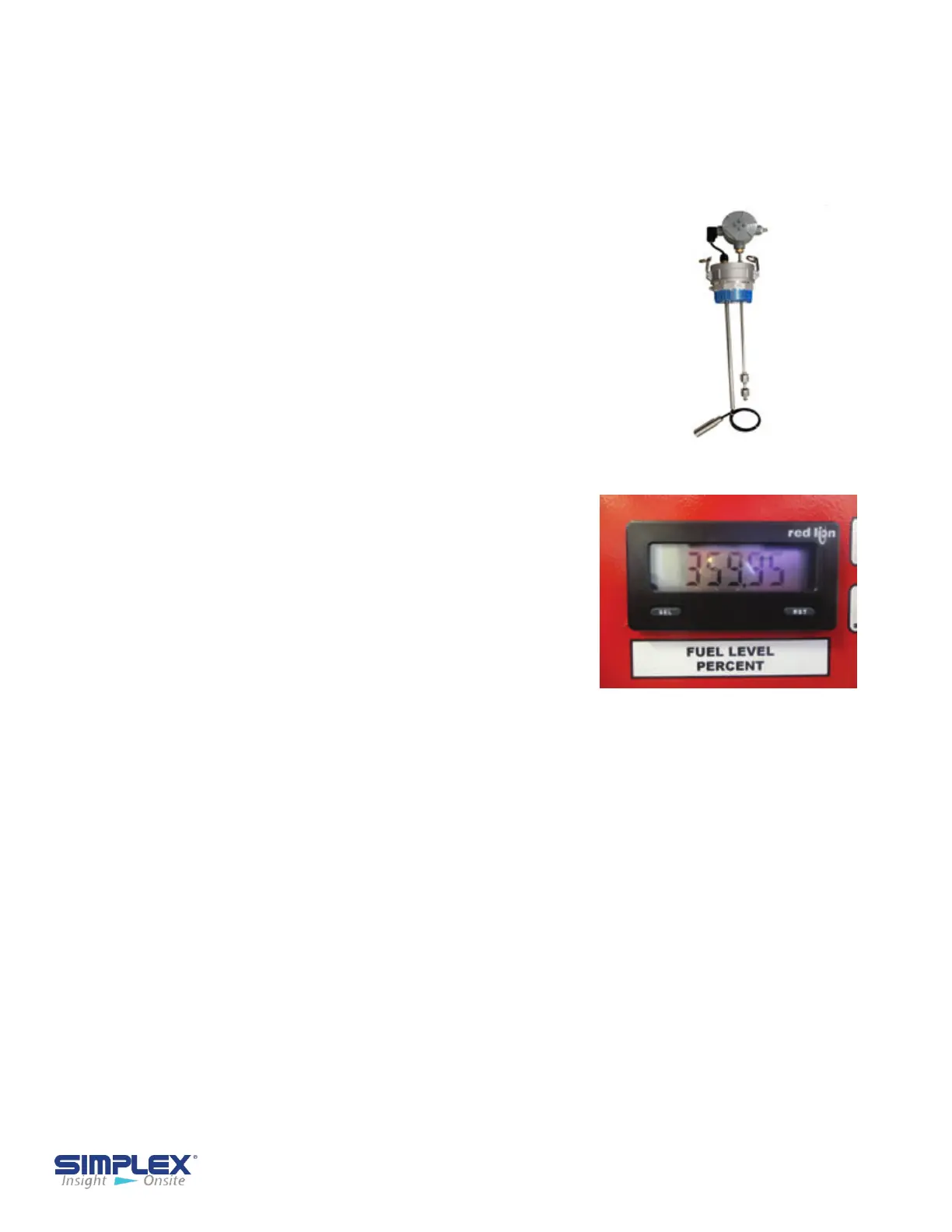

Float Assembly
Installing Float Assembly:
To install the float assembly, push the
latch handles on the assembly down and
slide the coupler off.
Apply an appropriate thread-lock to the
threads on the coupler and screw it into
the appropriate tank port.
Slide the assembly into the coupler and
lift the latching arms until the assembly is
locked into place.
Please see wiring diagram in the drawing
packet shipped with the unit.:
Entering the Setup Menu:
There are a number of option for configuring
the meter, but only two concern us: dSP 2,
which allows you to see approximately how
many gallons remain in your tank, rather than
a percentage; and
OFSEt, which calibrates the meter for greater accuracy.
To enter the meter's setup menu, press and hold the SEL button for one
second. The screen will begin alternating between Pro and NO. Press RST
while it shows Pro and you will be in the setup menu.
From here, pressing RST will cycle through five options, but all the setting
you will need to change are in the first, 1-INP. Press SEL to enter the
category, and the meter will display rANGE.
Changing the Display From Percentage to Gallons:
When the meter display rANGE, press SEL nine times. The meter should
now read dSP 2. Press RST to change the value, which should initially be
100. Press RST to increase the flashing digit and RST to move one digit
left. Change the value to the maximum capacity of your tank, measure in
gallons. Press and hold SEL to return to the menu, then press SEL
three more times until NO is displayed. The meter should exit the menu
on its own after about a second.
Meter
III-B. SETTING UP THE METER
