Simplex Full-Size Fuelport User Manual

SmartPump Startup - 22
1. Turn off the control power circuit breaker.
2. Remove the shaft coupler guard
(if present) from the pump (see
Rotation Sticker).
3. T
urn on the control power circuit breaker.
4. Press the Start Fill button. The pump should start and run.
5. The shaft should rotate in the direction indicated on the sticker
on the motor (See Rotation Sticker).
6. If rotation is incorrect:
a. Press the Stop Fill
button.
b. Turn off the control
power circuit breaker.
c.
d.
e.
Open
the Control Panel
door to access the
control compartment.
Locate the overload relay
(See Overload Relay)
On either side of the
relay, reverse the
black and red wires:
connect the red wire
to line one and the
black wire to line two.
f. Clos
e the Control
Pane door and repeat steps
3 through 5.
7. Turn the control power circuit breaker off.
8. Reinstall the shaft guard.
9. Connect the
outlet of the SmartPump to the
storage tank(s) using 3-inch steel or black iron
pipe.

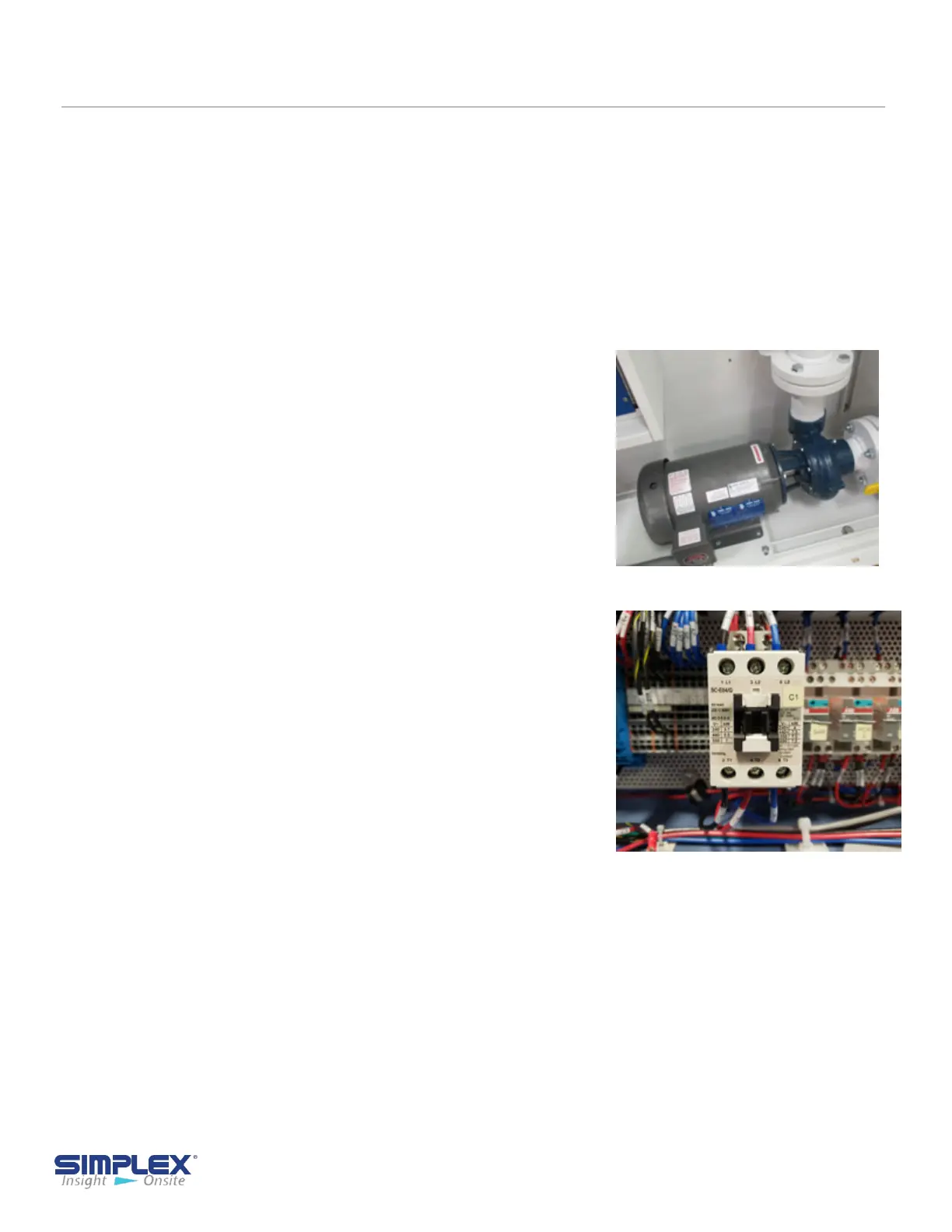

CHECKING PUMP ROTATION
Rotation Sticker
Overload Relay
APPENDIX C - SMARTPUMP STARTUP
