Compact Auto FuelPort Operating Instructions - 8
Open Fill Valve
If 95% level is
reached,
audible and
visual alarms
are activated.
The Compact
Automatic
Fuel Port
valve closes
completely
and cannot
be reopened
until the level
falls below
95% level.
Calibrating the Meter:
Once the tank is filled to a known quantity of fuel, it may be necessary to
calibrate the meter by changing the meters offset value.
Enter the setup menu as described above. When the meter displays
rANGE, press SEL twice until it displays OFSet. Press RST to change the
setting to the value that will adjust the reading to match the amount of fuel
in your tank. If you need to enter a negative value, press SEL until the left-
most digit is flashing, then press RST
until a negative sign appears.
When you have entered a value, press and hold SEL to return to the menu,
then press SEL ten more times until NO is displayed. The meter should
exit the menu on it's own after about a second.
If the meter does not display the correct value, repeat the process to enter
a new offset until the meter is accurate.
III-C. OPERATING INSTRUCTIONS
2. Unlock the fill box.
3. Connect the delivery hose to the coupling in the
CAFP.(See Control Power)
4. Open the valve on the truck.

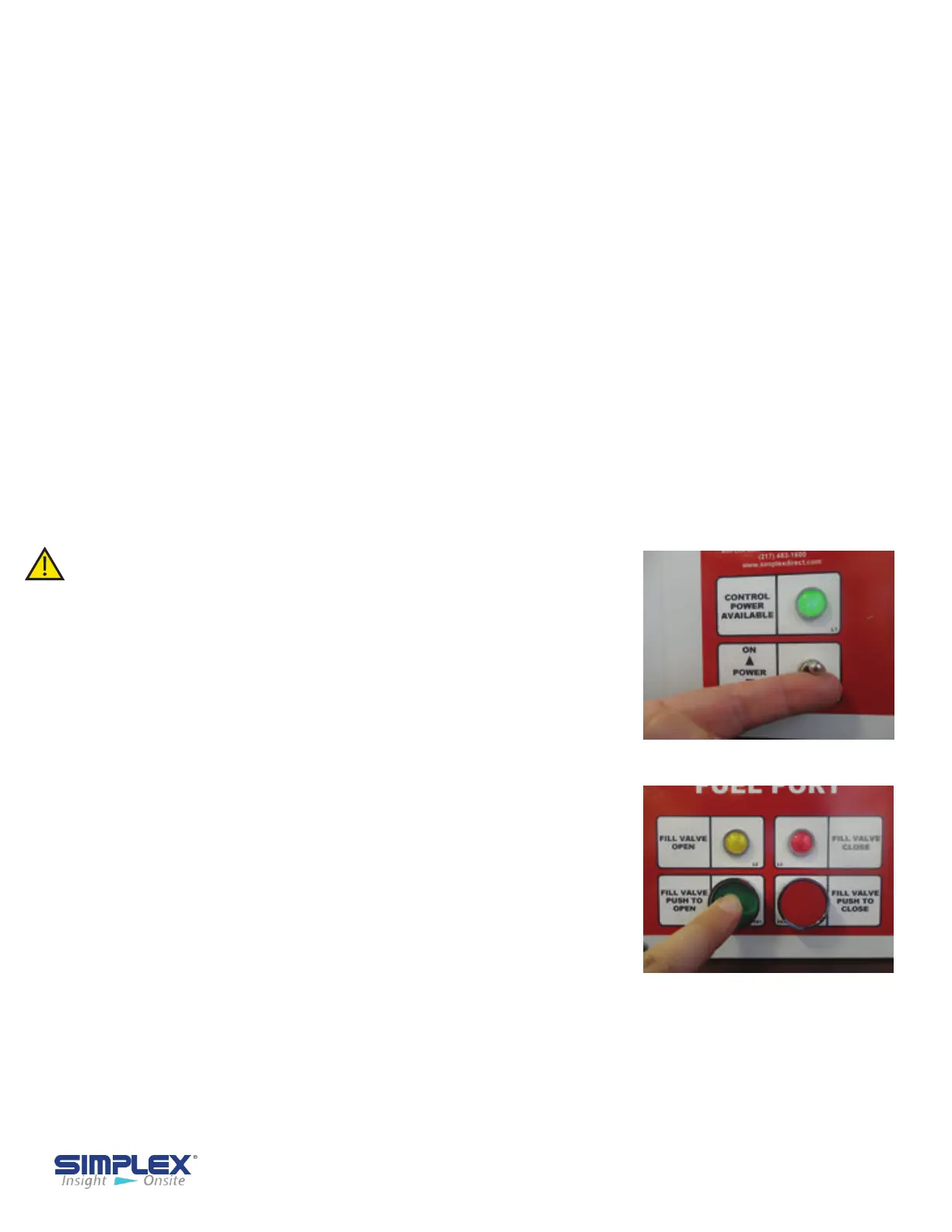

5. Turn the Control Power Switch on and press the
Fill Valve Open pushbutton.(See Open Fill Valve )
6. The valve opens.
7. Start the delivery pump on the truck.
8. Fuel is delivered to the tank.
9. The delivery may be stopped at anytime by
pressing the Close Fill Valve button and proceeding
to step #13.
10. At the 90%(typical) fuel level, audible and visual
alarms are activated and the valve will close partially
to restrict flow.
11. Stop the delivery pump on the truck.
12. Close the valve on the truck.
13. Drain the delivery hose.
14. Disconnect the delivery hose from the CAFP.
15. Turn Control Power off.
16. Close and Lock the Fill Box.
17. Fuel Delivery is completed
18. Disconnect the ground cable from the ground stud.
1. Connect the truck ground cable to the stud
provided on the CAFP.
